December, 2018

SCA51

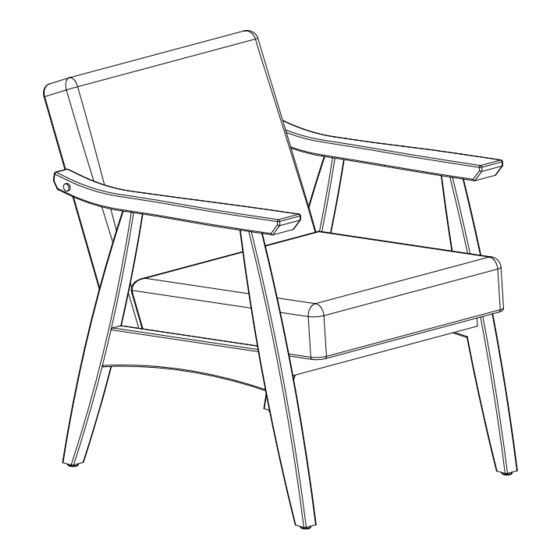

OSCAR ARM CHAIR

Assembly Instructions - Important:

Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when

assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or

information on other products, please visit our website: www.officestar.net or call or write us.

Table of Contents

Do you have a question about the AVENUE SIX OSCAR SCA51 and is the answer not in the manual?

Page 1 December, 2018 SCA51 OSCAR ARM CHAIR Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or information on other products, please visit our website: www.officestar.net or call or write us.
Page 2 LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase.
Page 3 PARTS (A) Back Cushion (1 PC) (B) Seat Cushion (1 PC) (C) Right Arm Frame (1 PC) (D) Left Arm Frame (1 PC) (E) Seat Frame (1 PC)
Page 4 HARDWARE LIST DRAWING DESCRIPTION QUANTITY Short Bolt 4 PCS + 1 EXTRA Long Bolt 4 PCS + 1 EXTRA Screw 6 PCS + 1 EXTRA Flat Washer 6 PCS + 1 EXTRA Lock Washer 6 PCS + 1 EXTRA Wood Plug 2 PCS + 1 EXTRA Allen Wrench 1 PC...
Page 5 STEP 1 DO NOT FULLY TIGHTEN BOLTS (1). STEP 2 DO NOT FULLY TIGHTEN BOLTS (2).
Page 6 STEP 3 DO NOT FULLY TIGHTEN BOLTS (1). STEP 4 APPLY FIRM PRESSURE AND FULLY TIGHTEN ALL BOLTS.
Page 7 STEP 5 FULLY TIGHTEN ALL SCREWS AND BOLTS.
