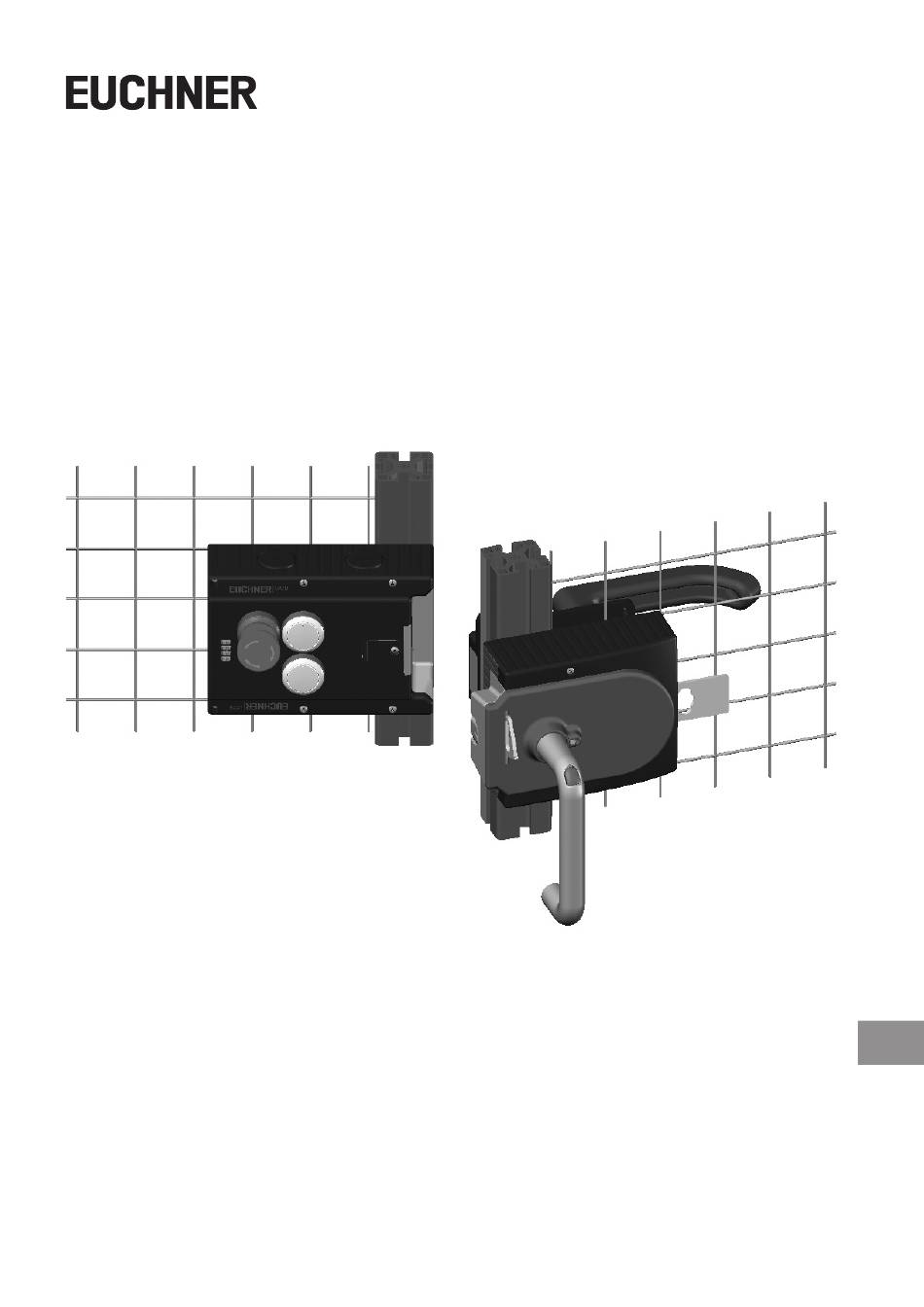

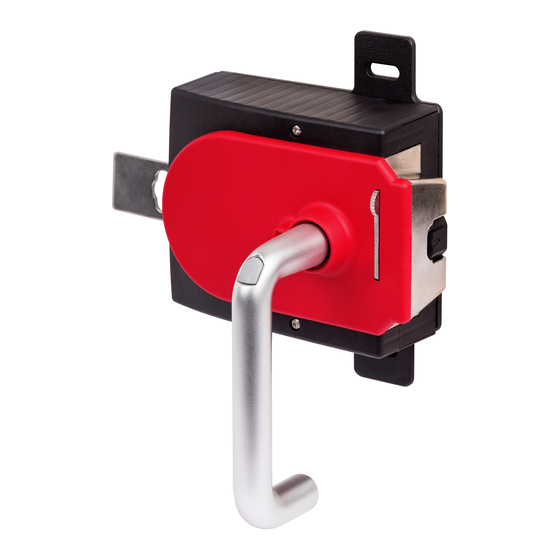

- Page 1 Operating Instructions Safety Systems MGB-L0…-AR.-… MGB-L0…-AP.-…...
-
Page 2: Table Of Contents
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… Contents About this document ..................... 4 1.1. Scope ............................4 1.1.1. Notes on other product versions ..................4 1.2. Target group ..........................4 1.3. Key to symbols ..........................4 1.4. Supplementary documents ......................4 Correct use ......................5 2.1. - Page 3 Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 11.10. Operation in an AR switch chain .....................25 11.11. Information on operation in an AR switch chain ................26 11.11.1. System times ........................26 11.11.2. Wiring an AR switch chain ....................26 11.11.3. Number of devices in switch chains .................26 11.11.4.
-
Page 4: About This Document
This section applies on operation as MGB-AP This section applies on operation as MGB-AR In this section, attention must be paid to the DIP switch settings Printed document Document is available for download at www.euchner.com Safety precautions Danger of death or severe injuries DANGER... -
Page 5: Correct Use
Always read all documents to gain a complete overview of safe installation, setup and use of the device. The documents can be downloaded from www.euchner.com. For this purpose, enter the doc. no. or the order number for the device in the search box. -
Page 6: Main Differences Between Mgb-Ap And Mgb-Ar
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… Table 1: Possible combinations for MGB components Handle module Evaluation unit MGB-H-... from V2.0.0 MGB…AR/AP from V3.0.0 Key to symbols Combination possible 2.1. Main differences between MGB-AP and MGB-AR System family Symbol Optimized for operation in safe control systems. MGB-AP If series connection is not necessary, the number of terminals required can be reduced using this system family. -
Page 7: General Safety Precautions
Prior to use, read the operating instructions and keep these in a safe place. Ensure the operating instructions are always available during mounting, setup and servicing. EUCHNER cannot provide any warranty in relation to the readability of the CD for the storage period required. For this reason you should archive a printed copy of the operating instructions. -
Page 8: Function
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 6. Function Together with a handle module, the interlocking module makes it possible to monitor the position of moving guards. The combination also serves as a mechanical door stop at the same time. The following switch-on condition applies to the safety outputs FO1A and FO1B (also see chapters 14.2. -
Page 9: System Overview
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 7. System overview 7.1. Interlocking module MGB-L0-… Key: Cover for auxiliary release • LED indicator • DIP switch • Terminals X2 -X5 • Depending on version: • Cable entry M20x1.5 or plug connector Internal reset •... -
Page 10: Dimension Drawing
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… (translation of the original operating instructions) 2112657-16-09/23... -
Page 11: Lockout Mechanism
Adjust escape release axis at right angles to the handle module. See Fig. 4 and Fig. 7. Ì 7.6.1. Preparing escape release (also see Fig. 6: Preparing escape release on page 12) Profile width Length required for actuation Which EUCHNER parts are required? Necessary work steps axis Without plates With mounting plates... - Page 12 Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… Example without mounting plates: Actuation axis Protective sleeve Escape release Handle module • Insert actuation axis. The snap ring A must be in contact with the escape release B. • Fit door handle. •...
-
Page 13: Mounting
Handle module module Surface mounting Tip! You will find an animation on the mounting process at www.euchner.com. Ì The color and labeling of pushbuttons and indicators can be modified. Ì For mounting steps, see Fig. 7 and Fig. 8 to Fig. 13. -
Page 14: Mounting Lens
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 8.1. Mounting lens Mounting 90° Click! Removal Lens (translation of the original operating instructions) 2112657-16-09/23... - Page 15 Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 2x M6 Cutout for escape release 1 Nm (6x) Tightening torque 6 Nm 4x M6 0,5 Nm Recommended fixing material: For mounting on the mounting plate: DIN 912-M6X25-8.8 ZN CYLINDER HEAD SCREW Fig. 7: Installation example for door hinged on the right (general view) 2112657-16-09/23 (translation of the original operating instructions)
-
Page 16: Changing Actuating Direction (Here: From Right To Left)
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 9. Changing actuating direction (here: from right to left) Important! It is possible to make this change only when the bolt tongue is not extended and an escape release is not yet mounted. In the delivery state, the handle module is set either for doors hinged on the right or for doors hinged on the left. -
Page 17: Protection Against Environmental Effects
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 3 mm CLOSED OPEN • Remove cover and undo hexagon socket screw. •• Move door handle 90° clockwise and fasten again. •• Tighten hexagon socket screw to 3 Nm. •• State after repositioning Fig. -
Page 18: Electrical Connection
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 11. Electrical connection WARNING In the event of a fault, loss of the safety function due to incorrect connection. To ensure safety, both safety outputs (FO1A and FO1B) must always be evaluated. Ì The monitoring outputs must not be used as safety outputs. -
Page 19: Notes About
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 11.1. Notes about Important! This device is intended to be used with a Class 2 power source in accordance with UL1310 Ì As an alternative an LV/C (Limited Voltage/Current) power source with the following properties can be used: - This device shall be used with a suitable isolating source in conjunction with a fuse in accordance with UL248. -
Page 20: Requirements For Connecting Cables
CAUTION Risk of damage to equipment or malfunctions as a result of incorrect connecting cables. On the use of other connection components, the requirements in the following table apply. EUCHNER Ì provides no warranty for safe function in case of failure to comply with these requirements. -
Page 21: Changing Device Configuration (Using Dip Switches)
MGB-L0…-AR.-… and MGB-L0…-AP.-… 11.6. Changing device configuration (using DIP switches) Tip! You will find an animation on device configuration at www.euchner.com. DIP switches The device can be configured using the DIP switches. The following settings are possible: Changing system family (AR/AP switching) Ì... -
Page 22: Notes On Operation With Control Systems
Always connect inputs FI1A and FI1B directly to a power supply unit or to outputs FO1A and FO1B of an- Ì other EUCHNER AR device (series connection). Pulsed signals must not be present at inputs FI1A and FI1B. The test pulses are also present when the safety outputs are switched off (only on FO1A). Depending on the inertia of the downstream device (control system, relay, etc.), this can lead to short switching processes. -
Page 23: Terminal Assignment And Contact Description
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 11.8. Terminal assignment and contact description LEDs State DIA 2 Power DIA 1 Fig. 15: Connections and display LEDs Terminal Designation Description X3.1 to X3.3 See associated data sheet X3.4 Power supply for monitoring outputs and cover assembly, DC 24 V, must be permanently present. X3.5 Ground, DC 0 V (connected internally to X5.5). -
Page 24: Operation As Separate Device
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 11.9. Operation as separate device +24 V DC FI1A FI1B X3:4 X5:6 X4:1 X4:2 X4:6 X2:3 X2:4 X3:1 X3:3 Safety Inputs Safety Monitoring Outputs Outputs X5:5 X3:5 X4:4 X4:5 X5:1 X5:2 X5:4 X2:1 X2:2 X2:6 X2:7... -
Page 25: Operation In An Ar Switch Chain
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 11.10. Operation in an AR switch chain +24 V DC FI1A FI1B X3:4 X5:6 X4:1 X4:2 X4:6 X2:3 X2:4 X3:1 X3:3 Safety Inputs Safety Monitoring Outputs Outputs X5:5 X3:5 X4:4 X4:5 X5:1 X5:2 X5:4 X2:1 X2:2... -
Page 26: Information On Operation In An Ar Switch Chain
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 11.11. Information on operation in an AR switch chain 11.11.1. System times The interlocking module has longer reaction times than a CES-AR switch (see chapters 13. Technical data on page 29 and 13.2. Typical system times on page 32). 11.11.2. -
Page 27: Setup
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 12. Setup 12.1. Teach-in operation (only for MGB unicode) The handle module must be assigned to the interlocking module using a teach-in function before the system comprising interlocking module and handle module forms a functional unit. During a teach-in operation the safety outputs are switched off. -
Page 28: Mechanical Function Test
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 12.2. Mechanical function test It must be possible to insert the bolt tongue easily into the interlocking module. To check, close guard several times and actuate door handle. If available, check function of the escape release. It must be possible to operate the escape release from the inside without excessive effort (approx 40 N). -
Page 29: Technical Data
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 13. Technical data NOTICE If a data sheet is included with the product, the information on the data sheet applies in case of dis- crepancies with the operating instructions. Parameter Value Unit Housing material Fiber glass reinforced plastic Die-cast zinc, nickel-plated Stainless steel... - Page 30 Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… Characteristics acc. to EN ISO 13849-1 Category Performance Level PL e 3.7 x 10 Mission time years Mechanical life 1 x 10 - In case of use as door stop, and 1 Joule impact 0.1 x 10 energy (emergency stop) 0.065 x 10 Emergency stop Operating voltage...
-
Page 31: Radio Frequency Approvals (For Devices With Fcc Id And Ic On The Type Label)
MGB-L0-AR Series MGB-L1-AR Series MGB-L2-AR Series MGB-L0-AP Series MGB-L1-AP Series MGB-L2-AP Series Responsible Party – U.S. Contact Information EUCHNER USA Inc. 6723 Lyons Street East Syracuse, NY 13057 +1 315 701-0315 +1 315 701-0319 info(at)euchner-usa.com http://www.euchner-usa.com 2112657-16-09/23 (translation of the original operating instructions) -
Page 32: Typical System Times
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 13.2. Typical system times Important! The system times given are maximum values for one device. Ready delay: In case of AR configuration, the following applies: After switching on, the device carries out a self-test for 10 s. The system is ready for operation only after this time. -
Page 33: System Status Table Mgb-Ar
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 14.2. System status table MGB-AR DIA (red) STATE (green) Power (green) Diagnostic monitoring output (OI) Bolt tongue monitoring output (OT) Door monitoring output (OD) Safety outputs FO1A and FO1B Position of the bolt tongue Door position Safety inputs FI1A... -
Page 34: System Status Table Mgb-Ap
Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 14.3. System status table MGB-AP DIA (red) State (green) Power (green) Diagnostic monitoring output (OI) Bolt tongue monitoring output (OT) Door monitoring output (OD) Safety outputs FO1A and FO1B Position of the bolt tongue Door position (translation of the original operating instructions) 2112657-16-09/23... -
Page 35: Troubleshooting And Assistance
¨ 15.2. Troubleshooting help on the Internet You will find a help file on troubleshooting under Downloads in the service area at www.euchner.com. 15.3. Mounting help on the Internet You will find an animation on the mounting process at www.euchner.com. -
Page 36: Inspection And Service
The year of manufacture can be seen in the lower right corner of the type label. 18. Declaration of conformity The EU declaration of conformity can be found at www.euchner.com. Enter the order number of your device in the search box. The document is available under Downloads. - Page 37 Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… 2112657-16-09/23 (translation of the original operating instructions)
- Page 38 Edition: 2112657-16-09/23 Title: Operating Instructions Safety Systems MGB-L0…-AR.-… and MGB-L0…-AP.-… (translation of the original operating instructions) Copyright: © EUCHNER GmbH + Co. KG, 09/2023 Subject to technical modifications; no responsibility is accept- ed for the accuracy of this information.
