Summary of Contents for Youshiko YC9343

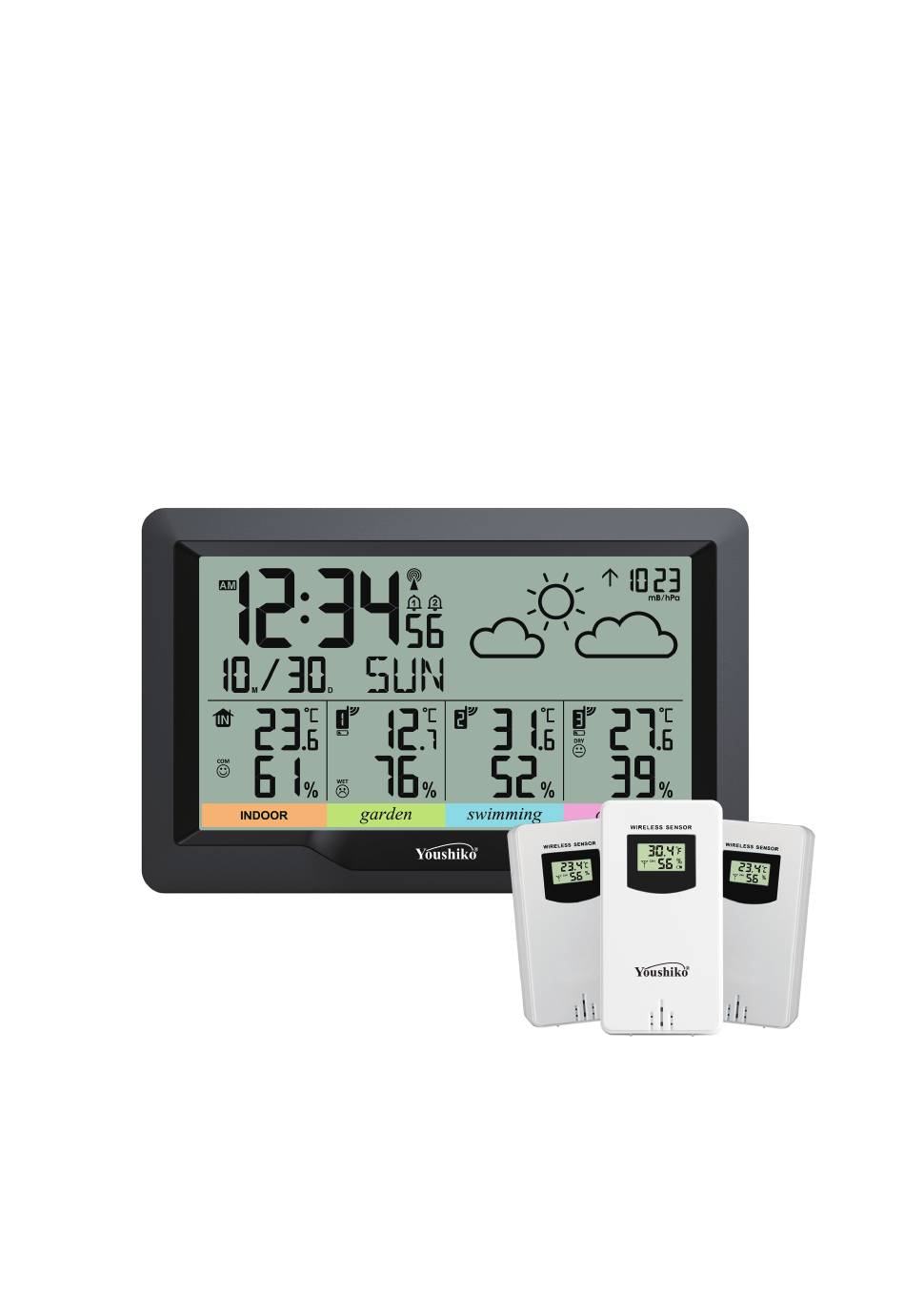

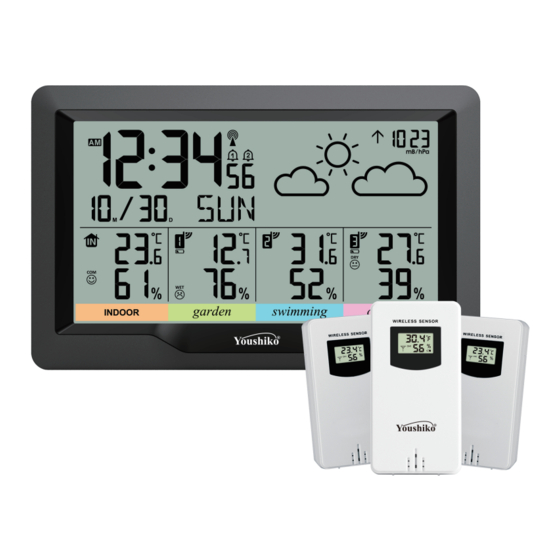

- Page 1 Youshiko YC9343 Radio Control Weather station...
- Page 2 One Step Automatic Set Up: Insert required batteries in weather station display unit, ,Then choose channel number : 1 / 2 / 3 on three supplied sensors , each sensor must have different channel number, then insert batteries in all sensors and wait . All sensors will connect to display unit within 1 to 3 minutes.
- Page 3 Features: MSF Radio controlled clock function Radio control function can be switched on and off Time in optional 12/24 hour format Perpetual Calendar Up to Year 2099 Daily Alarm Function Snooze function Low battery indicate ...
- Page 4 Appearance descrip on: 1 ： 7 ：Remote sensor 2 data Weather forecast pa ern and air pressure 2 ：Time 8 ：Remote sensor 3 data 3 ：Date and day of week 9 ：Ba ery compartment cover 4 ：Remote sensor loca on label ：Stand cover 5 ：Indoor temperature / humidity / comfort ：...
- Page 5 A1: Remote sensor temperature Emission symbols A3: Channel number A4: Remote sensor humidity A5: Remote sensor low battery indicate B1: °C /°F unit transfer button B2: Manual transmitter button B3: Channel switch indicating lamp C1: Transmit C2: Battery compartment cover C3: Wall mounting hole C4: Stand cover C5: Battery compartment...
-
Page 6: Initial Operation
Initial operation Open the Weather Station battery compartment cover Insert 2 x AA batteries observing polarity [ “+” and “ –“ marks] When you insert the batteries, all icons on the LCD will light up for 3 seconds, and you will hear a beep tone, then detect indoor temperature &... -
Page 7: Manual Time Setting
power adapter. Radio reception is weaker in rooms with concrete walls (e.g.: in cellars) and in offices. In such extreme circumstances, place the system close to the window. During the RC receive mode, only the 【Light/Snooze】 and 【-】buttons have a function, other buttons are not functional, If you want to carry out other functions of operation, please press 【-】... -
Page 8: Switching Off The Alarm Signal
return to time display. display alarm2 time, press button again, button for 2 seconds, Press and hold until the HOUR of the Alarm1 time starts to flash, press the buttons to set the required Hour. Press button to confirm the item has been set and go to the next one, the sequence of setting items is as follows: Hour of Alarm1 ... -
Page 9: Ice Alert
Query Maximum/minimum numerical value When the temperature/ humidity are shown in the LCD, The weather station began to record temperature/humidity maximum and minimum numerical value. Press once 【MEM】 button, the LCD will display maximum value of temperature/ humidity, The LCD will display the minimum value of temperature/humidity if press once 【MEM】... -
Page 10: Comfort Level
The weather symbols indicate the weather fluctuation over the next 8 hours and not the current weather. Comfort level The temperature and humidity is dry (When the humidity is below 40%.) The temperature and humidity is comfort (When the temperature in ℃... -
Page 11: Background Lighting
Background lighting Touch the 【LIGHT】button, the backlight illuminates for 15 seconds. End for the manuals. Battery replacement Use alkaline batteries only. Observe correct polarity, Low batteries should be changed soon to avoid the damage resulting from a leaking battery. Batteries contain harmful acids. - Page 12 Declara on of Conformity: Youshiko Ltd hereby declares that the product fully complied to applicable guidelines and corresponding standards and requirements ok UKCA and other relevant provisions of Direc ve 1999/5/EC. LIABILITY DISCLAIMER • Electrical and electronic waste contains hazardous substances. Disposal of electronic waste in open countryside and/or in other unauthorized places greatly damages the environment.
