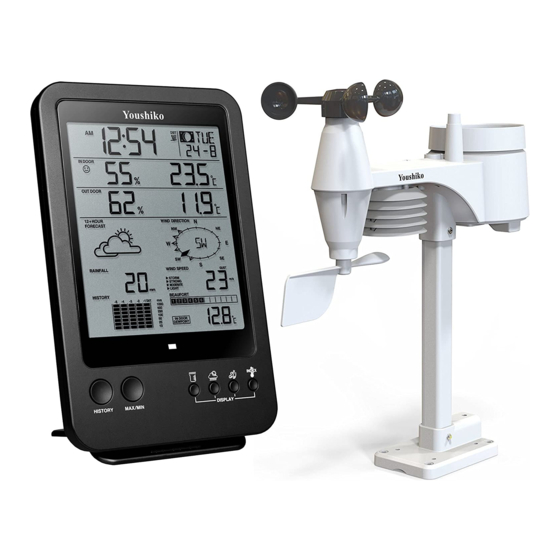

- Page 1 PROFESSIONAL WEATHER STATION WITH WIRELESS 5IN1 SENSOR Model : YC9385 USERS’ INSTRUCTION...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION........................OVERVIEW................................1 LCD DISPLAY................................3 INSTALLATION..............................5 DISPLAY MAIN UNIT.............................7 WEATHER FORECAST............................9 BAROMETRIC / ATMOSPHERIC PRESSURE......................9 RAINFALL................................10 WIND SPEED / WIND DIRECTION........................10 BEAUFORT SCALE..............................11 WIND CHILL / HEAT INDEX / DEWPOINT......................12 HISTORY DATA (ALL RECORDS IN THE PAST 24 HOURS)................12 MAXIMUM / MINIMUM MEMORY FUNCTION....................12 HI / LO ALERT..............................13 WIRELESS SIGNAL RECEPTION........................14 TEMPERATURE & HUMIDITY..........................14 DATA CLEARING..............................14 POINTING 5IN1 SENSOR TO THE SOUTH .....................14 ABOUT THE MOON PHASE..........................15 MAINTENANCE..............................15 TROUBLESHOOTING............................16 SPECIFICATIONS..............................17 ABOUT THIS USER’S MANUAL This symbol represents a warning. T o ensure safe use, always adhere to the instructions described in this documentation. PRECAUTIONS This symbol is followed by a user ’ s tip Read and keep these instructions, heed all warnings and follow all instructions. Do not subject the unit to excessive force, shock, dust, temperature or humidity. Do not cover the ventilation holes with any items such as newspapers, curtains etc. Do not immerse the unit in water. If you spill liquid over it, dry it immediately with a soft, lintfree cloth. Do not clean the unit with abrasive or corrosive materials. Do not tamper with the unit’s internal components. This invalidates the warranty. Placement of this product on certain types of wood may result in damage to its finishing for which manufacture will not be responsible. Consult the furniture manufacturer’s care instructions for information. -
Page 3: Overview
INTRODUCTION Thank you for selecting Professional Weather Station with integrated 5in1 multi sensor. The wireless 5in1 sensor contains a selfemptying rain collector for measuring rainfall, anemometer, wind vane, temperature and humidity sensors. It is fully assembled and calibrated for your easy installation. It sends data by a low power radio frequency to the Display Main Unit up to 150m away (line of sight). The display Main Unit displays all the weather data received from the 5in1 sensor outside. It remembers the data for a time range for you to monitor and analyze the weather status for past 24 hours. It has advance feature such as the HI /LO Alert alarm which will alert the user when the set high or low weather criteria are met. The barometric pressure records are computed to give users forthcoming weather forecast and stormy warning. Day and date stamps are also provided to the corresponding maximum and minimum records for each weather details. The system also analyzes the records for your convenient viewing, such as the display of rainfall in terms of rain rate, daily, weekly and monthly records, whereas windspeed in different levels, and expressed in Beaufort Scale. Different useful readings such as Windchill, Heat Index, Dewpoint, Comfort level are also provided. With Radiocontrolled / Atomic clock feature builtin, the system is truly a remarkable personal Professional Weather Station for your own backyard. OVERVIEW Note: This instruction manual contains useful information on the proper use and care of this product. Please read this manual through to fully understand and enjoy its features, and keep it handy for future use. Display main unit 1. SNOOZE / LIGHT button 2. HISTORY button 3. MAX/MIN button 4. RAINFALL button 10 11 5. BARO button 6. WIND button 7. INDEX button 8. CLOCK button 9. ALARM button 10. ALERT button 11. DOWN button 12. UP button 13. °C/°F slide switch 14. RCC button 15. SCAN button 16. RESET button 17. Battery compartment 18. Alert LED indicator 19. LCD display with backlight 4 5 6 7... - Page 4 Wireless 5in1 Sensor 1. Rain collector 2. Balance indicator 3. Antenna 4. Wind cups 5. Mounting pole 6. Radiation shield 7. Wind vane 8. Mounting base 9. Mounting claim 10. Red LED indicator 11. RESET button 12. Battery door 13. Screws Rain gauge 1. Rain collector 2. Tipping bucket 3. Drain holes 4. Rain sensor Temperature and humidity sensor 1. Radiation shield 2. Sensor casing (Temperature and humidity sensor)
-
Page 5: Lcd Display
Wind sensor 1. Wind cups (anemometer) 2. Wind vane LCD DISPLAY Normal time and calendar / Moon phase 1. Max/Min/Previous indicator 2. Low battery indicator for main unit 3. Time 4. Ice prealert on 5. RC Signal strength indicator 6. DST icon 7. Moon phase 8. Day of the week 9. Alarm icon 10. Date 11. Month Indoor temperature and humidity window 1. Comfort/cold/hot icon 2. Indoor indicator 3. Indoor humidity 4. Hi / Lo Alert and Alarm 5. Indoor temperature Outdoor temperature and humidity window 1. Outdoor signal strength indicator 2. Outdoor indicator 3. Outdoor humidity 4. Hi / Lo Alert and Alarm 5. Outdoor temperature 6. Low battery indicator for sensor... - Page 6 12+ Hour forecast 1. Weather forecast indicator 2. Weather forecast icon Barometer 1. Barometer indicator 2. Histogram 3. Absolute/Relative indicator 4. Barometer measurement unit (hPa / inHg / mmHg) 5. Barometer reading 6. Hourly records indicator Rainfall 1. Rainfall indicator 2. Time range record indicator 3. Day records indicator 4. Histogram 5. Hi Alert and Alarm 6. Current rainfall rate 7. Rainfall unit (in / mm) Wind direction/Wind speed 1. Wind direction indicator 2. Wind direction indicator(s) during last hour 3. Current wind direction indicator 4. Wind speed indicator 5. Wind levels and indicator 6. Beaufort scale reading 7. Current wind direction reading 8. Average/Gust wind indicator 9. Wind speed unit (mph / m/s / km/h / knot) 10. Hi Alert and Alarm Wind chill/ Heat index/ Indoor dewpoint 1. Wind chill/ Heat index/ Indoor dewpoint indicator 2. Wind chill/ Heat index/ Indoor dewpoint reading...
-
Page 7: Installation
INSTALLATION AND SETUP Install WIRELESS 5IN1 WEATHER SENSOR Your wireless 5IN1 sensor measures windspeed, winddirection, rainfall, temperature and humidity for you. It’s assembled and calibrated for your easy installation. INSTALL BATTERIES Unscrew the battery door at bottom of unit and insert the batteries according to the +/ polarity indicated.Screw the battery door compartment on tightly. Note: Ensure the water tight Oring is properly aligned in place to ensure water resistant. The red LED will begin flashing every 12 seconds. ASSEMBLY THE STAND AND POLE Step 1 Insert the top side of the pole to the square hole of the weather sensor. Note: Ensure the pole and sensor's indicator align. Step 2 Place the nut in the hexagon hole on the sensor, then insert the screw in other side and tighten it by the screw driver. Step 3 Insert the other side of the pole to the square hole of the plastic stand. Note: Ensure the pole and stand's indicator align. - Page 8 Step 4 Place the nut in the hexagon hole of the stand, then insert the screw in other side and then tighten it by the screw driver. Install the wireless 5IN1 sensor in an open location with no obstructions above and around the sensor for accurate rain and wind measurement. Install the sensor with the smaller end facing the North to properly orient the wind direction vane. Secure the mounting stand and bracket (included) to a post or pole, and allow minimum 1.5m off the ground Mounting guidelines: 1 . Install the wireless 5in1 sensor at least 1.5m off the ground for better and more accurate wind measurements. 2. Choose an open area within 150 meters from the LCD display Main Unit. 3 . Install the wireless 5in1 sensor as level as possible to achieve accurate rain and wind measurements. A bubble level device is provided to ensure a level installation. 4. Mount the wireless 5in1 sensor with the wind meter end pointing to the North to correctly orient direction of the wind vane. A. Mounting on pole (Pole Diameter 1”~1.3” (25~33mm) B. Mounting on the railing ...
-
Page 9: Display Main Unit
DISPLAY MAIN UNIT Stand and batteries installation The unit is designed for desktop or wall mount for easy viewing. 1. Remove the battery door of the main unit. 2. Insert 3 new AA size batteries according to the “ +/” polarity mark on the battery compartment. 3. Replace the battery door. 4 . Once the batteries are inserted, all the segments of the LCD will be shown briefly before entering the radiocontrolled time reception mode. 5. The RC clock will automatically start scanning for the radiocontrolled time signal in 8 seconds. Note: 1. If no display appears on the LCD after inserting the batteries, press the RESET button by using a pointed object. 2. In some cases, you may not receive the signal immediately due to the atmospheric disturbance. Pairing of wireless 5in1 sensor with Display Main Unit After insertion of batteries, the Display Main Unit will automatically search and connect the wireless 5in1 sensor (antenna blinking). Once the connection is successful, antenna mark and readings for outdoor temperature, humidity, wind speed, wind direction, and rainfall will appear on the display. Changing batteries and manual pairing of sensor Whenever you changed the batteries of the wireless 5in1 sensor , pairing must be done manually. 1. Change the batteries to new ones. 2. Press the [SCAN] button. 3. Press the [RESET] button on the sensor. Note: 1. Pressing [RESET] button at bottom of wireless 5in1 sensor will generate a new code for pairing purpose. Radiocontrolled / atomic clock function 2. Always dispose old batteries in an environmental safe manner. When the unit receives RC signal, a synctime symbol “ ” will appear on the LCD, and synchronizes daily. Note: 1. The strength of radiocontrolled time signal from the transmitter tower may be affected by geographical location or building around. 2. Always place the unit away from interfering sources such as TV set, computer, etc. - Page 10 3. Avoid placing the unit on or next to metal plates. Time setting 4. Closed areas such as airport, basement, tower block, or factory are not recommended. The unit automatically set itself accordingly to the Radio Controlled Clock signal it received. To set the clock/ calendar manually, first disable the reception by holding the RCC button for 8 seconds. To manually set the clock / Time Zone selection 1. Press and hold [CLOCK] button for 2 seconds until “12 or 24Hr” flashes. 2. Use [UP]/[DOWN] button to adjust, and press [CLOCK] button to proceed to the next setting. HOUR, MINUTE, SECOND, YEAR, MONTH, DATE, HOUR OFFSET, 3. Repeat 2 above for setting of TIME ZONE LANGUAGE and DST. Note: 1. The unit will automatically exit setting mode if no button was pressed in 60 seconds. 2 . The hour offset is for MSF version. Its range is between 23 and +23 hours. 3. The language options are English (EN), French (FR), German (DE), Spanish (ES), and Italian (IT). 4. DST (Daylight Saving Time) feature is set to Auto (factory set). The clock has been programmed to automatically switch To onetime Stop / Activate RCC signal reception when the daylight saving time is in effect. User can set the DST to OFF to disable the feature. 1. During the RCC reception, press [RCC] button to stop the current RCC reception. 2. During the normal time mode, press [RCC] button to activate the RCC reception at once. To permanently Disable / Enable RCC signal reception 1. Press and hold [RCC] button 8 seconds to disable the reception. 2. Press and hold [RCC] button 8 seconds to enable automatic RCC reception. To turn on/off alarm clock (with icealert function) RC on RC off 1. Press the [ALARM] button anytime to show the alarm time. 2. Press [ALARM] button to activate the alarm. 3. Press again to activate alarm with icealert function. 4. To disable the alarm, press until the alarm icon disappears. To set the alarm time Alarm off Alarm on Alarm with icealert 1. Press and hold [ALARM] button for 2 seconds to enter alarm setting mode. HOUR will begin to flash.
-
Page 11: Weather Forecast
WEATHER FORECAST The device contains sensitive pressure sensor builtin with sophisticated and proven software that predicts weather for the next 12 ~ 24 hours within a 30 to 50km (1931 miles) radius. Sunny / Clear Slightly cloudy Cloudy Rainy Rainy / Stormy Snowy Note: 1. The accuracy of a general pressurebased weather forecast is about 70% to 75%. 2. The weather forecast is meant for the next 12 hours, it may not necessarily reflect the current situation. 3. The “Snowy” weather forecast is not based on the atmospheric pressure, but based on the outdoor temperature. When BAROMETRIC / ATMOSPHERIC PRESSURE the outdoor temperature is below 3°C (26°F), the “Snowy” weather indicator will be displayed on the LCD. Atmospheric Pressure is the pressure at any location of the Earth caused by the weight of the column of air above it. One atmospheric pressure refers to the average pressure and gradually decreases as altitude increases. Meteorologists use barometers to measure atmospheric pressure. Since variation in atmospheric pressure greatly affected by weather, it is possible to forecast the weather by measuring the changes in pressure. To select the display mode: Press and hold [BARO] button for 2 seconds to toggle between: • ABSOLUTE the absolute atmospheric pressure of your location • RELATIVE the relative atmospheric pressure based on the sea level To set relative atmospheric pressure value: 1. Get the atmospheric pressure data of the sea level (it is also the relative atmospheric pressure data of your home area) through the local weather service, internet and other channels. 2. Press and hold [BARO] button f or 2 secondsu ntil “ ABSOLUTE” or “RELATIVE” icon flashes. 3. Press [U P]/[DOW N] button s w t o itch to “ RELATIVE” mode. 4. Press [B ARO] button once again until h te “RELATIVE” atmospher ic pressure digit flashes. -
Page 12: Rainfall
RAINFALL To select the rainfall display mode: The device displays how many mm / inches of rain are accumulated in a one hour time period, based on current rainfall rate. Press [RAINFALL] button to toggle between: • RATE Current rainfall rate in past an hour • DAILY The DAILY display indicate the total rainfall from midnight • WEEKLY The WEEKLY display indicate the total rainfall from the current week • MONTHLY T he MONTHLY display indicate the total rainfall from the current calendar month Rainfall rate Daily rainfall Weekly rainfall Monthly rainfall Note: Rain rate is updated every 6 minutes, at every hour on the hour, and at 6, 12, 18, 24, 30, 36, 42, 48, 54 To select the measurement unit for the rainfall: minute past the hour. 1. Press and hold [RAINFALL] button 2 seconds to enter unit setting mode. 2. Use [UP] / [DOWN] button to toggle between mm (millimeter) and in (inch). WIND SPEED / DIRECTION 3. Press [RAINFALL] button to confirm and exit. To read the wind direction: Wind Direction Indicator Meaning Realtime wind direction Wind directions appeared To select the wind display mode: in last 5 minutes (max 6) Press [WIND] button to toggle between: • AVERAGE The AVERAGE wind speed will display the average of all wind speed numbers recorded in ... -
Page 13: Beaufort Scale
BEAUFORT SCALE Beaufort scale is an international scale of wind velocities from 0 (calm) to 12 (Hurricane force). Beaufort number Description Wind speed Land conditions < 1 km/h < 1 mph Calm Calm. Smoke rises vertically. < 1 knots < 0.3 m/s 1.1–5.5 km/h 1–3 mph Smoke drift indicates wind direction. Light air 1–3 knots Leaves and wind vanes are stationary. 0.3–1.5 m/s 5.6–11 km/h 4–7 mph Wind felt on exposed skin. Leaves Light breeze 4–6 knots rustle. Wind vanes begin to move. 1.6–3.4 m/s 12–19 km/h 8–12 mph Leaves and small twigs constantly Gentle breeze 7–10 knots moving, light flags extended. 3.5–5.4 m/s 20–28 km/h 13–17 mph Dust and loose paper raised. Small Moderate breeze 11–16 knots branches begin to move. 5.5–7.9 m/s 29–38 km/h 18–24 mph Branches of a moderate size move. -
Page 14: Wind Chill / Heat Index / Dewpoint
WIND CHILL / HEAT INDEX / DEWPOINT To view Wind Chill: Press the [INDEX] button repeatedly until WINDCHILL displays. Note: The wind chill factor is based on the combined effects of temperature and wind speed. The wind chill To view Heat Index: displayed is calculated solely from temperature and humidity measured from the 5in1 sensor. Press the [INDEX] button repeatedly until HEAT INDEX displays. Heat Index range Warning Explanation 27°C to 32°C Caution Possibility of heat exhaustion (80°F to 90°F) 33°C to 40°C Extreme Caution Possibility of heat dehydration (91°F to 105°F) 41°C to 54°C Danger Heat exhaustion likely (106°F to 129°F) ≥55°C Extreme Danger Strong risk of dehydration / sun stroke (≥130°F) Note: Heat index is only calculated when temperature is 27°C/80°F or above, and based solely from the To view DewPoint (Indoor) temperature and humidity measured from the 5in1 sensor. -
Page 15: Hi / Lo Alert
HI / LO ALERT HI/LO alert are used to alert you of certain weather conditions. Once activated, the alarm will turn on and amber LED starts flashing when a certain criterion is met. The following are areas and type of alert provided: Area Type of Alert available Indoor temperature HI and LO alert Indoor humidity HI and LO alert Outdoor temperature H I and LO alert Outdoor humidity HI and LO alert Rainfall HI alert Wind speed H I alert To set the HI / LO alert Note: Daily rainfall since midnight. 1. Press the [ALERT] button until the desired area is selected. 2. Use [UP] / [DOWN] buttons to adjust the setting. 3. Press [ALERT] button to confirm and continue to next setting. To enable/disable the HI / LO alert 1. Press [ALERT] button until the desired area is selected. 2. Press [ALARM] button to turn the alert on or off. 3. Press [ALERT] button to continue to next setting. Note: 1. The unit will automatically exit setting mode in 5 seconds if no button is pressed. 2. When ALERT alarm is on, the area and type of alarm that triggered the alarm will be flashing and the alarm will sound for 2 minutes. 3. To silence the Alert alarm beeping, press the [SNOOZE / LIGHT] / [ALARM] button, or let the beeping alarm automatically turn off after 2 minutes. -
Page 16: Wireless Signal Reception
WIRELESS SIGNAL RECEPTION No sensor Signal searching Strong signal Weak signal Signal lost The 5in1 sensor is capable of transmitting data wirelessly over an approximate operating of 150m range (line of sight). Occasionally, due to intermittent physical obstructions or other environmental in te rference, the signal may be weaken or lost. In the case that the sensor signal is lost completely, you will need to relocate the Display main unit or the TEMPERATURE & HUMIDITY wireless 5in1 sensor. Comfort Indication The comfort indication is a pictorial indication based on indoor air temperature and humidity in an attempt to determine comfort level. Too cold Comfortable Too hot Note: DATA CLEARING 1. Comfort indication can vary under the same temperature, depending on the humidity. 2. There is no comfort Indication when temperature is below 0°C (32°F) or over 60°C (140°F). During installation of the wireless 5in1 sensor, the sensors were likely to be triggered, resulting in erroneous rainfall and wind measurements. After the installation, user may clear out all the erroneous data from the Display Main Unit, without needing to reset the clock and reestablish pairing. POINTING 5IN1 SENSOR TO THE SOUTH Simply press and hold the [HISTORY] button for 10 seconds. This will clear out any data recorded before. The outdoor 5in1 sensor is calibrated to be pointing to North by default. However, in some cases, users may wish to install the product with the arrow pointing towards the South, especially for people living in the Southern hemisphere (e.g. Australia, New Zealand). 1. First install the outdoor 5in1 sensor with its arrow pointing to the South. (Please refer to Installation session for mounting details) 2. On the Display main unit, press and hold [WIND] button for 8 seconds until the upper part (Northern Hemisphere) of the compass lights up and blinking. 3. Use [UP] / [DOWN] to change to lower part (Southern Hemisphere). Northern hemisphere Southern hemisphere 4. Press [WIND] button to confirm and exit. Note: Changing from hemisphere setting will automatically switch the direction of the moon phase on the display. -
Page 17: About The Moon Phase
ABOUT THE MOON PHASE In the Northern hemisphere, the moon waxes (the part of the moon we see that glows after the New M o o n ) from the right. Hence the sunlit area of the moon moves from right to left in the Northern Hemisphere, while in the Southern Hemisphere, it moves from left to right. Below are the 2 tables which illustrate how the moon will appear on the main unit. Northern hemisphere: Southern hemisphere: New Moon Full Moon Waxing Crescent Waning Gibbous First quarter Third quarter Waxing Gibbous Waning Crescent MAINTENANCE To clean the rain collector 1. Rotate the rain collector by 30° anticlockwise. 2. Gently remove the rain collector. 3. Clean and remove any debris or insects. 4. Install all the parts when they are fully clean and dried. “Unlock” Position “Lock” Position To clean the Thermo / Hygro sensor 1. Unscrew the 2 screws at the bottom of the radiation shield. 2. Gently pull out the shield. 3. Remove carefully any dirt or insects inside the sensor casing (Do not let the sensors inside get wet). 4. Clean the shield with water and remove any dirt or insects. 5. Install all the parts back when they are fully clean and dried. -
Page 18: Troubleshooting
TROUBLESHOOTING Problem / Symptom Solution 1. Check the drain hole in the rain collector. Strange or no measurement of Rain Sensor 2. Check the balance indicator. Strange or no measurement of Thermo / 1. Check the radiation shield. Hygro Sensor 2. Check the sensor casing. Strange or no measurement of Wind Speed 1. Check wind cups (Anemometer). and Direction 2. Check the wind vane. 1. Relocate the main unit and 5in1 sensor closer to each other. and (Signal lost for 15 minutes) 2. Make sure the main unit is placed away from other electronic appliances that may interfere with the wireless communication (TVs, computers, microwaves). (Signal lost for 1 hour) 3. If problem continues, reset both main unit and 5in1 sensor. ... -
Page 19: Specifications
SPECIFICATIONS MAIN UNIT Dimensions (W x H x D) 120 x 190 x 22 mm W eight 370g with batteries Battery 3 x AA size 1.5V batteries (Alkaline batteries recommended) Support channels Wireless 5in1 sensor (Wind speed, Wind direction, Rain gauge, thermohygro) INDOOR BAROMETER Barometer unit hPa, mmHg and inHg Measuring range (540 to 1100 hPa) / (405 ~ 825 mmHg) / (15.95 ~ 32.48 inHg) Resolution 1hPa, 0.01inHg, 0.1mmHg Accuracy (540 ~ 699hPa ± 8hPa @ 0~50°C) / (700 ~ 1100hPa ± 4hPa @ 0~50°C) (405 ~ 524 mmHg ± 6mmHg @ 0~50°C) / (525 ~ 825 mmHg ± 3mmHg @ 0~50°C) (15.95 ~ 20.66inHg ± 0.24inHg @ 32~122°F) / (20.67 ~ 32.48inHg ± 0.12inHg @ 32~122°F) W eather forecast Sunny / Clear, slightly Cloudy , Cloudy, Rainy, Rainy / Stormy and Snowy Display modes Current, Max, Min, Historical data for last 24hrs Memory modes Max & Min from last memory reset (with time stamp) INDOOR TEMPERATURE T emp. unit °C or °F ... - Page 20 WIRELESS 5IN1 SENSOR Dimensions (W x H x D) 343.5 x 393.5 x 136 mm W eight 673g with batteries Battery 3 x AA size 1.5V battery (Alkaline batteries recommended) Frequency 868 MHz Transmission Every 12 seconds OUTDOOR TEMPERATURE T emp. unit °C or °F Operating range 40°C to 60°C (40°F to 140°F) Lithium batteries required for low temperature usage Resolution 1 decimal place Accuracy +/ 0.5°C or 1°F t ypical @ 25°C (77°F) , Historical data for past 24 hours Display modes Current, Min and Max Memory modes Max & Min from last memory reset (with time stamp) Alarm Hi / Lo Temperature Alert OUTDOOR HUMIDITY Displayed range 1% to 99% (< 1%: LO; > 99%: HI) Operating range 1% to 99% Resolution Accuracy +/ 3% typical @ 25°C (77°F) ...
- Page 21 SENSOR AND MAIN UNIT STAND INSTALLATION...
- Page 22 THE PACKING YC1129&PE bag YC9385 Base Pearl wool Battery YC9385&Bubble bag Inner Tray UKCA Declaration of Conformity Y oushiko Ltd hereby declares that the product fully complied to applicable guidelines and corresponding standards for sales in the UK. For full details, please contact cus tomer services of Y oushiko Ltd (email address : cs@youshiko.co.uk). All enquiries: service@youshiko.co. Made for Youshiko in PRC...
