Summary of Contents for Youshiko YC9388

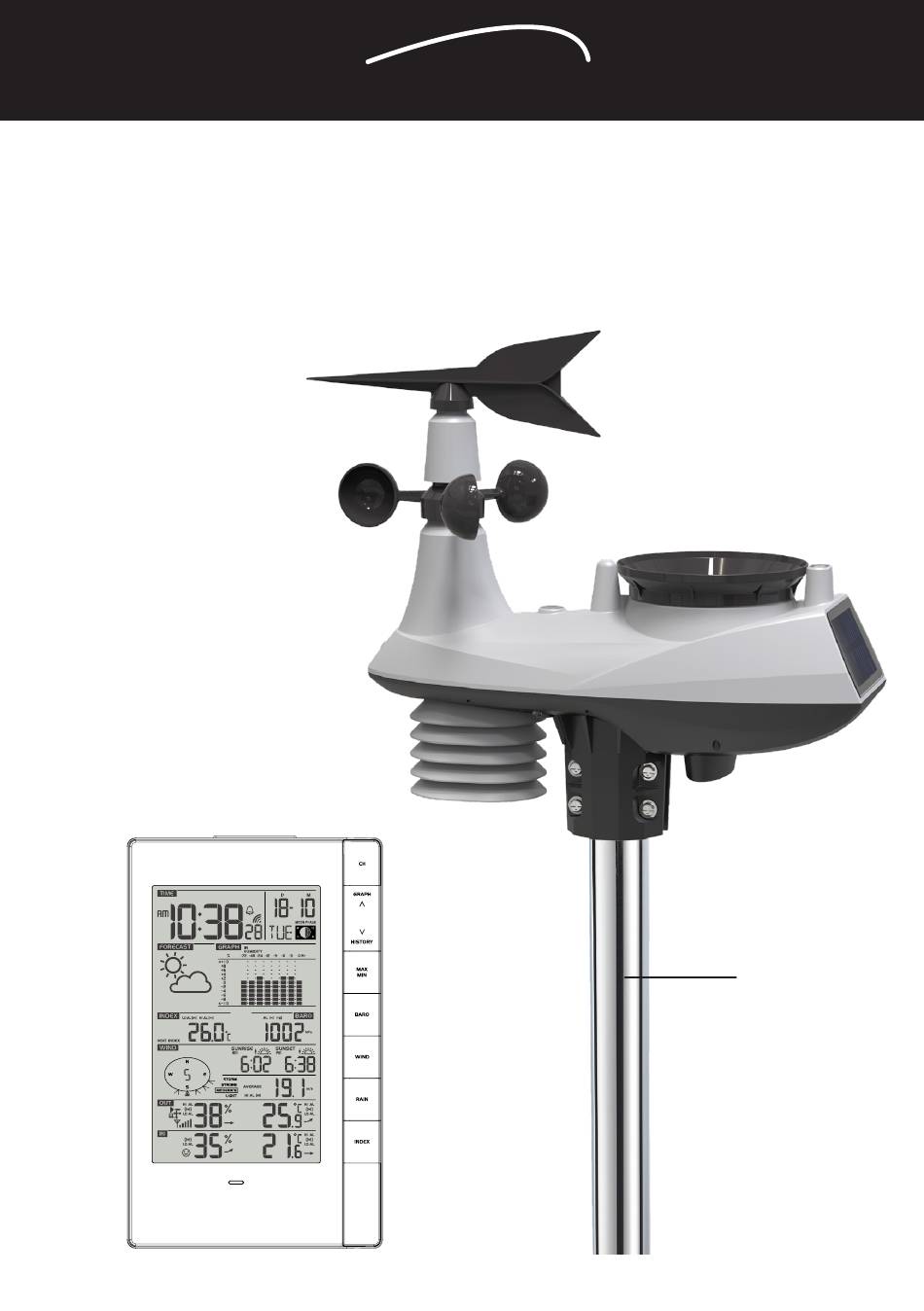

- Page 1 Youshiko ® Full weather station with 6-in-1 professional sensor and PC connection Model: YC9388 User Manual MOUNTING POLE ARE NOT INCLUDED...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OVERVIEW . -
Page 4: Introduction
INTRODUCTION Thank you for selecting full weather station with 6-in-1 professional sensor and PC connection . This product offers professional weather observers or serious weather enthusiasts robust performance with a wide range of options and sensor . You can save your own location's weather information in your PC thought the "WEATHER TOOL"... -
Page 5: Lcd Display
1 . [ SNOOZE / LIGHT ] key 9 . [ WIND ] key 17 . [ DATA ] key 2 . LCD display 10 . [ RAIN ] key 18 . [ TIME SYNC ] key 3 . Micro USB port 11 . -
Page 6: Wireless 6-In-1 Weather Sensor
WIRELESS 6-IN-1 WEATHER SENSOR 1 . Wind vane 7 . Battery door 2 . Wind cups 8 . [ RESET ] key 3 . Antenna 9 . Transmission status LED 4 . Radiation shield 10 . Level gradienter 5 . Hygro-thermal sensor 11 . - Page 7 Pairing the wireless 6-in-1 sensor with the console 1 . Unscrew the battery door at the bottom of the unit and insert the batteries according to the polarity information marked on the battery compartment . 2 . Screw on tightly . 3 .
-
Page 8: Main Console
MAIN CONSOLE Your main console can pairing up with the wireless 6-IN-1 outdoor weather sensor and up to 7 optional wireless hygro-thermo outdoor sensors . (Not included) Powering up the main console 1 . Remove the battery door on the back side of the main unit . 2 . -
Page 9: Set Clock Manually
SETTING CLOCK MANUALLY 1 . In normal mode, press and hold [ CLOCK SET ] key for 2 seconds to enter clock setting . 2 . Press [ ] or [ ] key set hour . 3 . Press [ CLOCK SET ] key again to enter the next setting . 4 . -
Page 10: Other Setting Of The Console
OTHER SETTING OF THE CONSOLE MOON PHASE The moon phase is determined by the time, date and time zone . The following table explains the moon phase icons of the Northern and Southern hemispheres . Please refer to ORIENTING THE 6-IN-1 SENSOR TOWARDS SOUTH section about how to setup for the Southern hemispheres . -
Page 11: Temperature & Humidity Function & Trend
When clock reach the alarm time, alarm sound will start . Where it can be stopped by following operation: - Auto-stop after 2 minutes alarming if without any operation and the alarm will activate again in the next day . - By pressing [ SNOOZE / LIGHT ] key to enter snooze that the alarm will sound again after 5 minutes . -
Page 12: Wind
4 . If the signal does not recover within 48 hours, the “--” display will become permanent you need to replace the batteries of “--” channel’s sensor(s) and then press [ SENSOR / SYNC] key to pair up the sensors of each “--” channels again . NOTE: After replacing the batteries of the wireless sensor or the unit fails to receive sensor signal of a specified channel. -
Page 13: Weather Index
WEATHER INDEX At the WEATHER INDEX section, you can press [ INDEX ] key to view the weather index in this sequence: UV INDEX → BEAUFORT → WIND CHILL → HEAT INDEX → DEWPOINT. UV Index The UV index reflects the UV data collected by the wireless outdoor sensor that the detectable range is 0.0~16.0. - Page 14 6 ~ 11 km/h 4 ~ 7 mph Wind felt on exposed skin . Leaves Light breeze rustle . Wind vanes begin to move . 4 ~ 6 knot 1.6 ~ 3.3 m/s 12 ~ 19 km/h 8 ~ 12 mph Leaves and small twigs constantly Gentle breeze moving, light flags extended.
-
Page 15: Weather Forecast
Wind Chill A combination of the wireless outdoor sensor's temperature and wind speed data determines the current wind chill factor . Heat Index The heat index, which is determined by the wireless outdoor sensor's temperature & humidity data, when the temperature is between 27°C (80°F) and 50°C (120°F) . Heat Index range Warning Explanation... -
Page 16: Rainfall
To set the barometer unit and select the wind display mode 1 . In normal mode, press [ BARO ] key to change the barometer unit in this sequence: hPa → inHg → mmHg 2 . In normal mode, press and hold [ BARO ] key to switch between ABSOLUTE / RELATIVE display . -
Page 17: History Graph
NOTE: - To ensure correct data, please reset the Accumulate rainfall when you reinstall your wireless outdoor sensor to other location HISTORY GRAPH To view different graphs In normal mode, press [ GRAPH / ] key to toggle between different types of graph: Weather variable Unit of measure Record time range Graph... -
Page 18: Max / Min Data Record
MAX / MIN DATA RECORD The console can record the accumulated and daily MAX / MIN weather data with the corresponding time stamp for you to easy review . To view the daily MAX / MIN Daily max record of indoor temperature In normal mode, press [ MAX / MIN ] key to check daily MAX/MIN records . - Page 19 To set alert 1 . Press [ ALERT ] to select and display the desired weather alert reading in the sequence below: Alert reading Sequence Setting Range Display Section Default Value Outdoor Temperature High 40°C Alert (current channel) -40°C ~ 80°C Outdoor Temperature Low Alert Outdoor temperature &...
-
Page 20: Pointing The Wireless 6-In-1 Sensor To South
POINTING THE WIRELESS 6-IN-1 SENSOR TO SOUTH The outdoor 6-in-1 sensor is calibrated to point to North for the maximum accuracy . However, for the user's convenience (e .g . users in the Southern hemisphere), it is possible to use the sensor with the wind vane pointing to South . -
Page 21: Pc Software
This console can display live data and export the weather data to the Windows base PC through the "Weather Tool" software . Please consult your local distributor for download details or down load from www .youshiko .co .uk or send an email to : service@youshiko .co .uk . "Weather Tool" software icon To connect PC 1 . -
Page 22: Maintenance
Uninstall the Weather Tool To uninstall the Weather Tool, just delete the Weather Tool.exe file from your PC. NOTE: . - Please use the USB cable provided to connect the console to PC . - Please keep the USB cable connected, during the data exporting to your PC . - The Microsoft Windows and worksheet software are 3rd party softwares, the interface and operation flow maybe different in various software version. -
Page 23: Cleaning The Uv Sensor And Calibration
- This product is not a toy . Keep out of the reach of children . - The main console is intended to be used only indoors . - Technical specifications and user manual contents for this product are subject to change without notice . All enquiries: service@youshiko .co .uk Made for Youshiko in PRC... -
Page 24: Specification
SPECIFICATIONS MAIN CONSOLE General Specification Dimensions (W x H x D) 117 x 189 x 31mm (4 .6 x 7 .5 x 1 .2in) Weight 480g (with batteries) Battery 6 x AA size 1 .5V batteries (alkaline recommended) Weather data in console Baro, temperature and humidity Operating temperature range -5˚C ~ 50˚C... - Page 25 Resolution 1hPa / 0 .01inHg / 0 .1mmHg Sunny, Partly Cloudy, Cloudy, Rainy, Rainy / Stormy and Weather forecast Snowy Display modes Current Memory modes Historical data from last memory reset, daily Max / Min Alarm Pressure change alert Indoor / Outdoor Temperature Display & Function Specification Note: The following details are listed as they are displayed or operate on the console .
-
Page 26: Wireless 6-In-1 Weather Sensor
Historical Data from last memory reset, daily Max Gust/ Memory modes Average Alarm Hi Wind Speed Alert (Average / Gust) Wind direction resolutions 1 degree Rain Display & Function Specification Note: The following details are listed as they are displayed or operate on the console . Unit for rainfall mm and in Accuracy for rainfall...
