Youshiko YC9360 Weather Station User Manual
Please read the operating instructions carefully to familiarize
yourself with the features and modes of operation before using the
instrument.Keep the manual for future reference and pass it on with
the device, if you pass on the device to other users.
General safety
This unit can be used by children of 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they are supervised or have been
instructed concerning the safe use of the device and understand the
resulting risks. Do not let children play with the device. Cleaning and
user maintenance must not be carried out by children without
supervision.
~ 1 ~
Advertisement
Table of Contents
Related Manuals for Youshiko YC9360
Summary of Contents for Youshiko YC9360
- Page 1 Youshiko YC9360 Weather Station User Manual Please read the operating instructions carefully to familiarize yourself with the features and modes of operation before using the instrument.Keep the manual for future reference and pass it on with the device, if you pass on the device to other users.
-
Page 2: Battery Instructions
Battery instructions Never recharge normal batteries! Risk of explosion! Keep batteries away from children, do not throw into fire, short- circuit or disassemble them. Always insert batteries according to the polarity regulations. Clean the battery and device contacts before inserting, if ... - Page 3 Products and batteries: Products and batteries should not be disposed of with normal household waste. According to Directive 2012/19/EU, the device is to be supplied at the end of its useful life to a proper disposal. The valuable materials contained in the device are supplied to recycling and avoid the burden of the environment.
- Page 4 Altitude-setting for calculation of relative air pressure Indoor /outdoor temperature and humidity with trend Max / Min of temperature and humidity Temperature display in °C or °F Temperature alert Moon phase Sun rise and sun set / moon rise and moon set for over 100 cities. ...

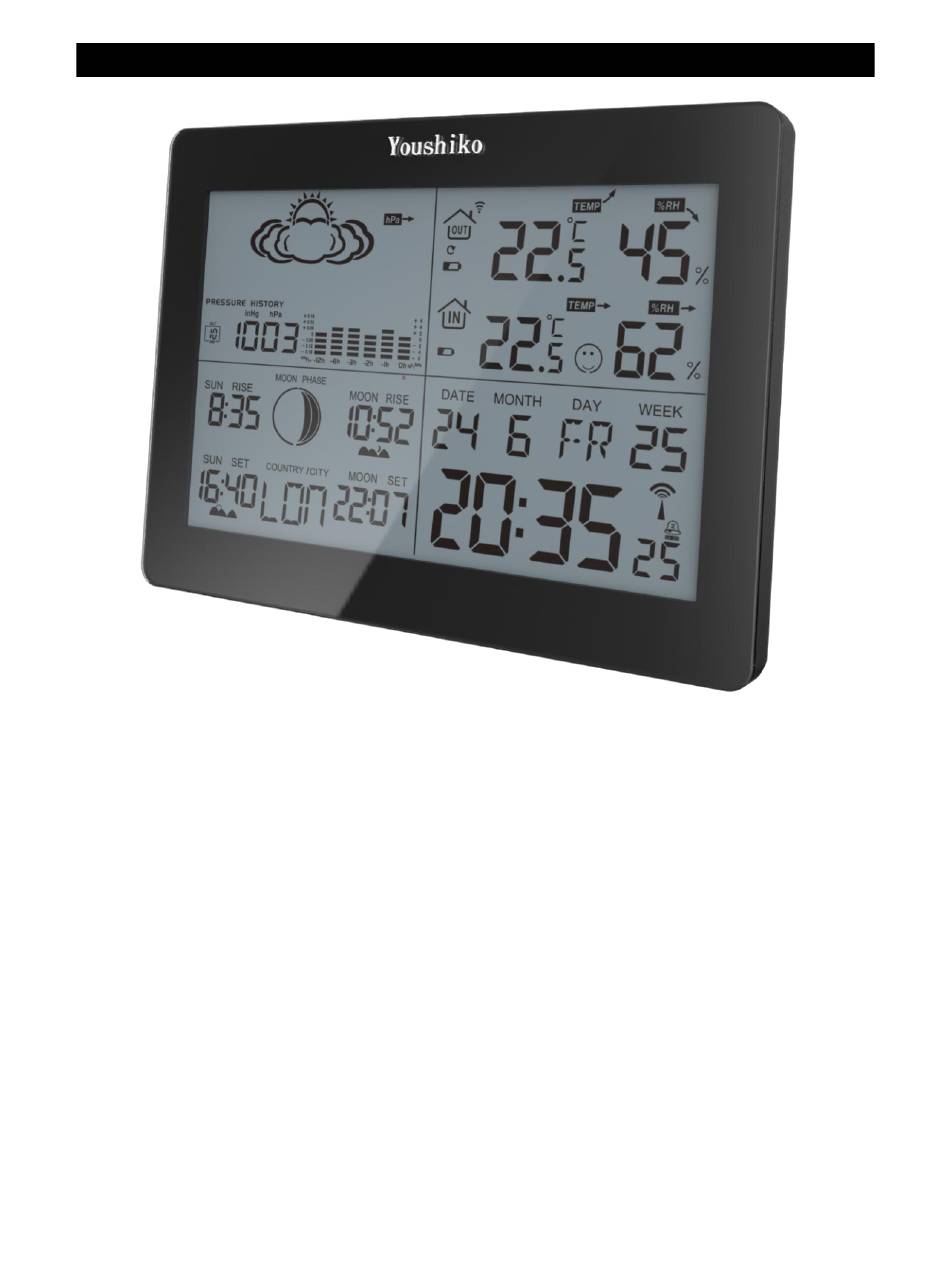

- Page 5 Structure: weather station ~ 5 ~...
- Page 6 1. History of air pressure (selectable by pressing the "HISTORY", displayed between 0 to -12 hours) 2. Air pressure 3. Frost indicator (displayed below +3°C indoor temperature) 4. Weather Forecast symbol 5. Bar graph for air pressure (Display updated continuously from right to left) 6.
- Page 7 change to the alarm setting for Alarm 1 (A1) or Alarm 2 (A2) Press the button for about 2 seconds to enter the alarm setting while alarm 1 (A1) or alarm (A2) is displayed To stop the alarm B "+"...
-
Page 8: Structure: Outdoor Sensor
F "SNOOZE / LIGHT" button Press to activate the snooze function while wake up alarm rings activation of the backlight Structure: outdoor sensor 1. RF radiation 2. selected channel 3. temperature 4. humidity A. channel choose switch B. temperature unit selection Please note: If you wish to add more than one sensors to weather station , then change and choose , your choice of channel 2 or 3 from A button ( shown above ) on the sensor no: 2 or 3 . -
Page 9: Mounting Options
Mounting options The weather station is intended to be located on flat surfaces, such as on tables or in cabinets. Through the loop on the rear of the transmitter, the transmitter is suitable for mounting on walls. Please mount the sensor outside in a sheltered place to avoid direct heavy rain and direct sunshine for best results &... - Page 10 Initial Operation Set Up: Open the battery compartment located on the rear side of the outdoor sensor and weather station. Place the batteries in the battery compartment of sensor first, then in weather station, please pay attention to the polarity; ...
- Page 11 please press and hold “CHANNEL“ button for more than 3 seconds to restart the search process again. Then the automatic reception of the MSF radio signal starts after 3 minutes of outdoor reception. While the RCC reception process is going on, the flashing symbol “radio tower “appears in the time display area, ( Weather station may require for 5 to 20 minutes for it to pick up the radio control...
- Page 12 MSF Reception of radio controlled Information: Automatic time change for Spring & Autumn and automatic time checks, accurate to 1 second in 10 million years, have automatic set up for time and calendar (where applicable), The National Physical Laboratory (NPL) which is the UK's home of measurement and the nation's timekeeping.
- Page 13 A static “radio tower” symbol is displayed after the MSF radio signal reception was successful. Please keep a minimal distance of 2.5m to sources of interference such as televisions or computer screens. The radio signal reception is weaker in rooms with concrete walls (e.g.
-
Page 14: Daily Alarm Set-Up
The 12/24 hour flashing. Use “+ “ and “- “ to select Press “MODE “ to confirm The display for the hour is flashing. Use “+ “ and “-“ to select the hour. Press “MODE “ to confirm. ... -
Page 15: Daily Alarm On/Off
Daily alarm on/off Press “MODE” to switch from time display to A1 display When showing A1 alarm time, press “-“ to activate the alarm 1 with alarm symbol showing. Press “MODE” again cancel the alarm When showing A2 alarm time, press “-“ to activate the alarm 2 with alarm symbol showing. -
Page 16: Temperature Alert Set-Up
Max./ Min. for the indoor/outdoor temperature and humidity Press “+” for displaying of indoor/outdoor max./min. of temperature and humidity. Temperature alert set-up Press “Channel” to select the channel (CH1, CH2, CH3) if more than one outdoor sensor is used ... -
Page 17: Weather Forecast Symbols
A nearby city of your location must be set to correctly display the time of your area. 150 cities are selectable for Sunrise /Sunset and Moonrise /Moonset times, a list of cities can be found in the end of the manual 5 Weather forecast symbols Sunny... -
Page 18: Moon Phase Display
unit is moved to a new location, discard readings for the next 12 hours and correct the height adjustment (see "Start-up") if needed. Backlight Press the key “SNOOZE/LIGHT“ to activate the display illumination for 5 seconds. Moon phase display Living space humidity The weather station uses saved data to determine the humidity in the living space and shows the respective symbols. -
Page 19: Low Battery Condition Display
4. No display: when the indoor temperature is not in the 20 to 28 ℃, indoor humidity 40-70%, no comfort indicator Low battery condition display The weather station displays the low battery condition symbol to remind the batteries of the weather station or the outdoor sensor need to be exchanged. -
Page 20: Protection And Care Of This Item
Declaration of Conformity: Hereby, Youshiko Ltd declares, that this weather station is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. 12: LIABILITY DISCLAIMER:... - Page 21 • This product is not a toy, Keep out of the reach of children. • No part of this manual may be reproduced without written authorization of the manufacturer. Supplied in Box:: 1 x Youshiko YC9360 Weather station main Unit 1 x outdoor transmitter 1 x instruction manual ( Battries are not included ) All enquiries: service @youshiko.co.uk...
- Page 22 CITIES OR STATE DESIGNATION Abb. Country/Cities Country/Cities Abb. Aachen Las Palmas Berlin Madrid Düsseldorf Malaga Dresden Palma de Mallorca Spain Erfurt Salamanca Frankfurt Sevilla Flensburg Valencia Freiburg Zaragoza Hannover Besancon Biarritz Bremen Bordeaux Hamburg Rostock Brest Germany Stralsund Cherbourg Köln Clermont Ferrand Kiel Lyon...
- Page 23 Country/Cites Abb. Country/Cities Abb. Croatia Zagreb Lisbon Portugal Ancona Porto Bari Gdansk Bologna Krakow Cagliari Poland Poznan Catania Szczecin Firenze Warsaw Russia Foggia St Petersburg Genova Goteborg Sweden Malmo Lecce Messina Stockholm Italy Milano Slovakia Bratislava Napoli Slovenia Ljubljana Palermo Yugoslavia Berigrade Parma Graz...
