Features - Projecta INTELLI-RV PM200 Manual

1.1 Features

• Smart battery charger 12V 35A (30A for charging current)
– Multi stage adaptive charging algorithm
– Active Power Factor Correction (PFC) charging
– Temperature compensation charging
– Voltage compensation charging
• Float charge for starter battery
• Solar charge controller (PWM), 30A
• 14 built in fused outputs
• Built in Voltage Sensing Relay
– 12V 60A Continuous
– 12V 100A Peak for 30mins
• Battery low voltage protection
• Built-in battery switch to isolate the battery when in storage
• Built-in shunt for precise battery measurement
• 1 water pump control with up to 3 connections for water sensors
• Dual control cooling fan
– Temperature Control
– Load Control
• Spring terminal and screw terminal
• RS-485 compatible
D+Input
Remote Switch
Dip Switch
Solar In
AC In
Service
Battery
Starter
Battery
MCU
F4 +
+
35A
PWM
-
-
+
+
-
AC/DC
-
Battery switch
+
-
VCR
Slave charger relay
+
- K2

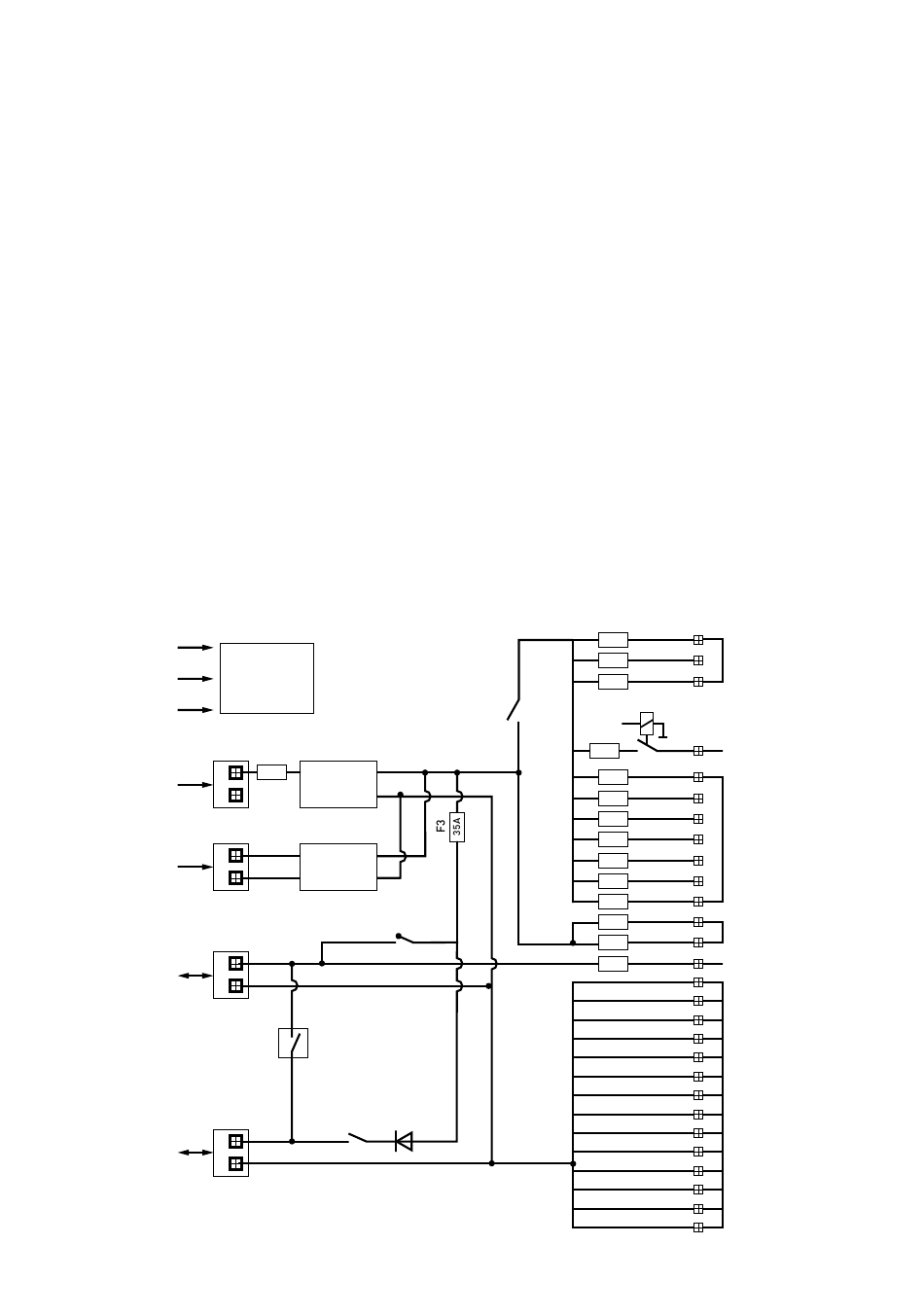

Figure 2 System Schematic
Load switch
K3
K1
Step
L14+
F17
10A
LOAD12 ~ 14 for
F16 L13+
10A
Class B Load
F15 L12+
10A
K4
F5
L11+
LOAD11 for PUMP
10A
F6 L10+
10A
F7 L9+
10A
F8 L8+
10A
LOAD4 ~ 10 for
F9 L7+
15A
Class B Load
F10 L6+
10A
F11 L5+
10A
F12
L4+
15A
LOAD 2 ~ 3 for
F13 L3+
10A
Class C Load
F14 L2+
15A
F1 L1+
LOAD1 for
15A
L14-
Class D Load
L13-
L12-
L11-
L10-
L9-
L8-
LOAD
L7-
L6-
L5-
L4-
L3-
L2-
L1-
-
5
