Summary of Contents for Projecta SC320

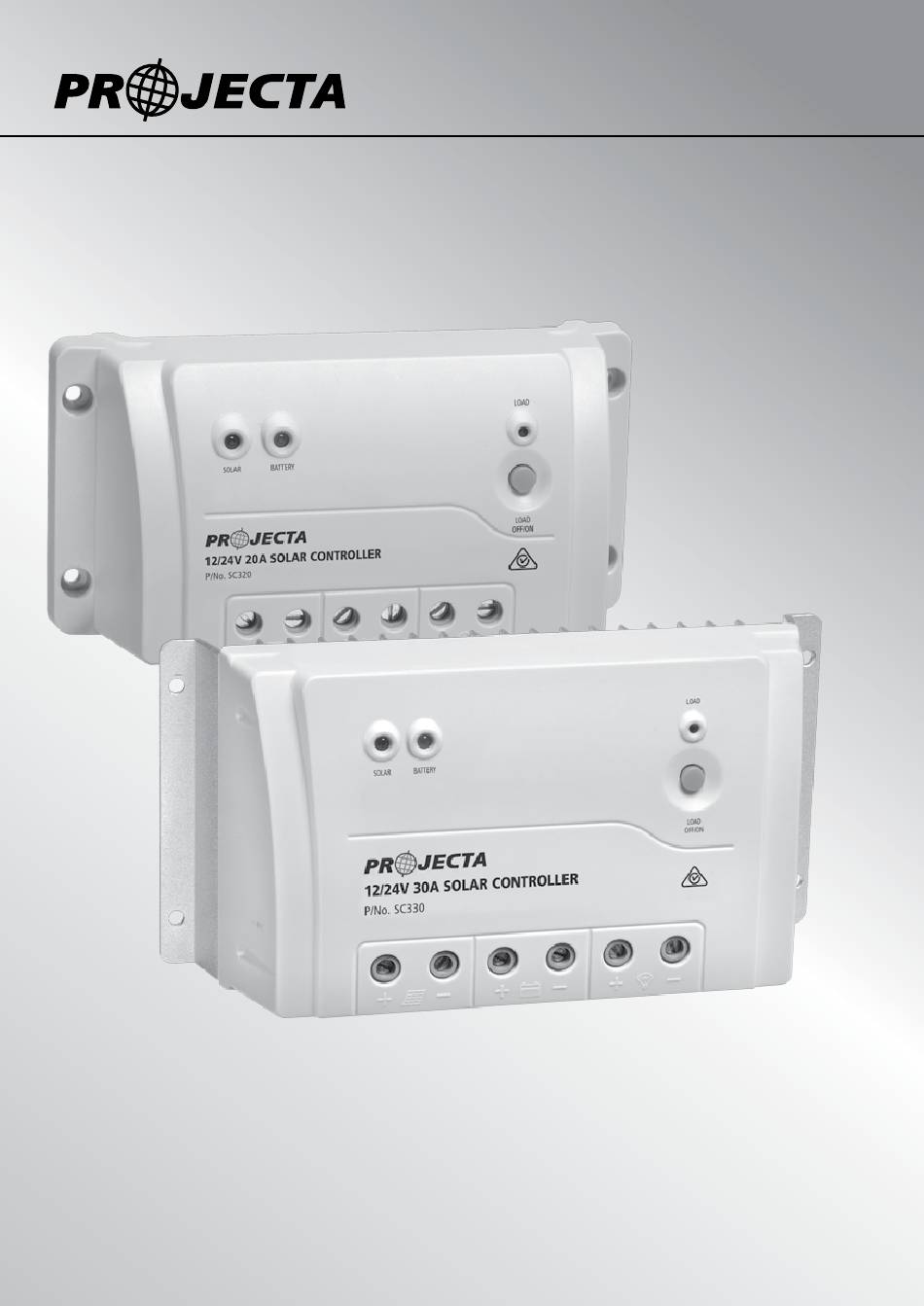

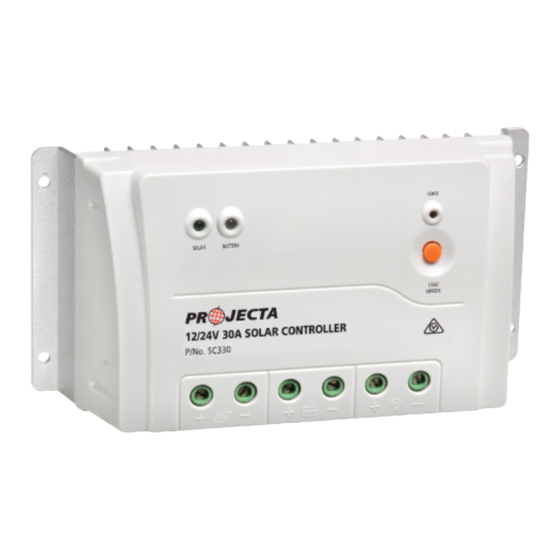

- Page 1 12/24 VOLT AUTOMATIC SOLAR CHARGE CONTROLLER P/No.s SC320 & SC330...
- Page 2 P/No. SC330: 30A FEATURES 3 STAGE CHARGING Ideal for deep cycle batteries, SC320 & SC330 deliver 3 stage charging, maximising battery life and performance. The in-built temperature sensor adjusts the output guaranteeing a thorough charge in all conditions. • Maintains your battery ready for use •...
-
Page 3: Low Voltage Disconnect (Lvd)
LOAD CONTROL The SC320 & SC330 allow you to switch the DC load on/off from the controller without having to physically disconnect the load or appliance. When switched to ‘off’, the DC load is isolated from the battery ensuring maximum power conservation. -
Page 4: Wiring Diagram
• Use the following cable & fuses for installation: SC320: 4.5mm cable, 30A Fuse SC330: 4.5mm... -
Page 5: Operation
OPERATION LED Indicators Battery status L.E.D indicator Charging status Load status L.E.D indicator L.E.D indicator Switch button Indicator Status Description Green On Solid Normal Green Slowly Flashing In charging Green No charge Green On Solid Normal Green Slowly Flashing Full Green Fast Flashing Over voltage... -
Page 6: Fault Codes
SPECIFICATIONS Electrical Parameters Nominal System Voltage 12/24VDC Max. PV input voltage Max. Battery Terminal Voltage Rated Battery Current SC320: 20A, SC330: 30A ≤0.28V Charge Circuit Voltage Drop ≤0.20V Discharge Circuit Voltage Drop ≤8.4mA/12V; ≤7. 8mA/24V Self-consumption Temperature compensation coefficient -3mV/°C /2V (Default) -
Page 7: Control Parameters
Storage temperature to +80 °C °C ≤95% NC Humidity Enclosure IP30 SC320 Mechanical Specifications Overall dimension 159.6 (6.28) x 81.4 (3.2) x 47.8 (1.88) mm/inches Mounting dimension 147 (5.79) x 50 (1.97) mm/inches Mounting hole size Terminal 10mm Net weight 0.3kg... -
Page 8: Warranty Statement
WARRANTY STATEMENT Applicable only to product sold in Australia Brown & Watson International Pty Ltd of 1500 Ferntree Gully Road, Knoxfield, Vic., telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue (save and except for all bulbs and lenses whether made of glass or some other substance) will under normal use and service be free of failures in material and workmanship for a period of one (1) year (unless this period has been extended as indicated elsewhere) from the date of the original purchase by the consumer as marked...
