Summary of Contents for Projecta INTELLI-START IS3000

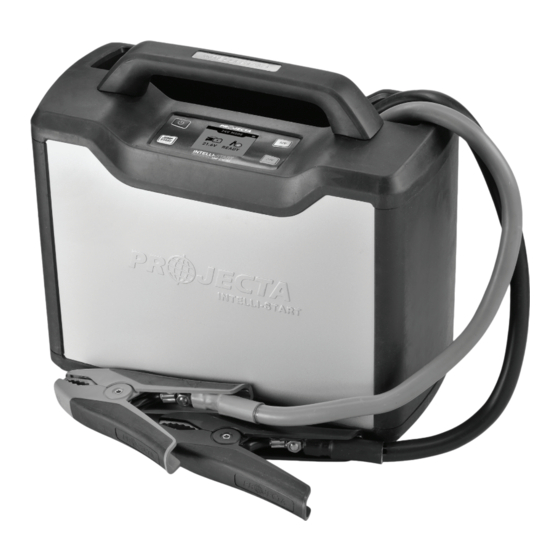

- Page 1 P/No. IS3000, IS5000 INTELLI-START 12/24V LITHIUM JUMP STARTER...
- Page 3 WARNING Please read this manual thoroughly before use and store in a safe place for future reference. • This jump starter has been designed for vehicles with 12V DC and 24V DC electrical systems only. • This jump starter contains batteries that are non-replaceable – during charging, the battery must be placed in a well-ventilated area (for chargers for batteries that release gases into the atmosphere during normal charging).
-
Page 4: Important Charging Information
IMPORTANT CHARGING INFORMATION • Charge the jump starter prior to use, using the supplied 240V AC/DC charging dock ISCD3500 and 15VDC 3A AC charging adapter ISCA3500. This may take up to 8 to 12 hours depending on the model. • Fully recharge the jump starter after every use to ensure the jump starter is ready for use in case of an emergency. -
Page 5: Product Overview
AUTOMATIC CELL-BALANCED CHARGE CONTROL • Automatically stops charging when the battery is fully charged. This initiates maintenance mode, keeping the battery fully charged and ready for use. You can leave the unit on charge indefinitely without the risk of overcharging. DOCKING STATION FOR 240V AC •... -
Page 6: Specifications
LCD DISPLAY SCREEN LAYOUT Jump starter battery status Message overview icon Jump starter suggested action The LCD display shows the jump starter status and supports its operation. In addition to the primary function the LCD display shows the following icons: •... -
Page 7: Jump Starting Instructions
JUMP STARTING INSTRUCTIONS • Instructions for negatively earthed vehicles only (most vehicles after 1970 are negatively earthed). • Before jump starting a vehicle, it is recommended to ensure the jump starter is fully charged. JUMP STARTING STEP INSTRUCTION DISPLAY The jump starter should be charged for around 8 to 12 hours depending on the model prior to first use and as soon as possible after each use. -
Page 8: Override Mode
OVERRIDE MODE • Under normal conditions, the jump starter automatically selects the jump start voltage. • However, the user is required to manually select output voltage when the vehicle battery voltage is between 0 to 1V DC. VEHICLE BATTERY VOLTAGE BETWEEN 0 TO 1V DC STEP INSTRUCTION DISPLAY... -
Page 9: Error And Alarm Messages
UNDERSTANDING THE JUMP STARTER ERROR AND ALARM MESSAGES ERROR TYPE ERROR DETAIL ERROR DISPLAY LOW BATTERY The internal battery voltage of the jump starter is too low for a jump start. Please charge the jump starter via dock charging immediately. REVERSE The clamps are reverse connected to the vehicle POLARITY... -
Page 10: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS Q. Why does my jump starter take so long to charge on the dock? A. Lower charging rate extends the battery life. The built-in charging circuit provides gentle charge with cell- balancing for the internal Lithium Iron Phosphate (LiFePO ) battery. -
Page 12: Warranty Statement
WARRANTY STATEMENT Brown & Watson International Pty Ltd (“BWI”) of 1500 Ferntree Gully Road, Knoxfield, Vic., telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue will under normal use and service be free of failures in material and workmanship for a period of two (2) years from the date of the original purchase by the customer as marked on the invoice.
