4.3 Preparation

PM200 system is designed with the concept of 'Plug in and Play' in mind. To complete the easy installation, a screw driver and DC cables
are required. Follow Table 5 recommendation for minimum wiring size.
CURRENT MINIMUM CABLE SIZE
0–5A 1.0mm or 18 AWG
2
5–10A 2.0mm or 14 AWG
2
10–15A 3.0mm or 13 AWG
2
15–20A 4.0mm or 11 AWG
2
20–25A 5.0mm or 10 AWG
2
25–30A 6.0mm or 9 AWG
2
Table 7 Minimum cable size

4.4 Connection

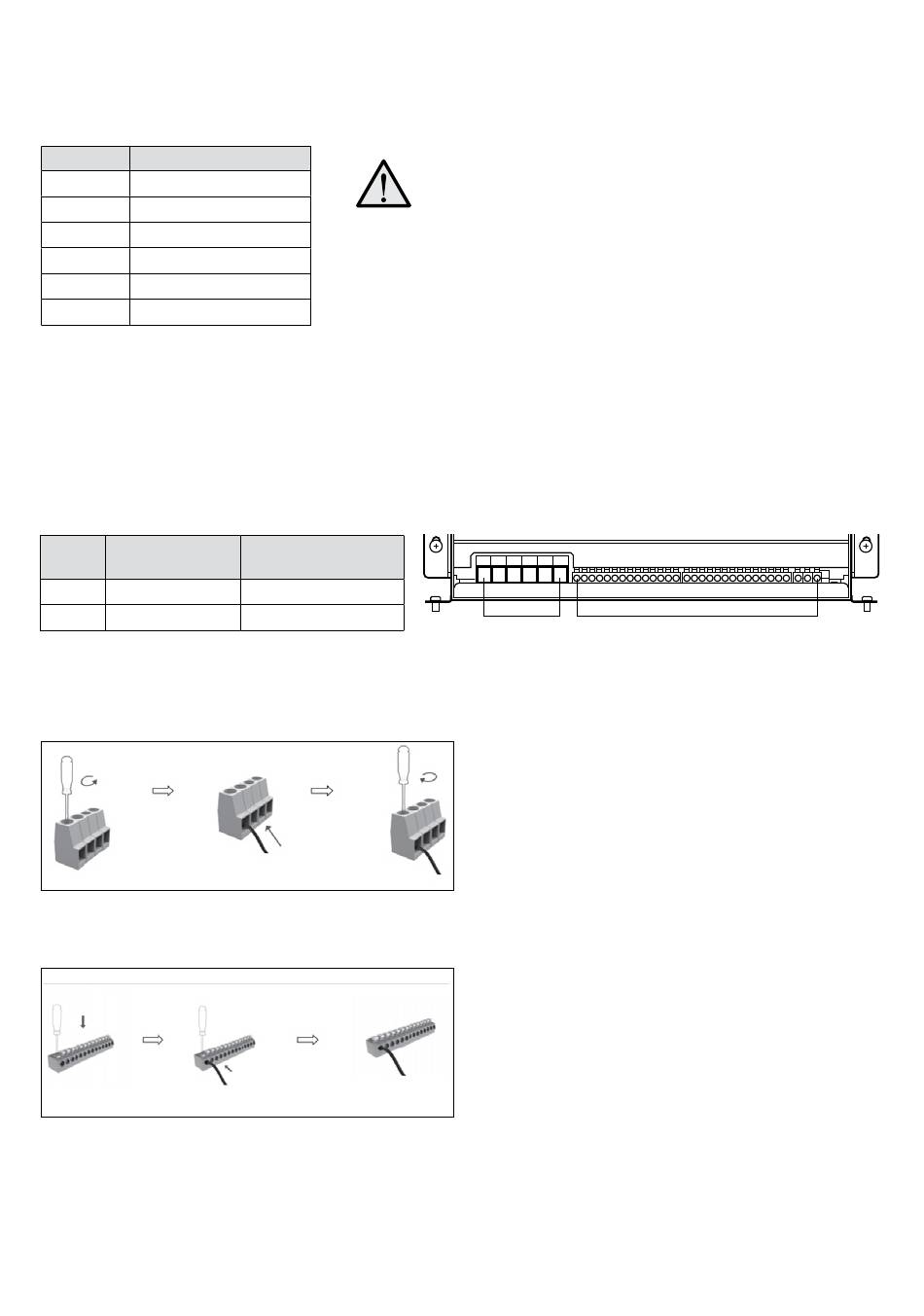

PM200 unit is designed with a spring and screw terminal. Please refer to following illustration below.
Each type of terminal is designed to fit a different range of cables.
TYPE TERMINAL MODEL
NUMBER
Type 1 ERTB10-10.16
Type 2 Wago804-114
Table 8 Recommended terminal and cable gauge
TYPE 1
Figure 19 Connection of Terminal Type 1
TYPE 2
Figure 20 Connection of Terminal Type 2
SUITABLE CABLE
GAUGE
0.5mm – 10mm
2 2
0.25mm – 2.5mm
2 2
When running cables, if they pass through panels or wall, ensure the
cables are protected from damage by sharp edges. In such cases, it is
recommended to use cable glands.
Recommendation is to install the PM200 as close to the service battery as
possible to minimize voltage drop and ensure accurate charging.
