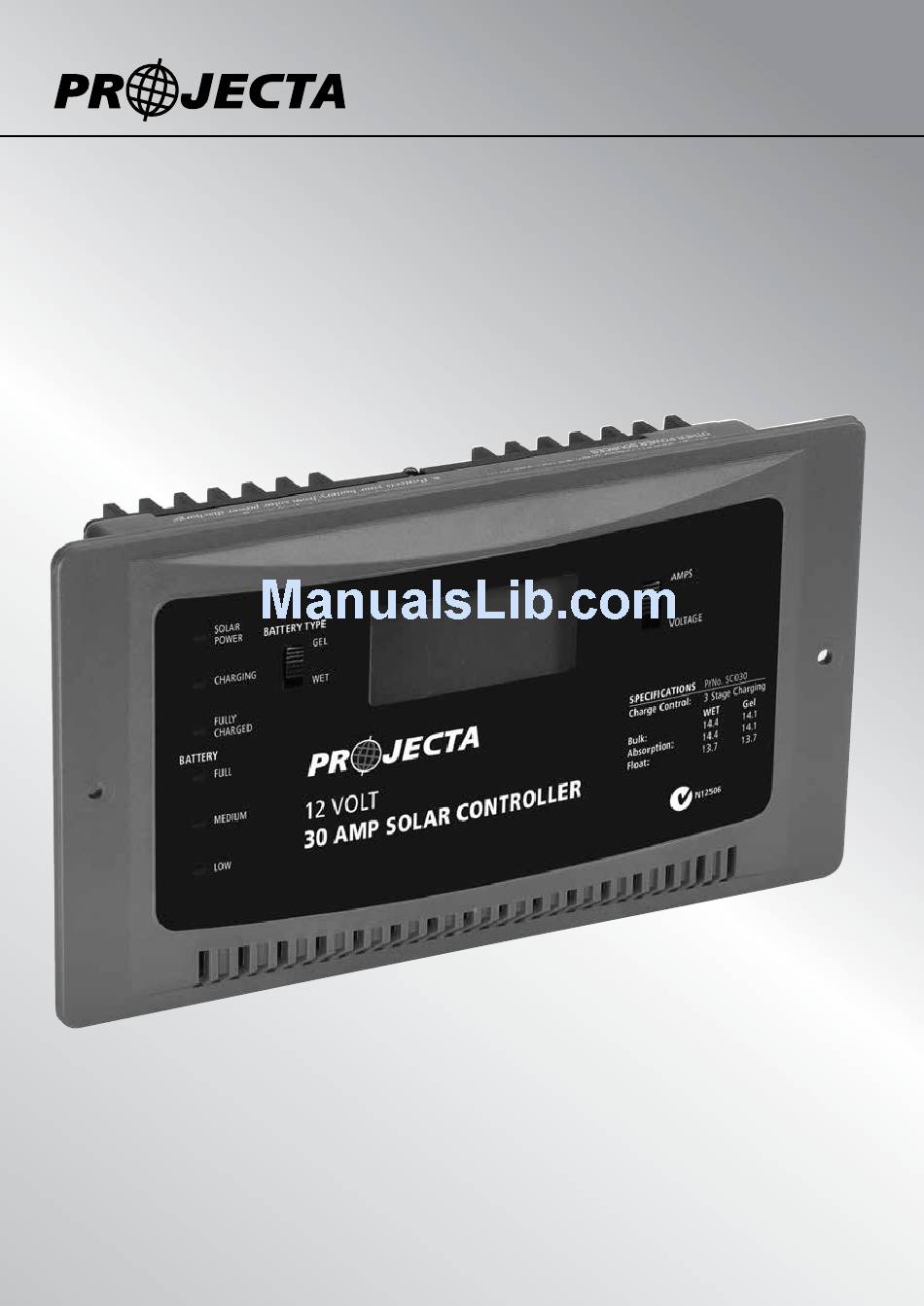

- Page 1 12 VOLT 30 AMP AUTOMATIC SOLAR CHARGE CONTROLLER P/No. SC030...
-
Page 2: Important Safety Information
• Do not exceed the total limit of the solar controller (360W/30A) FEATURES 3 STAGE CHARGING Ideal for deep cycle batteries the SC030 delivers 3 stage charging, maximising battery life and performance. • Maintains your battery ready for use • Safe to leave permanently connected •... -
Page 3: Product Overview
PRODUCT OVERVIEW Battery type LCD display selection Battery charging status Voltage & AMPs display L.E.D indicators Mounting holes Battery charge level L.E.D indicators SPECIFICATIONS Type Automatic Input 12V Solar Panel Maximum Input 25V DC, 30A Battery Maximum Panel Size 360W Size (mm) 181 x 104 x 47 Approvals... -
Page 4: Installation
INSTALLATION The charge controller is designed to be mounted flush with the wall. Flush mounting requires a rectangular cutout in the mounting surface with sufficient space (50–75mm) depth behind, to accommodate the controller and wiring. The charge controller may also be mounted to the wall without making a cutout. This is the quickest and easiest mounting procedure, however, the controller will be raised from the wall. -
Page 5: Operation
Please pay close attention to the following wire specifications WIRE SIZE Refer to the “WIRE SIZE” chart below to determine the minimum size wire needed for each connection. When using heavy stranded wire, you may need to divide the ends into two groups and straddle the screw on the terminal block. -
Page 6: Maintenance
Status Bulk Charge Charge Complete Conditions LED (BLUE) LED (GREEN) Bulk Charge Indicates the battery is charging. Power is being allowed to pass through to the battery. Solar Power Flashes Indicates the solar panel voltage Weak is too low when in Bulk Charge mode or insufficient sunlight. -
Page 7: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS Q. Why wont my battery charge? A. Solar panel may be sized incorrectly. A panel with a larger output is required. You may add on to existing panels by wiring the additional in parallel with the existing panel. Usage may be too high. -
Page 8: Warranty Statement
WARRANTY STATEMENT Applicable only to product sold in Australia Brown & Watson International Pty Ltd of 1500 Ferntree Gully Road, Knoxfield, Vic., telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue (save and except for all bulbs and lenses whether made of glass or some other substance) will under normal use and service be free of failures in material and workmanship for a period of one (1) year (unless this period has been extended as indicated elsewhere) from the date of the original purchase by the consumer as marked...
