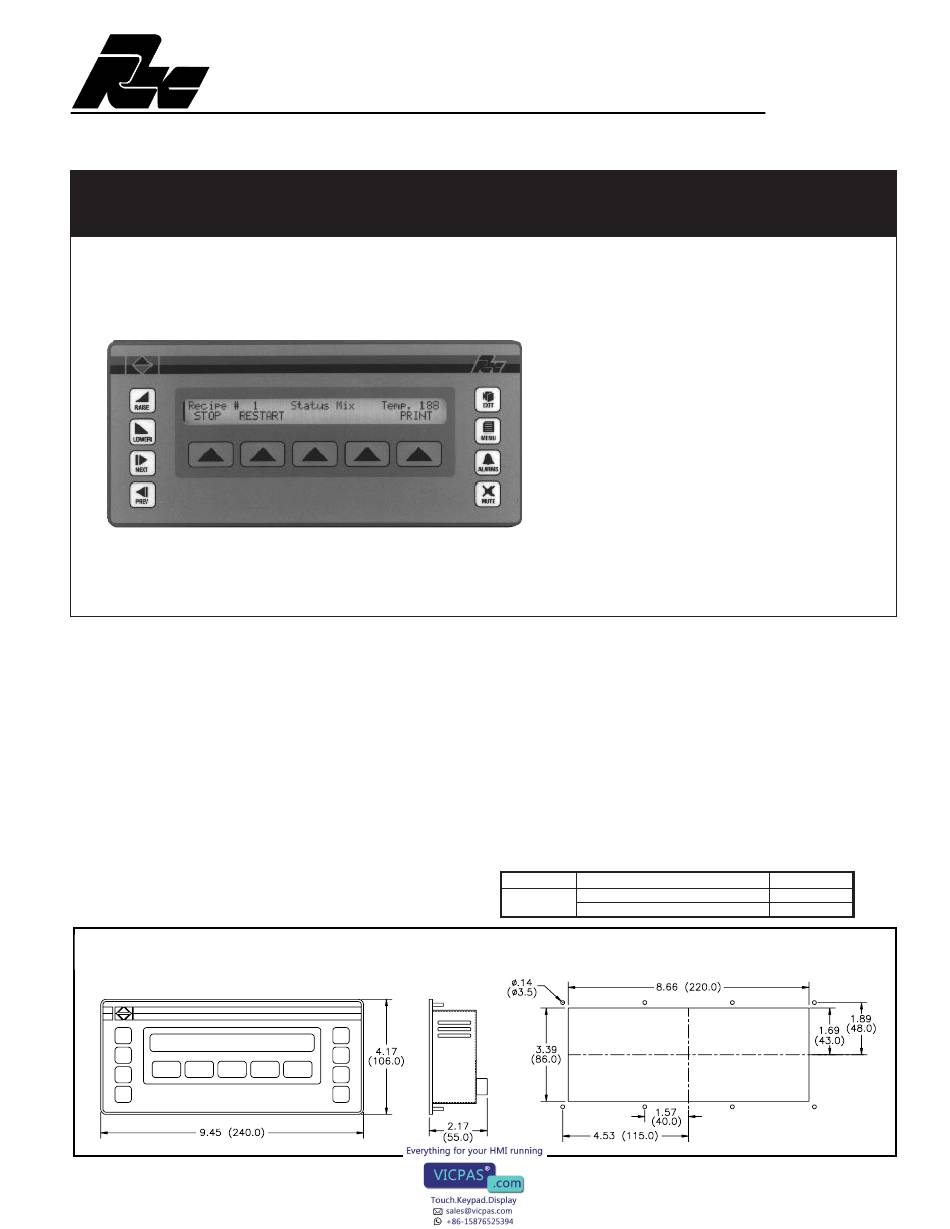

red lion CL-15 Instruction Manual

RED LION CONTROLS
INTERNATIONAL HEADQUARTERS
20 Willow Springs Circle, York, Pa. 17402, (717) 767-6511 FAX: (717) 764-0839
Web site- http://www.redlion-controls.com
Operator Interface Terminals

DESCRIPTION

The CL-15 from the Paradigm Range of operator interfaces meets the ever
increasing demands of industry for powerful easy-to-use terminals. Both
hardware and software are designed to allow the user to easily upgrade and take
full advantage of our continuing development and improvements to our
products.

SPECIFICATIONS

1. POWER REQUIREMENTS: 11 min. to 30 max. VDC @ 3.0 W
Power Up Current: 2.5 A for 1 msec. max.
Must use a Class 2 or SELV rated power supply.
2. DISPLAY: 2 lines of 40 characters, 5 mm high liquid crystal display with
bright LED backlight (with on/off software control)
3. KEYPAD: 5 screen legendable soft keys, raise, lower, next, previous, exit,
menu, alarms and mute keys, all with Tactile feedback.
4. MEMORY: 128 K (64 K user) battery backed RAM (Battery life expectancy
10 years). Optional factory fit expansion to 256 K (192 K user).
DIMENSIONS "In inches (mm)"
E-mail- sales@redlion-controls.com
EUROPEAN HEADQUARTERS
892 Plymouth Road, Slough, Berkshire SL1 4LP
ENGLAND +44 1753 696888 FAX: +44 1753 696339

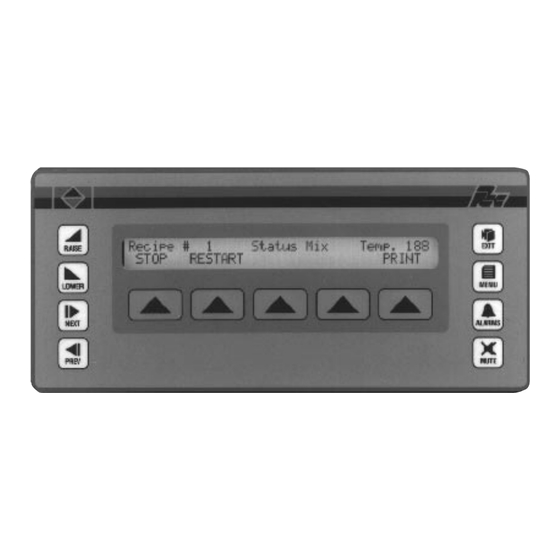

MODEL CL-15
2 X 40 LCD OPERATOR TERMINAL
2 LINE X 40 CHARACTER LIQUID CRYSTAL
l
DISPLAY WITH LED BACKLIGHT
250 ALARM POINT LOGGER
l
RECIPE HANDLING
l
COMPREHENSIVE REPORT GENERATION
l
UNLIMITED PASSWORD PROTECTION
l
REAL TIME CLOCK, BATTERY BACKED
l
EXPRESSION EVALUATION
l
32 BIT / FLOATING POINT MATH
l
DIRECT, NETWORK ( One family of PLCs ) OR
l
MODEM LINK TO PLC CONTROL SYSTEM
NEMA 4/IP65 STEEL ENCLOSURE
l
CE COMPLIANT
l
5. SERIAL PORTS: One RS-232 for PC or printer connection, one RS232 and
one RS485 for PLC connection up to 19200 Baud.
6. PHYSICAL DIMENSIONS: L = 240 mm, H = 160 mm, D = 55 mm.
7. CONSTRUCTION: Metal enclosure with NEMA 4/IP65 front plate when
correctly fitted with the gasket provided. This unit is rated for NEMA 4/IP65
indoor use. Installation Category I, Pollution Degree 2
8. FIELD CONNECTIONS: Removable screw terminal blocks.
9. ENVIRONMENTAL CONDITIONS:
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 80°C
Operating and Storage Humidity: 80% max. relative humidity
(non-condensing) from 0°C to 40°C.
Altitude: Up to 2000 meters
10. WEIGHT: 1.6 lbs. (0.72 Kg)
ORDERING INFORMATION
MODEL NO. DESCRIPTION
LCD, 2 X 40, 5 Soft keys, 128 K memory
CL-15
LCD, 2 X 40, 5 Soft keys, 256 K memory
1
BULLETIN NO. CL15-A
DRAWING NO. LP0419
REVISED 11/98
PART NUMBER
CL150000
CL150010
PANEL CUT-OUT
