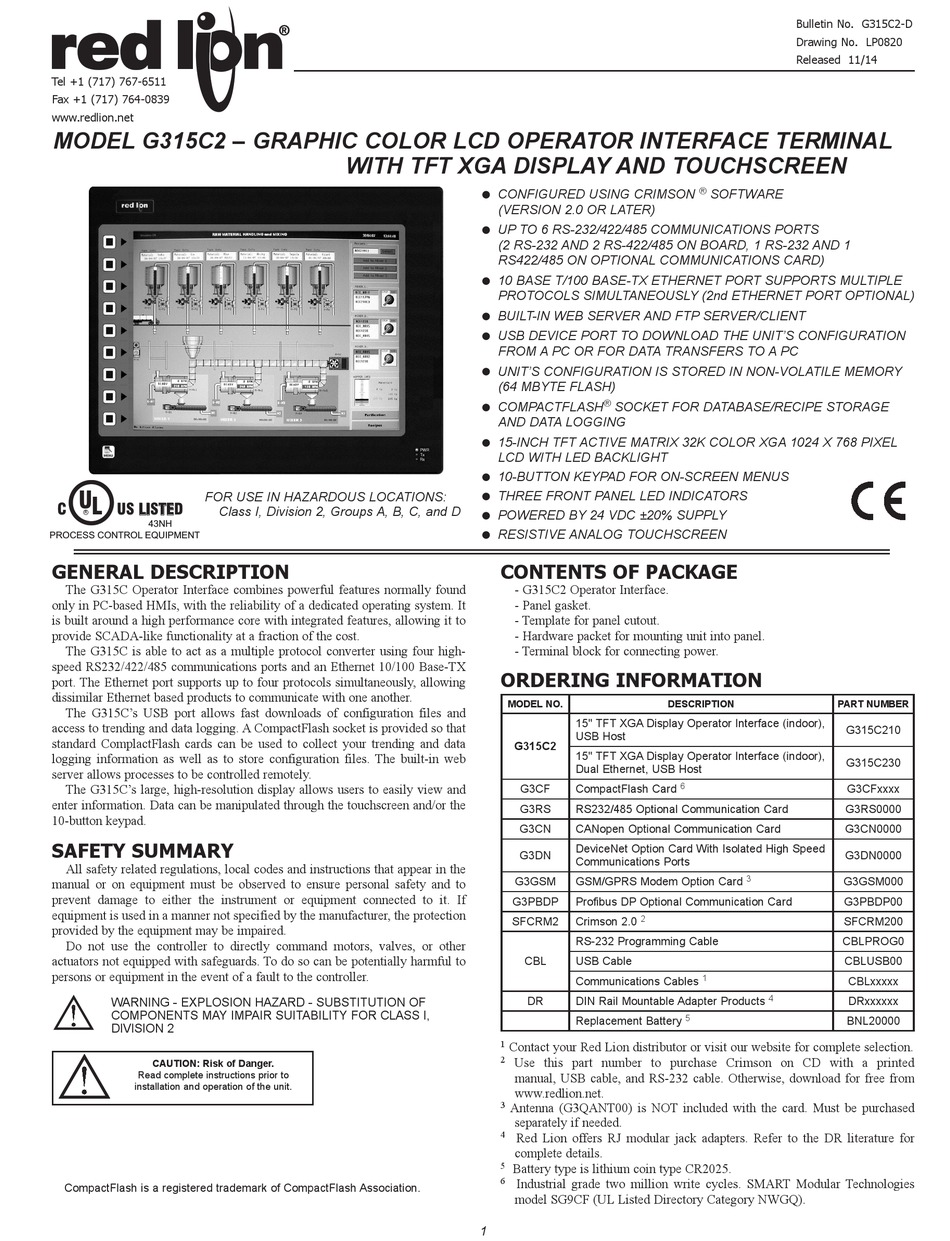

MODEL G315C2 – GRAPHIC COLOR LCD OPERATOR INTERFACE TERMINAL
U L
FOR USE IN HAZARDOUS LOCATIONS:
C US LISTED
Class I, Division 2, Groups A, B, C, and D
R
43NH
PROCESS CONTROL EQUIPMENT

GENERAL DESCRIPTION

The G315C Operator Interface combines powerful features normally found
only in PC-based HMIs, with the reliability of a dedicated operating system. It
is built around a high performance core with integrated features, allowing it to
provide SCADA-like functionality at a fraction of the cost.
The G315C is able to act as a multiple protocol converter using four high-
speed RS232/422/485 communications ports and an Ethernet 10/100 Base-TX
port. The Ethernet port supports up to four protocols simultaneously, allowing
dissimilar Ethernet based products to communicate with one another.
The G315C's USB port allows fast downloads of configuration files and
access to trending and data logging. A CompactFlash socket is provided so that
standard ComplactFlash cards can be used to collect your trending and data
logging information as well as to store configuration files. The built-in web
server allows processes to be controlled remotely.
The G315C's large, high-resolution display allows users to easily view and
enter information. Data can be manipulated through the touchscreen and/or the
10-button keypad.

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
CompactFlash is a registered trademark of CompactFlash Association.
WITH TFT XGA DISPLAY AND TOUCHSCREEN
CONFIGURED USING CRIMSON

(VERSION 2.0 OR LATER)
UP TO 6 RS-232/422/485 COMMUNICATIONS PORTS

(2 RS-232 AND 2 RS-422/485 ON BOARD, 1 RS-232 AND 1
RS422/485 ON OPTIONAL COMMUNICATIONS CARD)
10 BASE T/100 BASE-TX ETHERNET PORT SUPPORTS MULTIPLE

PROTOCOLS SIMULTANEOUSLY (2nd ETHERNET PORT OPTIONAL)
BUILT-IN WEB SERVER AND FTP SERVER/CLIENT

USB DEVICE PORT TO DOWNLOAD THE UNIT'S CONFIGURATION

FROM A PC OR FOR DATA TRANSFERS TO A PC
UNIT'S CONFIGURATION IS STORED IN NON-VOLATILE MEMORY

(64 MBYTE FLASH)
COMPACTFLASH

AND DATA LOGGING
15-INCH TFT ACTIVE MATRIX 32K COLOR XGA 1024 X 768 PIXEL

LCD WITH LED BACKLIGHT
10-BUTTON KEYPAD FOR ON-SCREEN MENUS

THREE FRONT PANEL LED INDICATORS

POWERED BY 24 VDC ±20% SUPPLY

RESISTIVE ANALOG TOUCHSCREEN


CONTENTS OF PACKAGE

- G315C2 Operator Interface.
- Panel gasket.
- Template for panel cutout.
- Hardware packet for mounting unit into panel.
- Terminal block for connecting power.

ORDERING INFORMATION

MODEL NO.
G315C2
G3CF
G3RS
G3CN
G3DN
G3GSM
G3PBDP
SFCRM2
CBL
1
Contact your Red Lion distributor or visit our website for complete selection.
2
Use this part number to purchase Crimson on CD with a printed
manual, USB cable, and RS-232 cable. Otherwise, download for free from
www.redlion.net.
3
Antenna (G3QANT00) is NOT included with the card. Must be purchased
separately if needed.
4
Red Lion offers RJ modular jack adapters. Refer to the DR literature for
complete details.
5
Battery type is lithium coin type CR2025.
6
Industrial grade two million write cycles. SMART Modular Technologies
model SG9CF (UL Listed Directory Category NWGQ).
1
®
®
SOCKET FOR DATABASE/RECIPE STORAGE
DESCRIPTION
15" TFT XGA Display Operator Interface (indoor),
USB Host
15" TFT XGA Display Operator Interface (indoor),
Dual Ethernet, USB Host
6
CompactFlash Card
RS232/485 Optional Communication Card
CANopen Optional Communication Card
DeviceNet Option Card With Isolated High Speed
Communications Ports
GSM/GPRS Modem Option Card
Profibus DP Optional Communication Card
2
Crimson 2.0
RS-232 Programming Cable
USB Cable
1
Communications Cables
DR DIN Rail Mountable Adapter Products
5
Replacement Battery
Bulletin No. G315C2-D
Drawing No. LP0820
Released 11/14
SOFTWARE
PART NUMBER
G315C210
G315C230
G3CFxxxx
G3RS0000
G3CN0000
G3DN0000
3
G3GSM000
G3PBDP00
SFCRM200
CBLPROG0
CBLUSB00
CBLxxxxx
4
DRxxxxxx
BNL20000
