GRAPHITE® - OPERATOR INTERFACE TERMINALS WITH PLUG-IN I/O MODULE
U L
C
US LISTED
IND. CONT. EQ.
E302106
U L
FOR USE IN HAZARDOUS LOCATIONS:
C
US
Class I, Division 2, Groups A, B, C, and D
LISTED
Class II, Division 2, Groups F and G
Class III, Division 2
IND.CONT. EQ.
E317425
T4
II 3 G Ex ic nA IIC T4 Gc
II 3 D Ex tc IIIC T135°C Dc
-20°C ≤ T
AMB
DEMKO 14 ATEX 1387X
IECEx UL 15.0035X
GENERAL DESCRIPTION
®
The Graphite
HMI merges two of our most highly successful product
platforms into a single, extremely flexible solution. The nexus of the
product is the operator interface panel which offers the award winning
technology of our G3 HMI including protocol conversion, data logging
and remote access. Programming the unit is easy using drag and drop
selection within our Crimson 3 software allowing complete set-up in
minutes. Add to all that capability, plug-in modules which provide I/O
functions within the framework of the operator interface panel. The I/O
modules are similar to our Modular Controller product providing easy
interface of sensors, discreet outputs and communication modules. The
result is a complete industrial solution that connects, monitors, and
controls while providing real time displays.

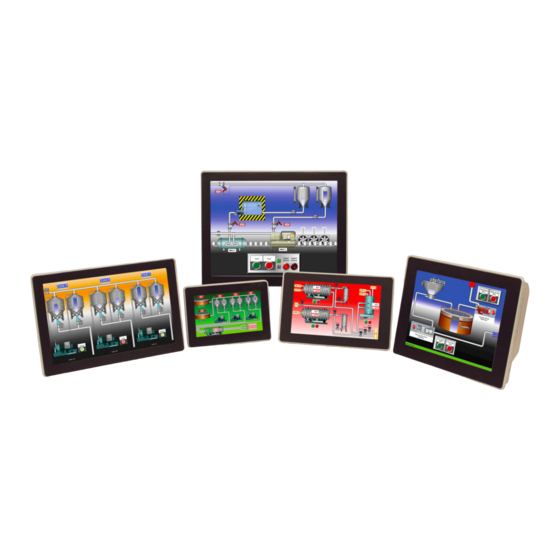

The operator interface panels are available in 5 different panel sizes;
7", 9", 10", 12" and 15", with the 7", 9" and 12" displays in the wide
screen format. The displays are full color touch panels in VGA, SVGA or
XGA formats and operate as full touchscreens. The all-aluminum
construction provides very robust packaging that can withstand even the
most demanding environments. If your application calls for outdoor use,
we have three models, 7", 10" and 12" that are designed for just that
requirement.
The units are able to communicate with many types of hardware
simultaneously using high-speed RS-232/485 communication ports and
Ethernet 10 Base T/100 Base-TX communications. Currently over 250
drivers are selectable in the Crimson Software which allows easy data
mapping to PLCs, PCs, and SCADA Systems. In addition, the Graphite
HMI features USB host capability for fast downloads of configuration files
and access to trending and data logging information.
CAPABILITY
≤ 60°C
Authorised Distributor
ADITECH ICT PVT. LTD.
803,sigma IT park, plat no 203/204 Rabale, TTC Industrial area,Thane-Belapur road,
Rabale-400701 Tel: 9819884527
PROTOCOL CONVERSION FEATURE CONVERTS NUMEROUS
PROTOCOLS SIMULTANEOUSLY
OVER 300 BUILT-IN DRIVERS ALLOWS EASY DATA MAPPING
TO PLCS, PCS, AND SCADA SYSTEMS
BUILT-IN WEB SERVER ALLOWS REMOTE VIEW OR CONTROL
FROM ANY INTERNET CONNECTED PC OR SMART PHONE
SYNCS DATA LOGS TO FTP SERVERS AND MICROSOFT SQL
®
SERVER
PROVIDES EMAIL AND SMS TEXT MESSAGE ALERTS (Requires
GMHSPA module)
CONFIGURED USING CRIMSON
UP TO 4 FULLY ISOLATED SERIAL COMMUNICATION PORTS,
(2 RS-232 and 1 RS-422/485)
10 BASE T/100 BASE-TX ETHERNET CONNECTION CAN
CONNECT TO AN UNLIMITED NUMBER OF DEVICES VIA TEN
PROTOCOLS SIMULTANEOUSLY
EASY TO ADD I/O CAPABILITY WITH GRAPHITE PLUG-IN
MODULES
ALUMINUM CASE CONSTRUCTION FOR BOTH THE OPERATOR
INTERFACE TERMINAL AND THE I/O MODULES
CONTENTS OF PACKAGE
- Operator Interface
- Hardware packet for mounting unit into panel
- Terminal block for connecting power
- Panel gasket
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear
in the manual or on equipment must be observed to ensure personal
safety and to prevent damage to either the instrument or equipment
connected to it. If equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be
impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially
harmful to persons or equipment in the event of a fault to the unit.
CAUTION: Risk of Danger.
WARNING - EXPLOSION HAZARD - DO NOT D
EQUIPMENT UNLESS POWER HAS BEEN SW
Read complete instructions prior to installation
and operation of the unit.
OR AREA IS KNOWN TO BE NON-HAZARDOU
WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT
WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT
EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF
EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF
OR AREA IS KNOWN TO BE NON-HAZARDOUS.
OR AREA IS KNOWN TO BE NON-HAZARDOUS.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2.
Email:sales@aditech.in Website:www.aditech.in
Bulletin No. GRAPH-K
Drawing No. LP0918
Released 2019-08-30
®
3 SOFTWARE

Advertisement

loading
Need help?

Need help?

Do you have a question about the GRAPHITE G07C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for red lion GRAPHITE G07C

  • Page 1 Inside US: +1 (877) 432-9908 Bulletin No. GRAPH-K Outside US: +1 (717) 767-6511 Drawing No. LP0918 www.redlion.net Released 2019-08-30 GRAPHITE® - OPERATOR INTERFACE TERMINALS WITH PLUG-IN I/O MODULE CAPABILITY • PROTOCOL CONVERSION FEATURE CONVERTS NUMEROUS PROTOCOLS SIMULTANEOUSLY • OVER 300 BUILT-IN DRIVERS ALLOWS EASY DATA MAPPING TO PLCS, PCS, AND SCADA SYSTEMS •...
  • Page 2 Bulletin No. GRAPH-K Released 2019-08-30 Drawing No. LP0918 SPECIFICATIONS 1. POWER REQUIREMENTS: Vibration to IEC 68-2-6: Operational 5-500 Hz, 4 g Must use a Class 2 circuit according to National Electrical Code (NEC), Shock to IEC 68-2-27: Operational 40 g (10 g, modules w/relays) NFPA-70 or Canadian Electrical Code (CEC), Part I, C22.1 or a Operating and Storage Humidity: 0 to 85% max.
  • Page 3 Released 2019-08-30 Bulletin No. GRAPH-K Drawing No. LP0918 DIMENSIONS IN inches (mm) 7.70 (195.5) 2.00 (50.8) 7.9 (202) 2.97 (76) 5.51 (139.9) (146) Module sold separately (MOUNTING CLIPS INSTALLED) 10.06 (255.6) 10.3 (262) 2.06 (52.4) 2.97 (76) 6.47 (164.4) (171) Module sold separately (MOUNTING CLIPS INSTALLED)
  • Page 4 Bulletin No. GRAPH-K Released 2019-08-30 Drawing No. LP0918 OPERATOR INTERFACE INSTALLATION MOUNTING INSTRUCTIONS FOOT MAY BE REMOVED For hazardous location installation the following shall be taken into FOR THICKER PANEL consideration: INSTALLATIONS - When used in a Zone 22 environment, the device shall be panel mounted in at least Zone 22 IECEx/ATEX-Certified tool accessible This operator interface primarily...
  • Page 5 Released 2019-08-30 Bulletin No. GRAPH-K Drawing No. LP0918 PANEL CUT-OUT VESA MOUNT (MIS-D 75) DIMENSIONS 10.197 (259.0) 1.48 (37.5) 2.95 (75) 2.95 (75) 7.931 (201.4) 4X R.10 (2.5) MAX. All tolerances ±.059" (±1.5 mm) (22.1) PANEL CUT-OUT VESA MOUNT (MIS-D 75) DIMENSIONS 11.458 (291.0) 1.48 (37.5) 2.95 (75)
  • Page 6 Most in the Specifications of their Product Bulletin. The total power available Red Lion products with solid state outputs have internal zener diode for modules is listed in the specifications of the Graphite host.
  • Page 7: Ethernet Communications

    Red Lion’s website. New cables and Note: All Red Lion devices connect A to A and B to B. Refer to drivers are added on a regular basis. If making your own cable, refer to www.redlion.net for additional information.
  • Page 8 Released 2019-08-30 Drawing No. LP0918 Examples of RS485 2-Wire Connections DH485 COMMUNICATIONS The Graphite’s RS422/485 COMMS port can also be used for Allen Bradley DH485 communications. GRAPHITE TO RED LION RJ11 GRAPHITE TO RED LION RJ45 Gxx:RJ45 Name RLC:RJ11 Name...
  • Page 9 Released 2019-08-30 Bulletin No. GRAPH-K Drawing No. LP0918 G10 PORT PIN OUTS POWER AUXILIARY RS232 RS485 RS232 USB HOST ETHERNET DEVICE ETHERNET PORT A (PGM) PORT A PORT B PORT A PORT B AUXILIARY ETHERNET USB HOST (NIC) TYPE B ETHERNET (NIC) [OPTIONAL]...
  • Page 10 If for any reason you have trouble operating, connecting, or simply Crimson software is available as a no charge download from Red have questions concerning your new Graphite unit, contact Red Lion’s Lion’s website. The latest version of the software is always available from technical support.
  • Page 11: Ordering Information

    Released 2019-08-30 Bulletin No. GRAPH-K Drawing No. LP0918 ORDERING INFORMATION TYPE DESCRIPTION PART NUMBER Graphite 7" Color Touch Screen, Indoor G07C0000 Graphite 7" Color Touch Screen, Indoor/Outdoor G07S0000 Graphite 9" Color Touch Screen, Indoor G09C0000 Graphite 9" Color Touch Screen, Indoor, Additional Ethernet Por G09C1000 Graphite 10"...
  • Page 12 Drawing No. LP0918 LIMITED WARRANTY (a) Red Lion Controls Inc. (the “Company”) warrants that all Products shall be free from defects in material and workmanship under normal use for the period of time provided in “Statement of Warranty Periods” (available at www.redlion.net) current at the time of shipment of the Products (the “Warranty Period”).
