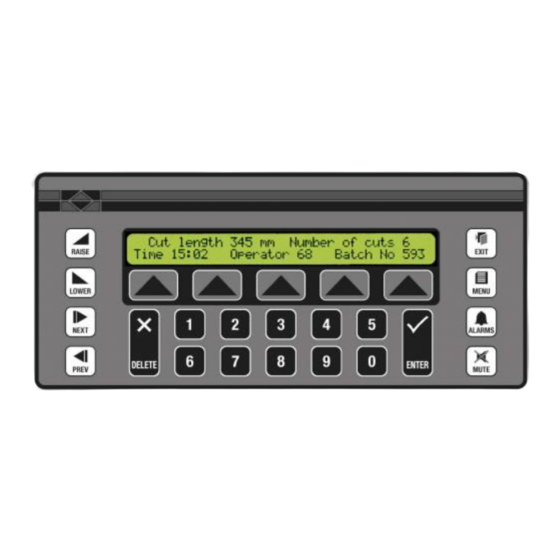

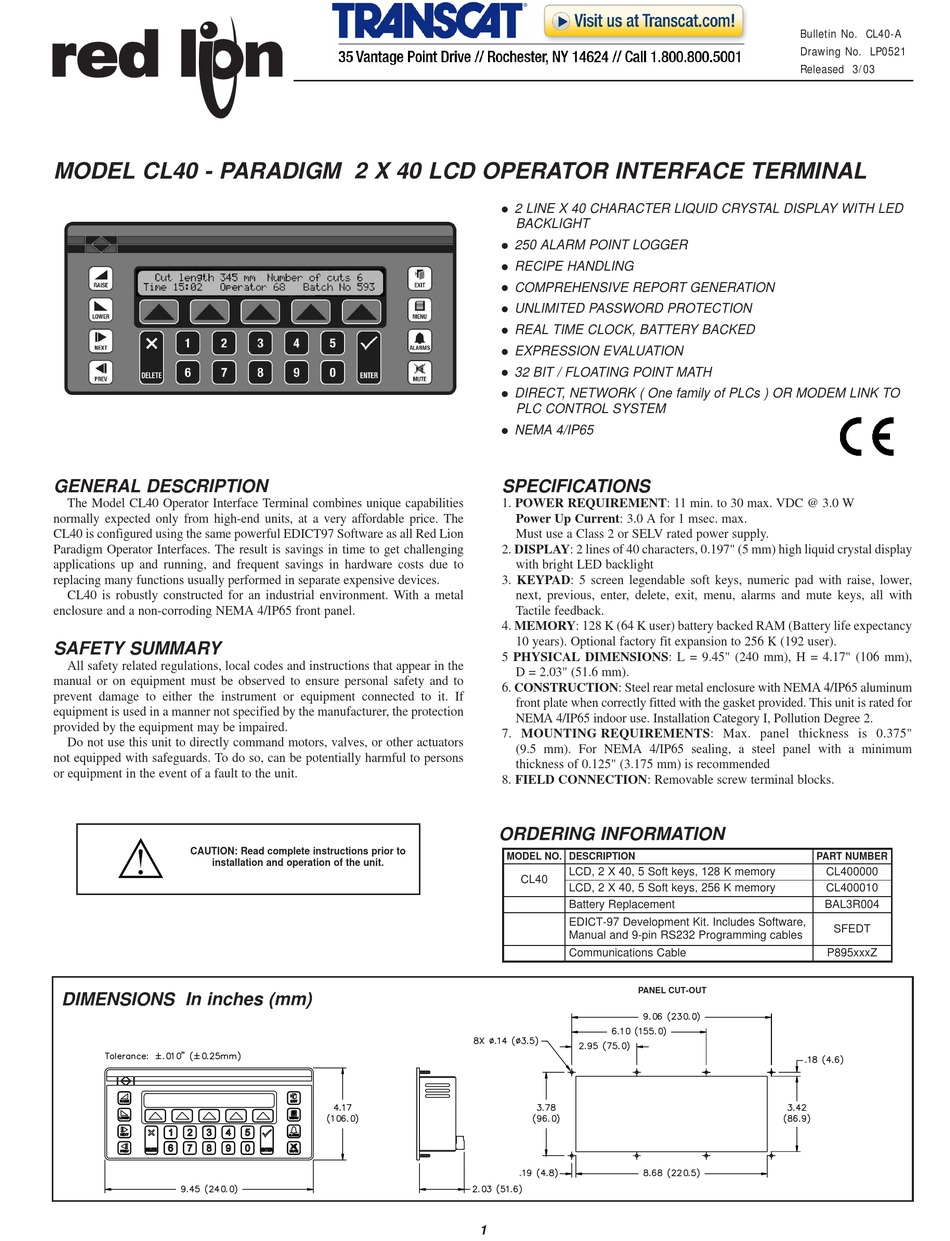

MODEL CL40 - PARADIGM 2 X 40 LCD OPERATOR INTERFACE TERMINAL
GENERAL DESCRIPTION
The Model CL40 Operator Interface Terminal combines unique capabilities
normally expected only from high-end units, at a very affordable price. The
CL40 is configured using the same powerful EDICT97 Software as all Red Lion
Paradigm Operator Interfaces. The result is savings in time to get challenging
applications up and running, and frequent savings in hardware costs due to
replacing many functions usually performed in separate expensive devices.
CL40 is robustly constructed for an industrial environment. With a metal
enclosure and a non-corroding NEMA 4/IP65 front panel.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use this unit to directly command motors, valves, or other actuators
not equipped with safeguards. To do so, can be potentially harmful to persons
or equipment in the event of a fault to the unit.
CAUTION: Read complete instructions prior to
installation and operation of the unit.
DIMENSIONS In inches (mm)
2 LINE X 40 CHARACTER LIQUID CRYSTAL DISPLAY WITH LED
!
BACKLIGHT
250 ALARM POINT LOGGER
!
RECIPE HANDLING
!
COMPREHENSIVE REPORT GENERATION
!
UNLIMITED PASSWORD PROTECTION
!
REAL TIME CLOCK, BATTERY BACKED
!
EXPRESSION EVALUATION
!
32 BIT / FLOATING POINT MATH
!
DIRECT, NETWORK ( One family of PLCs ) OR MODEM LINK TO
!
PLC CONTROL SYSTEM
NEMA 4/IP65
!
SPECIFICATIONS
1. POWER REQUIREMENT: 11 min. to 30 max. VDC @ 3.0 W
Power Up Current: 3.0 A for 1 msec. max.
Must use a Class 2 or SELV rated power supply.
2. DISPLAY: 2 lines of 40 characters, 0.197" (5 mm) high liquid crystal display
with bright LED backlight
3. KEYPAD: 5 screen legendable soft keys, numeric pad with raise, lower,
next, previous, enter, delete, exit, menu, alarms and mute keys, all with
Tactile feedback.
4. MEMORY: 128 K (64 K user) battery backed RAM (Battery life expectancy
10 years). Optional factory fit expansion to 256 K (192 user).
5 PHYSICAL DIMENSIONS: L = 9.45" (240 mm), H = 4.17" (106 mm),
D = 2.03" (51.6 mm).
6. CONSTRUCTION: Steel rear metal enclosure with NEMA 4/IP65 aluminum
front plate when correctly fitted with the gasket provided. This unit is rated for
NEMA 4/IP65 indoor use. Installation Category I, Pollution Degree 2.
7. MOUNTING REQUIREMENTS: Max. panel thickness is 0.375"
(9.5 mm). For NEMA 4/IP65 sealing, a steel panel with a minimum
thickness of 0.125" (3.175 mm) is recommended
8. FIELD CONNECTION: Removable screw terminal blocks.
ORDERING INFORMATION
MODEL NO. DESCRIPTION
LCD, 2 X 40, 5 Soft keys, 128 K memory
CL40
LCD, 2 X 40, 5 Soft keys, 256 K memory
Battery Replacement
EDICT-97 Development Kit. Includes Software,
Manual and 9-pin RS232 Programming cables
Communications Cable
PANEL CUT-OUT
1
Bulletin No. CL40-A
Drawing No. LP0521
Released 3/03
PART NUMBER
CL400000
CL400010
BAL3R004
SFEDT
P895xxxZ
