red lion GRAPHITE G07C Manual

Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
GRAPHITE™ SERIES - OPERATOR INTERFACE TERMINALS WITH
U L
C US LISTED
R
IND. CONT. EQ.
34AD
U L
FOR USE IN HAZARDOUS LOCATIONS:
C US
R
Class I, Division 2, Groups A, B, C, and D
LISTED
Class II, Division 2, Groups F and G
Class III, Division 2
IND.CONT. EQ.
3PWL
II 3 G Ex ic nA IIC T4 Gc
II 3 D Ex tc IIIC T135°C Dc
DEMKO 14 ATEX 1387X
IECEx UL 15.0035X
GENERAL DESCRIPTION
The Graphite™ Series merges two of our most highly successful product
platforms into a single, extremely flexible solution. The nexus of the product is
the operator interface panel which offers the award winning technology of our
G3 HMI Series including protocol conversion, data logging and remote access.
Programming the unit is easy using drag and drop selection within our Crimson
3 software allowing complete set-up in minutes. Add to all that capability, plug-
in modules which provide I/O functions within the framework of the operator
interface panel. The I/O modules are similar to our Modular Controller Series
product providing easy interface of sensors, discreet outputs and communication
modules. The result is a complete industrial solution that connects, monitors,
and controls while providing real time displays.

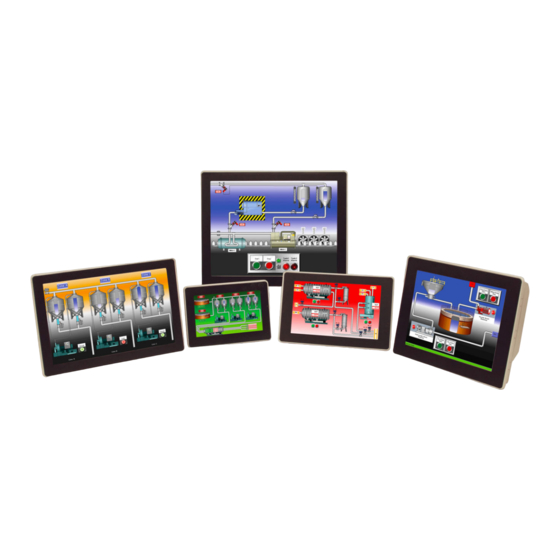

The operator interface panels are available in 5 different panel sizes; 7", 9",
10", 12" and 15", with the 7", 9" and 12" displays in the wide screen format. The
displays are full color touch panels in VGA, SVGA or XGA formats and operate
as full touchscreens. The all-aluminum construction provides very robust
packaging that can withstand even the most demanding environments. If your
application calls for outdoor use, we have two models, 7"and 10" that are
designed for just that requirement.
The units are able to communicate with many types of hardware simultaneously
using high-speed RS-232/485 communication ports and Ethernet 10 Base T/100
Base-TX communications. Currently over 250 drivers are selectable in the
Crimson Software which allows easy data mapping to PLCs, PCs, and SCADA
Systems. In addition, the Graphite Series features USB host capability for fast
downloads of configuration files and access to trending and data logging
information.
PLUG-IN I/O MODULE CAPABILITY
z PROTOCOL CONVERSION FEATURE CONVERTS NUMEROUS
PROTOCOLS SIMULTANEOUSLY
z OVER 250 BUILT-IN DRIVERS ALLOWS EASY DATA MAPPING TO
PLCS, PCS, AND SCADA SYSTEMS
z BUILT-IN WEB SERVER ALLOWS REMOTE VIEW OR CONTROL
FROM ANY INTERNET CONNECTED PC OR SMART PHONE
z SYNCS DATA LOGS TO FTP SERVERS AND MICROSOFT SQL
®
SERVER
z PROVIDES EMAIL AND SMS TEXT MESSAGE ALERTS
z CONFIGURED USING CRIMSON
z UP TO 4 FULLY ISOLATED SERIAL COMMUNICATION PORTS,
(2 RS-232 AND 1 RS-422/485)
z 10 BASE T/100 BASE-TX ETHERNET CONNECTION CAN
CONNECT TO AN UNLIMITED NUMBER OF DEVICES VIA TEN
PROTOCOLS SIMULTANEOUSLY
z EASY TO ADD I/O CAPABILITY WITH GRAPHITE PLUG-IN
MODULES
z ALUMINUM CASE CONSTRUCTION FOR BOTH THE OPERATOR
INTERFACE TERMINAL AND THE I/O MODULES
CONTENTS OF PACKAGE
- Operator Interface.
- Panel gasket.
- Hardware packet for mounting unit into panel.
- Terminal block for connecting power.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller.
CAUTION: Risk Of Danger.
Read complete instructions prior to
installation and operation of the unit.
WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT
EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF
OR AREA IS KNOWN TO BE NON-HAZARDOUS.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2
1
Bulletin No. GRAPH-G
Drawing No. LP0918
Released 05/15
®
3 SOFTWARE
CAUTION: Risk of electric shock.
