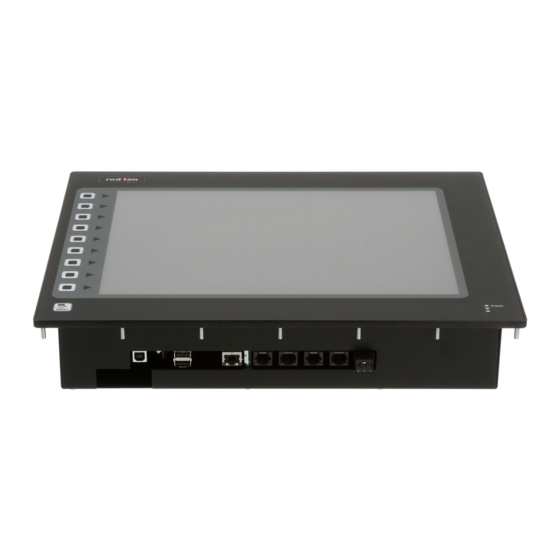

Graphic color lcd operator interface terminal with tft xga display and touchscreen

Advertisement

Quick Links

Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

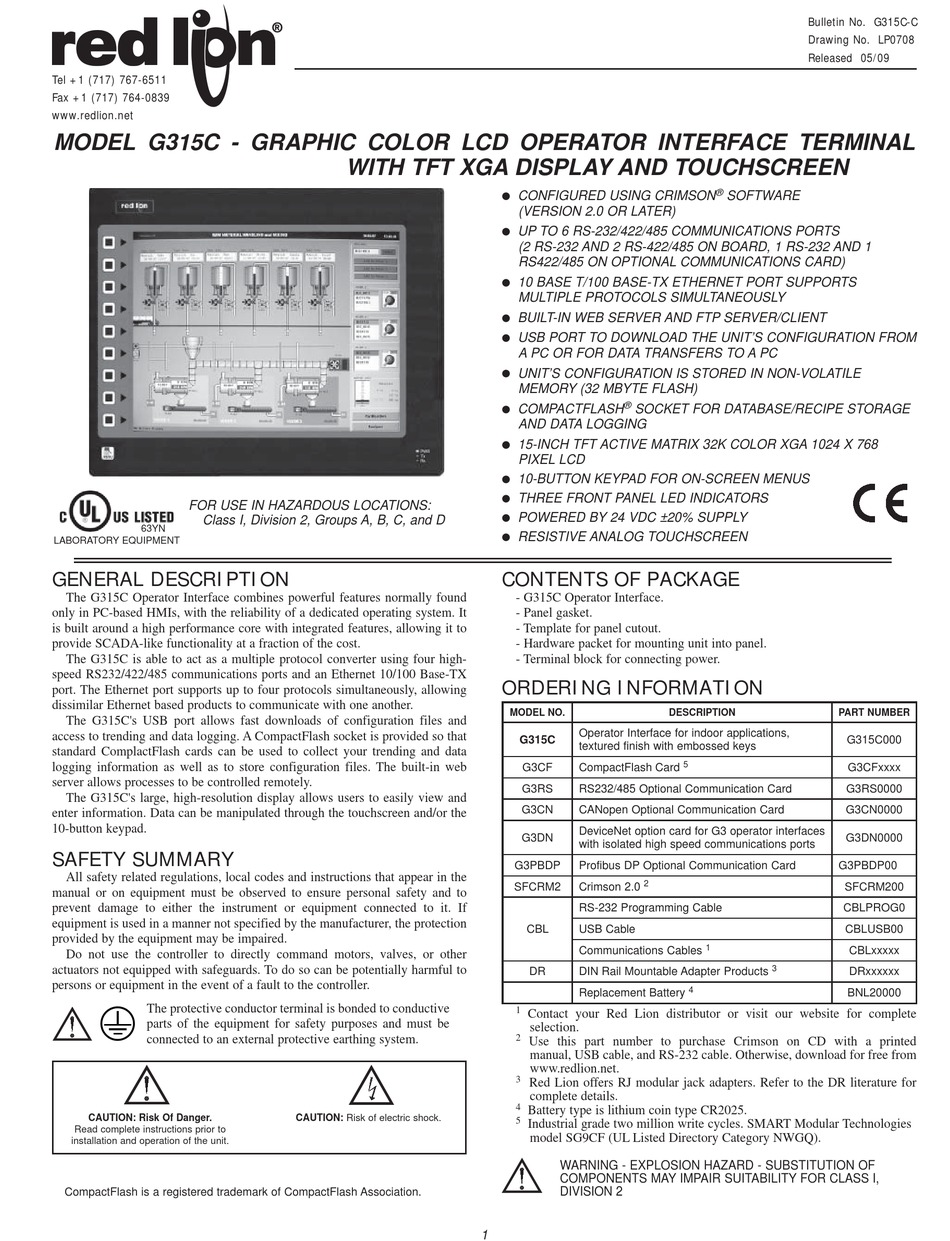

MODEL G315C - GRAPHIC COLOR LCD OPERATOR INTERFACE TERMINAL
FOR USE IN HAZARDOUS LOCATIONS:
Class I, Division 2, Groups A, B, C, and D
63YN
LABORATORY EQUIPMENT

GENERAL DESCRIPTION

The G315C Operator Interface combines powerful features normally found
only in PC-based HMIs, with the reliability of a dedicated operating system. It
is built around a high performance core with integrated features, allowing it to
provide SCADA-like functionality at a fraction of the cost.
The G315C is able to act as a multiple protocol converter using four high-
speed RS232/422/485 communications ports and an Ethernet 10/100 Base-TX
port. The Ethernet port supports up to four protocols simultaneously, allowing
dissimilar Ethernet based products to communicate with one another.
The G315C's USB port allows fast downloads of configuration files and
access to trending and data logging. A CompactFlash socket is provided so that
standard ComplactFlash cards can be used to collect your trending and data
logging information as well as to store configuration files. The built-in web
server allows processes to be controlled remotely.
The G315C's large, high-resolution display allows users to easily view and
enter information. Data can be manipulated through the touchscreen and/or the
10-button keypad.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller.
The protective conductor terminal is bonded to conductive
parts of the equipment for safety purposes and must be
connected to an external protective earthing system.
CAUTION: Risk Of Danger.
Read complete instructions prior to
installation and operation of the unit.
CompactFlash is a registered trademark of CompactFlash Association.
WITH TFT XGA DISPLAY AND TOUCHSCREEN
CAUTION: Risk of electric shock.
CONFIGURED USING CRIMSON
(VERSION 2.0 OR LATER)
UP TO 6 RS-232/422/485 COMMUNICATIONS PORTS
(2 RS-232 AND 2 RS-422/485 ON BOARD, 1 RS-232 AND 1
RS422/485 ON OPTIONAL COMMUNICATIONS CARD)
10 BASE T/100 BASE-TX ETHERNET PORT SUPPORTS
MULTIPLE PROTOCOLS SIMULTANEOUSLY
BUILT-IN WEB SERVER AND FTP SERVER/CLIENT
USB PORT TO DOWNLOAD THE UNIT'S CONFIGURATION FROM
A PC OR FOR DATA TRANSFERS TO A PC
UNIT'S CONFIGURATION IS STORED IN NON-VOLATILE
MEMORY (32 MBYTE FLASH)
®
COMPACTFLASH
SOCKET FOR DATABASE/RECIPE STORAGE
AND DATA LOGGING
15-INCH TFT ACTIVE MATRIX 32K COLOR XGA 1024 X 768
PIXEL LCD
10-BUTTON KEYPAD FOR ON-SCREEN MENUS
THREE FRONT PANEL LED INDICATORS
POWERED BY 24 VDC ±20% SUPPLY
RESISTIVE ANALOG TOUCHSCREEN
CONTENTS OF PACKAGE
- G315C Operator Interface.
- Panel gasket.
- Template for panel cutout.
- Hardware packet for mounting unit into panel.
- Terminal block for connecting power.

ORDERING INFORMATION

MODEL NO.
Operator Interface for indoor applications,
G315C
textured finish with embossed keys
G3CF
CompactFlash Card
G3RS
RS232/485 Optional Communication Card
G3CN
CANopen Optional Communication Card
DeviceNet option card for G3 operator interfaces
G3DN
with isolated high speed communications ports
G3PBDP
Profibus DP Optional Communication Card
2
SFCRM2
Crimson 2.0
RS-232 Programming Cable
CBL
USB Cable
Communications Cables
DR
DIN Rail Mountable Adapter Products
Replacement Battery
1
Contact your Red Lion distributor or visit our website for complete
selection.
2
Use this part number to purchase Crimson on CD with a printed
manual, USB cable, and RS-232 cable. Otherwise, download for free from
www.redlion.net.
3
Red Lion offers RJ modular jack adapters. Refer to the DR literature for
complete details.
4
Battery type is lithium coin type CR2025.
5
Industrial grade two million write cycles. SMART Modular Technologies
model SG9CF (UL Listed Directory Category NWGQ).
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2
1
Bulletin No. G315C-C
Drawing No. LP0708
Released 05/09
®
SOFTWARE
DESCRIPTION
PART NUMBER
G315C000
5
G3CFxxxx
G3RS0000
G3CN0000
G3DN0000
G3PBDP00
SFCRM200
CBLPROG0
CBLUSB00
1
3
4
BNL20000
CBLxxxxx
DRxxxxxx
