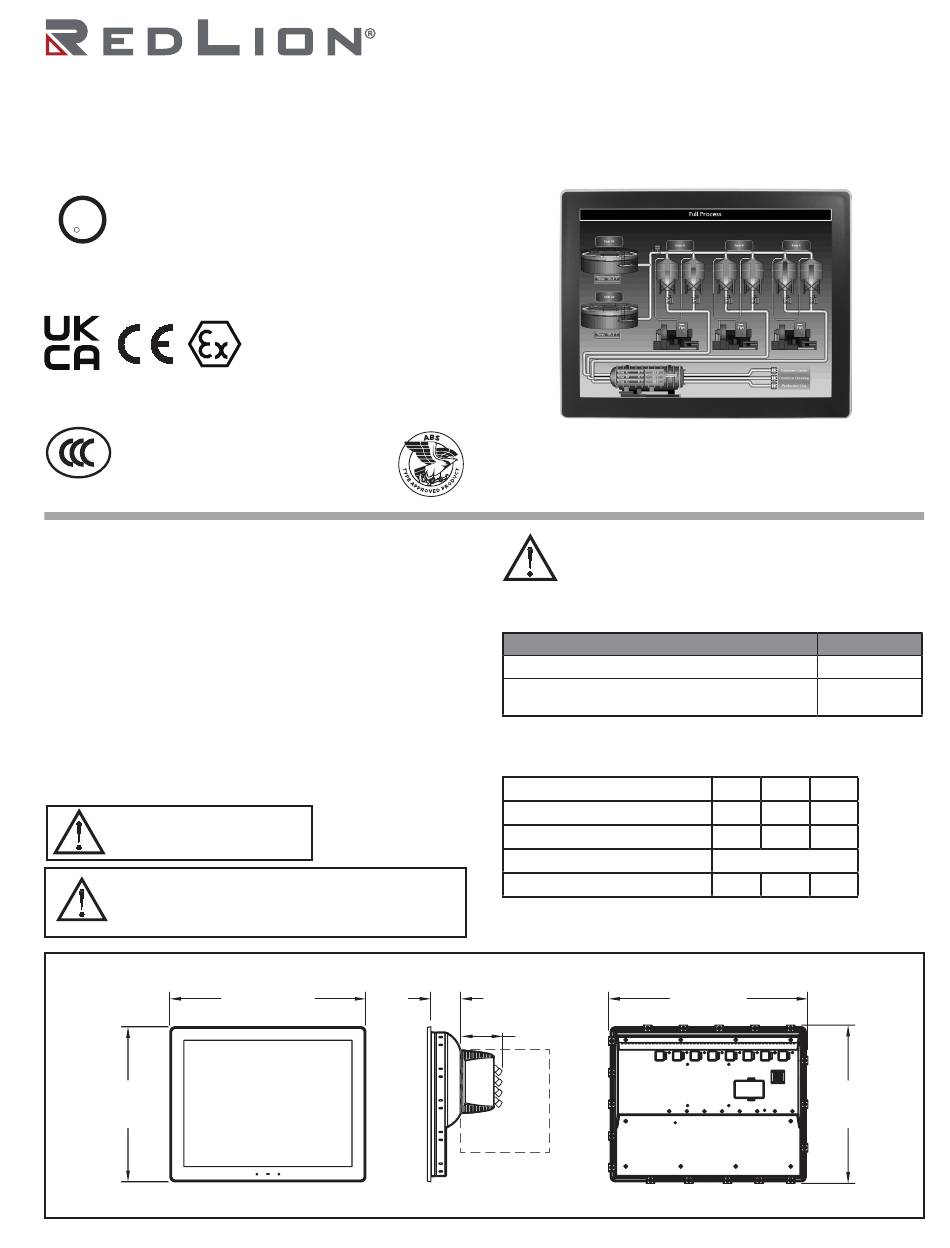

Model G15 - Graphite
Touchscreen Operator Interface Terminal
Installation Guide
FOR USE IN HAZARDOUS LOCATIONS:
U L
Class I, Division 2, Groups A, B, C, and D
C C
US
US
R
Class II, Division 2, Groups F and G
LISTED
Class III, Division 2
IND.CONT. EQ.
T4
E302106
E317425
Ex ic ec IIC T4 Gc
Ex tc IIIC T135°C Dc
See the Red Lion website at www.redlion.net for full user manual,
®
Crimson
software and software manual.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that
appear in this document or on equipment must be observed to
ensure personal safety and to prevent damage to either the
device or equipment connected to it.
Do not use these products to replace proper safety interlocking.
No software-based device (or any other solid-state device) should
ever be designed to be responsible for the maintenance of
personnel safety or consequential equipment not equipped with
safeguards. Red Lion disclaims any responsibility for damages,
either direct or consequential, that result from the use of this
equipment in a manner not specified.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
WARNING - EXPLOSION HAZARD - Do not disconnect
equipment unless power has been switched off or area is
known to be non-hazardous.
DIMENSIONS In inches (mm)
11.10
(281.8)
II 3 G Ex ic nA IIC T4 Gc
II 3 D Ex tc IIIC T135°C Dc
-20°C≤T
≤60°C
AMB
DEMKO 14 ATEX 1387X
IECEx UL 15.0035X
UL22UKEX2574X
14.03 (356.3)
®
Series 15" Color
WARNING - EXPLOSION HAZARD - Substitution of
components may impair suitability for Class I, Division 2
ORDERING INFORMATION
DESCRIPTION
15" Color Touch Screen, Indoor Use
15" Color Touch Screen, Indoor Use, Additional
Ethernet and Serial Port
SPECIFICATIONS
POWER:
Typical Power HMI only:
Maximum Power HMI only:
Available Power for Modules:
Max Power HMI with Module(s):
Must use a Class 2 circuit according to National Electrical Code
(NEC), NFPA-70 or Canadian Electrical Code (CEC), Part I, C22.1
2.14 (54.3)
2.97 (76)
Module sold
separately
1
Drawing No. LP0911
Input Voltage
10V
24V
18 W
18 W
23 W
24 W
33W
56 W
58 W
14.3 (363)
(MOUNTING CLIPS INSTALLED)
Bulletin No. G15-J
Revised 03/2023
PART NUMBER
G15C0000
G15C1100
30V
18 W
24 W
58W
11.3
(288)
