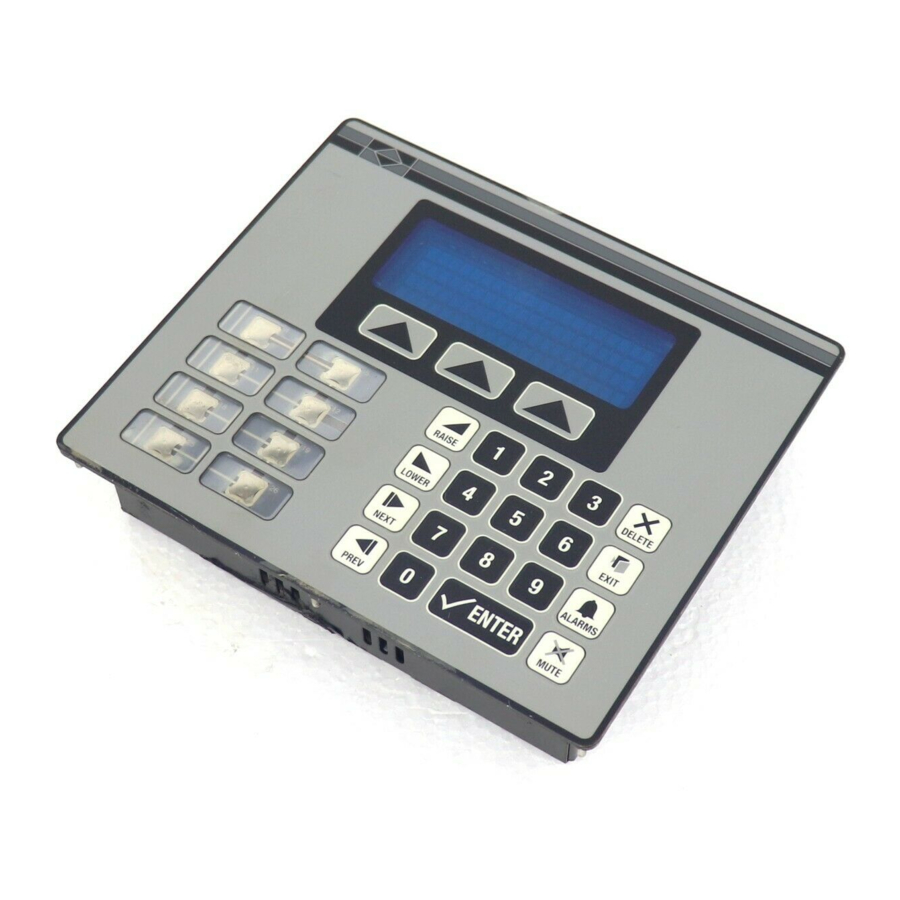

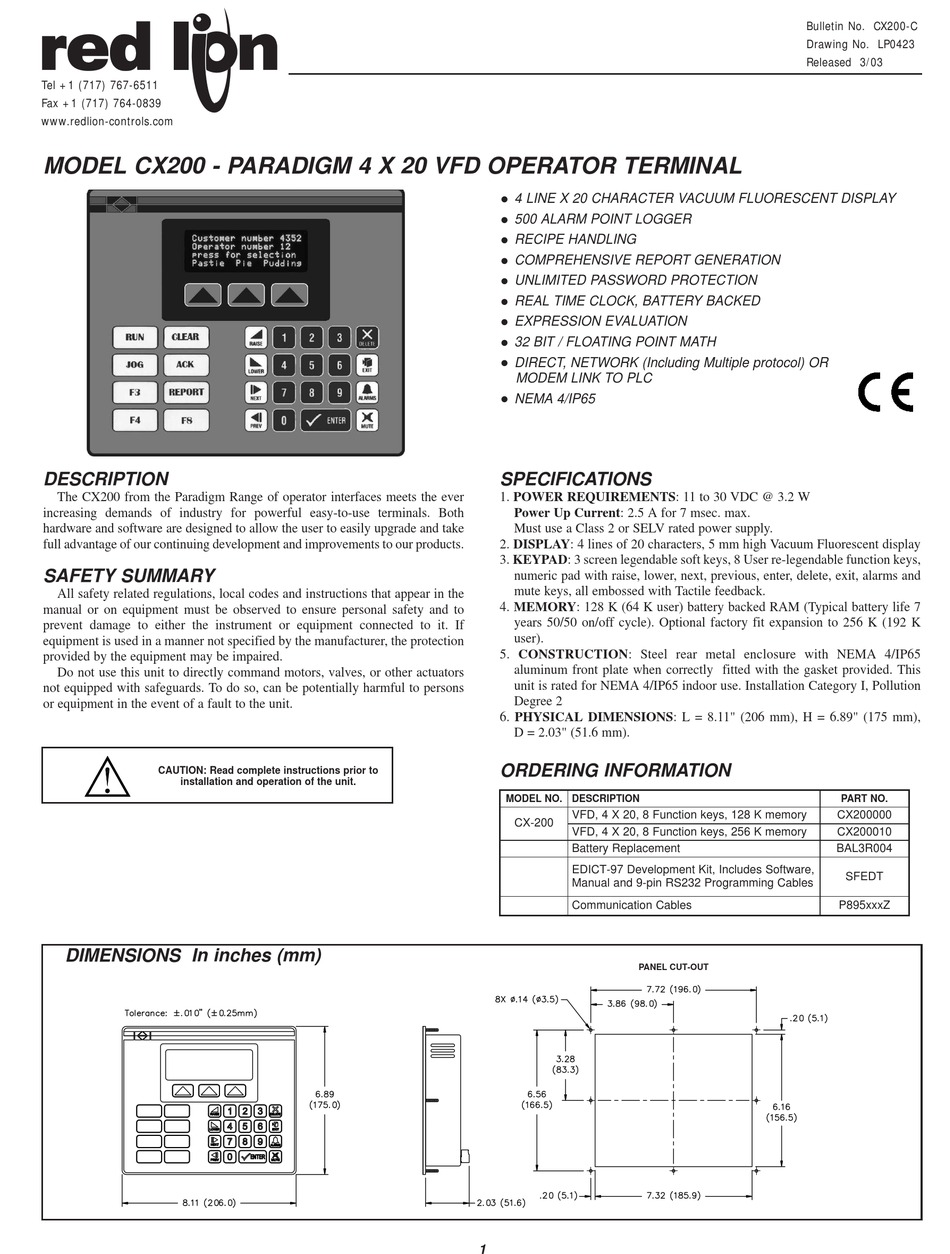

MODEL CX200 - PARADIGM 4 X 20 VFD OPERATOR TERMINAL

DESCRIPTION

The CX200 from the Paradigm Range of operator interfaces meets the ever
increasing demands of industry for powerful easy-to-use terminals. Both
hardware and software are designed to allow the user to easily upgrade and take
full advantage of our continuing development and improvements to our products.

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use this unit to directly command motors, valves, or other actuators
not equipped with safeguards. To do so, can be potentially harmful to persons
or equipment in the event of a fault to the unit.
CAUTION: Read complete instructions prior to
installation and operation of the unit.
DIMENSIONS In inches (mm)
4 LINE X 20 CHARACTER VACUUM FLUORESCENT DISPLAY
!
500 ALARM POINT LOGGER
!
RECIPE HANDLING
!
COMPREHENSIVE REPORT GENERATION
!
UNLIMITED PASSWORD PROTECTION
!
REAL TIME CLOCK, BATTERY BACKED
!
EXPRESSION EVALUATION
!
32 BIT / FLOATING POINT MATH
!
DIRECT, NETWORK (Including Multiple protocol) OR
!
MODEM LINK TO PLC
NEMA 4/IP65
!

SPECIFICATIONS

1. POWER REQUIREMENTS: 11 to 30 VDC @ 3.2 W
Power Up Current: 2.5 A for 7 msec. max.
Must use a Class 2 or SELV rated power supply.
2. DISPLAY: 4 lines of 20 characters, 5 mm high Vacuum Fluorescent display
3. KEYPAD: 3 screen legendable soft keys, 8 User re-legendable function keys,
numeric pad with raise, lower, next, previous, enter, delete, exit, alarms and
mute keys, all embossed with Tactile feedback.
4. MEMORY: 128 K (64 K user) battery backed RAM (Typical battery life 7
years 50/50 on/off cycle). Optional factory fit expansion to 256 K (192 K
user).
5. CONSTRUCTION: Steel rear metal enclosure with NEMA 4/IP65
aluminum front plate when correctly fitted with the gasket provided. This
unit is rated for NEMA 4/IP65 indoor use. Installation Category I, Pollution
Degree 2
6. PHYSICAL DIMENSIONS: L = 8.11" (206 mm), H = 6.89" (175 mm),
D = 2.03" (51.6 mm).

ORDERING INFORMATION

MODEL NO. DESCRIPTION
VFD, 4 X 20, 8 Function keys, 128 K memory
CX-200
VFD, 4 X 20, 8 Function keys, 256 K memory
Battery Replacement
EDICT-97 Development Kit, Includes Software,
Manual and 9-pin RS232 Programming Cables
Communication Cables
PANEL CUT-OUT
1
Bulletin No. CX200-C
Drawing No. LP0423
Released 3/03
PART NO.
CX200000
CX200010
BAL3R004
SFEDT
P895xxxZ
