DESCRIPTION

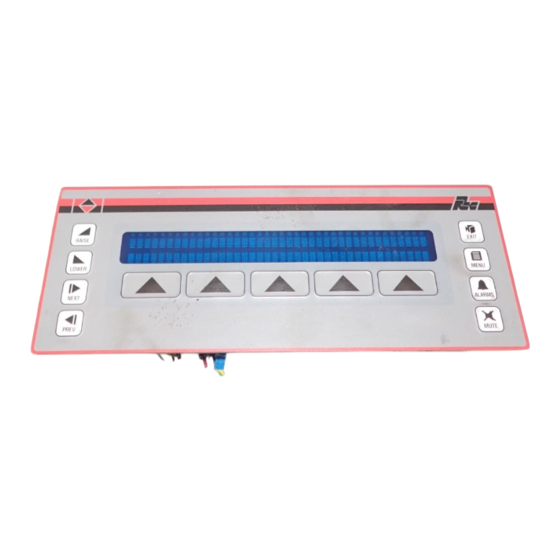

The CX-150 from the Paradigm Range of operator interfaces meets the ever
increasing demands of industry for powerful easy-to-use terminals. Both
hardware and software are designed to allow the user to easily upgrade and take
full advantage of our continuing development and improvements to our
products.
SPECIFICATIONS
1. POWER REQUIREMENTS: 11 min. to 30 max. VDC @ 4.7 W
Power Up Current: 2.5 A for 25 msec. max.
Must use a Class 2 or SELV rated power supply.
2. DISPLAY: 2 lines of 40 characters, 5 mm high Vacuum Fluorescent display
3. KEYPAD: 5 screen legendable soft keys, raise, lower, next, previous, exit,
menu, alarms and mute keys, all with Tactile feedback.
4. MEMORY: 128 K (64 K user) battery backed RAM (Battery life expectancy
10 years). Optional factory fit expansion to 256 K (192 K user).
5. SERIAL PORTS: One RS-232 for PC or printer connection, one RS232 and
one RS485 for PLC connection up to 19200 Baud. (Can be used as a three
port device for multiple protocol applications)
DIMENSIONS "In inches (mm)"
Operator Interface Terminals
MODEL CX-150
2 X 40 VFD OPERATOR TERMINAL
2 LINE X 40 CHARACTER VACUUM
l
FLUORESCENT DISPLAY
500 ALARM POINT LOGGER
l
RECIPE HANDLING
l
COMPREHENSIVE REPORT GENERATION
l
UNLIMITED PASSWORD PROTECTION
l
REAL TIME CLOCK, BATTERY BACKED
l
EXPRESSION EVALUATION
l
32 BIT / FLOATING POINT MATH
l
DIRECT, NETWORK (Including Multiple protocols)
l
OR MODEM LINK TO PLC
NEMA 4/IP65 STEEL ENCLOSURE
l
CE COMPLIANT
l
6. PHYSICAL DIMENSIONS: L = 285 mm, H = 106 mm, D = 57 mm.
7. CONSTRUCTION: Metal enclosure with NEMA 4/IP65 front plate when
correctly fitted with the gasket provided. This unit is rated for NEMA 4/IP65
indoor use. Installation Category I, Pollution Degree 2
8. FIELD CONNECTIONS: Removable screw terminal blocks.
9. ENVIRONMENTAL CONDITIONS:
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 80°C
Operating and Storage Humidity: 80% max. relative humidity
(non-condensing) from 0°C to 40°C.
Altitude: Up to 2000 meters
10. WEIGHT: 2.1 lbs. (0.95 Kg)
ORDERING INFORMATION
MODEL NO.
DESCRIPTION
VFD, 4 X 20, 8 Function keys, 128 K memory
CX-150
VFD, 4 X 20, 8 Function keys, 256 K memory
1
BULLETIN NO. CX150-A
DRAWING NO. LP0422
REVISED 11/98
PART NUMBER
CX150000
CX150010
PANEL CUT-OUT
