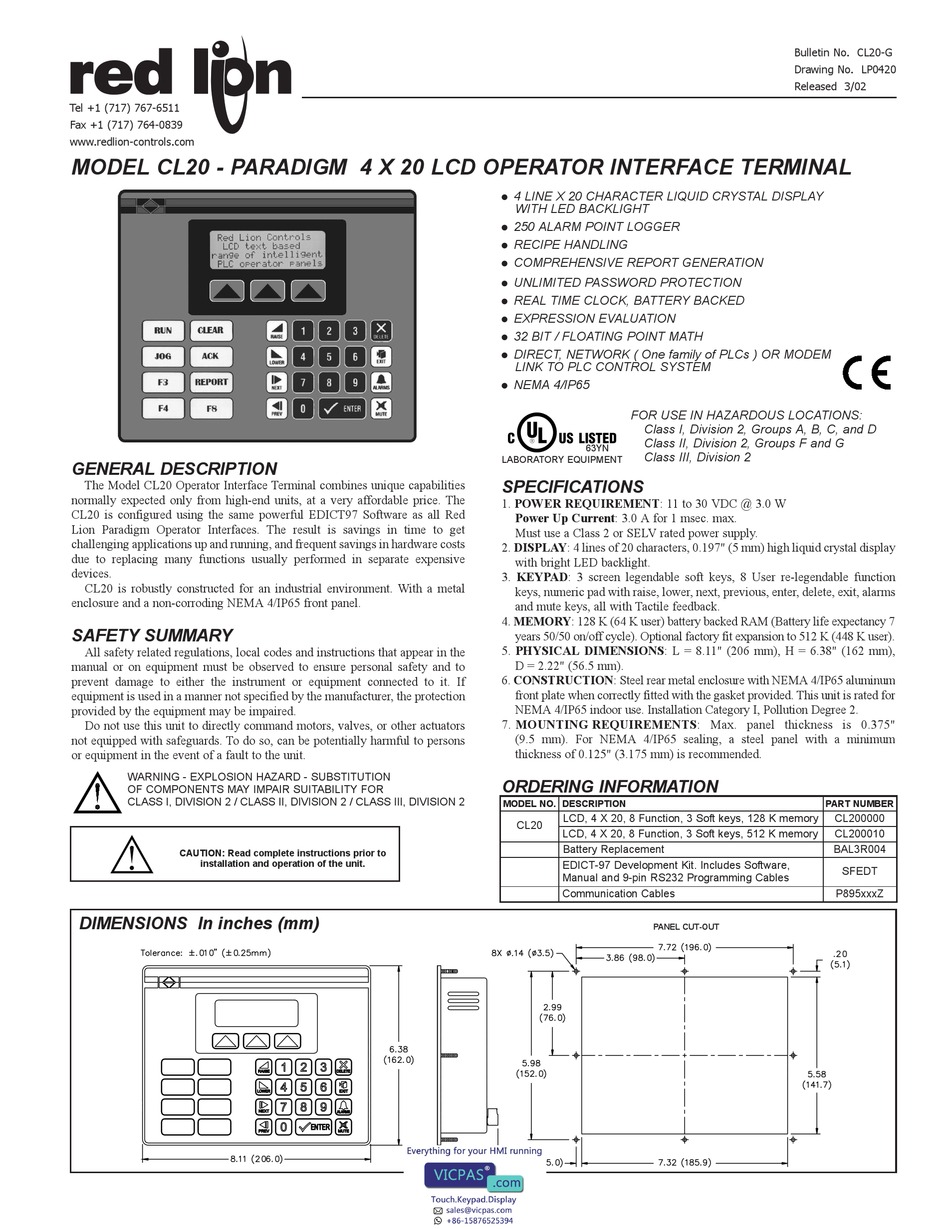

MODEL CL20 - PARADIGM 4 X 20 LCD OPERATOR INTERFACE TERMINAL

GENERAL DESCRIPTION

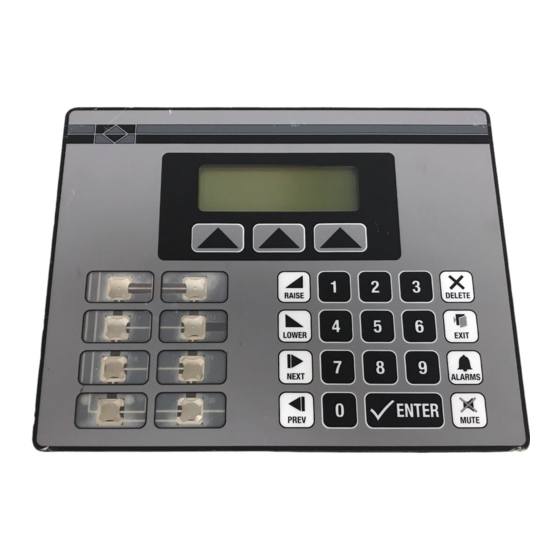

The Model CL20 Operator Interface Terminal combines unique capabilities
normally expected only from high-end units, at a very affordable price. The
CL20 is configured using the same powerful EDICT97 Software as all Red
Lion Paradigm Operator Interfaces. The result is savings in time to get
challenging applications up and running, and frequent savings in hardware costs
due to replacing many functions usually performed in separate expensive
devices.
CL20 is robustly constructed for an industrial environment. With a metal
enclosure and a non-corroding NEMA 4/IP65 front panel.

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use this unit to directly command motors, valves, or other actuators
not equipped with safeguards. To do so, can be potentially harmful to persons
or equipment in the event of a fault to the unit.
WARNING - EXPLOSION HAZARD - SUBSTITUTION
OF COMPONENTS MAY IMPAIR SUITABILITY FOR
CLASS I, DIVISION 2 / CLASS II, DIVISION 2 / CLASS III, DIVISION 2
CAUTION: Read complete instructions prior to
installation and operation of the unit.
DIMENSIONS In inches (mm)
4 LINE X 20 CHARACTER LIQUID CRYSTAL DISPLAY
!
WITH LED BACKLIGHT
250 ALARM POINT LOGGER
!
RECIPE HANDLING
!
COMPREHENSIVE REPORT GENERATION
!
UNLIMITED PASSWORD PROTECTION
!
REAL TIME CLOCK, BATTERY BACKED
!
EXPRESSION EVALUATION
!
32 BIT / FLOATING POINT MATH
!
DIRECT, NETWORK ( One family of PLCs ) OR MODEM
!
LINK TO PLC CONTROL SYSTEM
NEMA 4/IP65
!
FOR USE IN HAZARDOUS LOCATIONS:
Class I, Division 2, Groups A, B, C, and D
Class II, Division 2, Groups F and G
63YN
Class III, Division 2
LABORATORY EQUIPMENT

SPECIFICATIONS

1. POWER REQUIREMENT: 11 to 30 VDC @ 3.0 W
Power Up Current: 3.0 A for 1 msec. max.
Must use a Class 2 or SELV rated power supply.
2. DISPLAY: 4 lines of 20 characters, 0.197" (5 mm) high liquid crystal display
with bright LED backlight.
3. KEYPAD: 3 screen legendable soft keys, 8 User re-legendable function
keys, numeric pad with raise, lower, next, previous, enter, delete, exit, alarms
and mute keys, all with Tactile feedback.
4. MEMORY: 128 K (64 K user) battery backed RAM (Battery life expectancy 7
years 50/50 on/off cycle). Optional factory fit expansion to 512 K (448 K user).
5. PHYSICAL DIMENSIONS: L = 8.11" (206 mm), H = 6.38" (162 mm),
D = 2.22" (56.5 mm).
6. CONSTRUCTION: Steel rear metal enclosure with NEMA 4/IP65 aluminum
front plate when correctly fitted with the gasket provided. This unit is rated for
NEMA 4/IP65 indoor use. Installation Category I, Pollution Degree 2.
7. MOUNTING REQUIREMENTS: Max. panel thickness is 0.375"
(9.5 mm). For NEMA 4/IP65 sealing, a steel panel with a minimum
thickness of 0.125" (3.175 mm) is recommended.

ORDERING INFORMATION

MODEL NO. DESCRIPTION
LCD, 4 X 20, 8 Function, 3 Soft keys, 128 K memory
CL20
LCD, 4 X 20, 8 Function, 3 Soft keys, 512 K memory
Battery Replacement
EDICT-97 Development Kit. Includes Software,
Manual and 9-pin RS232 Programming Cables
Communication Cables
PANEL CUT-OUT
1
Bulletin No. CL20-G
Drawing No. LP0420
Released 3/02
PART NUMBER
CL200000
CL200010
BAL3R004
SFEDT
P895xxxZ
