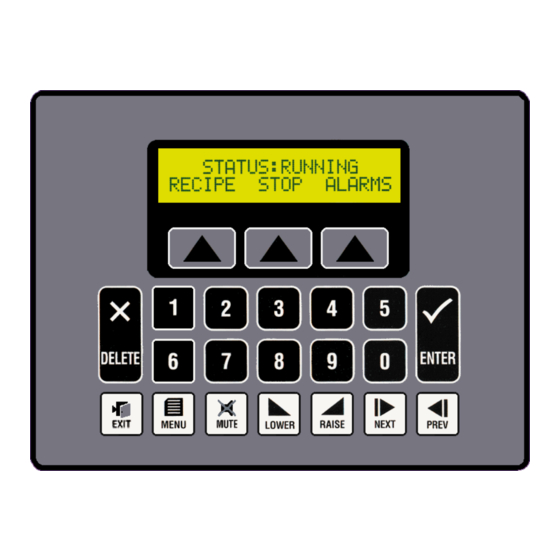

MODEL CL01 - PARADIGM 2 X 20 LCD OPERATOR INTERFACE TERMINAL
DESCRIPTION
The Paradigm operator interface Model CL01 was designed to meet the
industrial demands of application power, versatility, reliability, and ease of use.
The CL01 has provisions, common to all Paradigm Family products, allowing
for future product upgrades as new options and capabilities are developed.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use this unit to directly command motors, valves, or other actuators
not equipped with safeguards. To do so, can be potentially harmful to persons
or equipment in the event of a fault to the unit.
WARNING - EXPLOSION HAZARD - SUBSTITUTION
OF COMPONENTS MAY IMPAIR SUITABILITY FOR
CLASS I, DIVISION 2 / CLASS II, DIVISION 2 / CLASS III, DIVISION 2
CAUTION: Read complete instructions prior to
installation and operation of the unit.

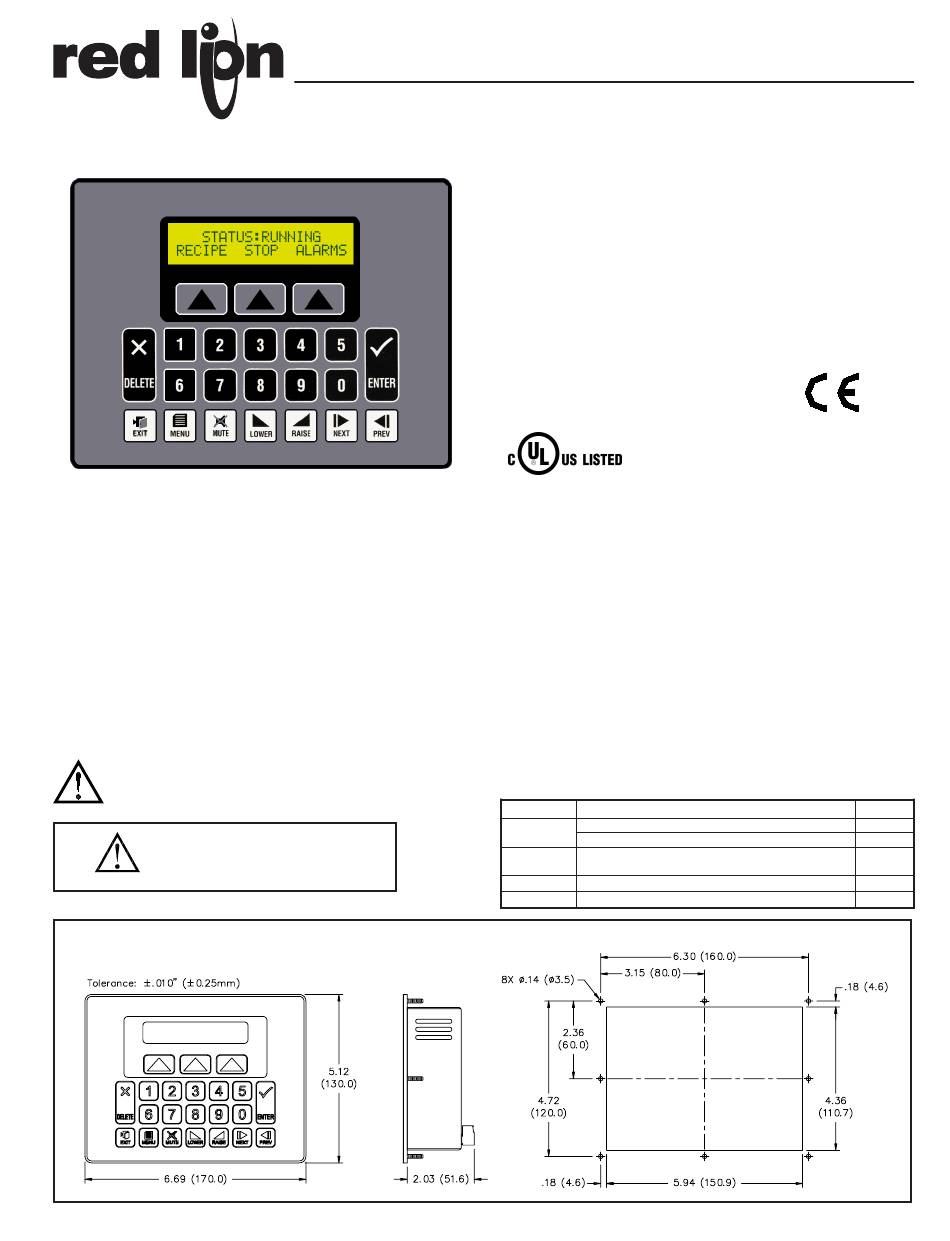

DIMENSIONS In inches (mm)
2 LINE X 20 CHARACTER LIQUID
O
CRYSTAL DISPLAY WITH LED
BACKLIGHT
100 ALARM POINT LOGGER
O
RECIPE HANDLING
O
UNLIMITED PASSWORD PROTECTION
O
REAL TIME CLOCK, BATTERY BACKED
O
EXPRESSION EVALUATION
O
32-BIT MATH
O
DIRECT PLC COMMUNICATION
O
NEMA 4/IP65
O
FOR USE IN HAZARDOUS LOCATIONS:
Class I, Division 2, Groups A, B, C, and D
Class II, Division 2, Groups F and G
63YN
Class III, Division 2
LABORATORY EQUIPMENT
SPECIFICATIONS
1. POWER REQUIREMENTS: 11 to 30 VDC @ 2.5 W
Power Up Current: 2.5 A for 1 msec max.
Must use a Class 2 or SELV rated power supply.
2. DISPLAY: 2 lines of 20 characters, 0.197" (5 mm) high liquid crystal display
with bright LED backlight.
3. KEYPAD: 3 screen legendable soft keys, numeric pad with raise, lower,
next, previous, enter, delete, exit, alarms and mute keys.
4. MEMORY: 128 K (64 K user) battery backed RAM (Battery life expectancy
7 years 50/50 on/off cycle) Optional factory fit expansion to 512 K (448 K
user).
5. PHYSICAL DIMENSIONS: L = 6.69" (170 mm), H = 5.12" (130 mm),
D = 2.2" (56 mm.)
6. CONSTRUCTION: Steel rear metal enclosure with NEMA 4/IP65
aluminum front plate when correctly fitted with the gasket provided. This
unit is rated for NEMA 4/IP65 indoor use. Installation Category I, Pollution
Degree 2.
ORDERING INFORMATION
MODEL NO. DESCRIPTION
LCD, 2 X 20, 3 Soft keys, 128 K memory
CL01
LCD, 2 X 20, 3 Soft keys, 512 K memory
EDICT-97 Development Kit. Includes Software, Manual and
9-pin RS232 Programming cables
Communication Cables
Battery Replacement
1
Bulletin No. CL01-B
Drawing No. LP0526
Released 7/01
PANEL CUT-OUT
PART NO.
CL010000
CL010010
SFEDT
P895xxxZ
BAL3R004
