Summary of Contents for Vitek VT-DVR04Q

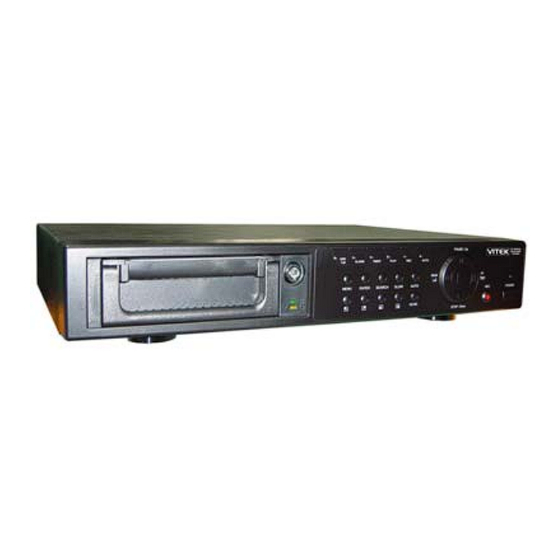

- Page 1 4 CH Digital Quad Recorder VT-DVR04Q Please read this instructions thoroughly before operation and retain it for future reference. User Manual V 1.0...
- Page 2 The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance-(servicing) instructions in the literature accompanying the appliance. VITEK (Other adaptor is not suitable for this machine).
-
Page 3: Table Of Contents
TABLE OF CONTENTS What do you get What do you get ‧ FEATURES ---------------------------------------------------------------------------------------- ‧ PACKAGE INCLUDING ------------------------------------------------------------------------ Before Operation Before Operation ‧ INSTALLATION GUIDE ------------------------------------------------------------------------ ‧ FRONT PANEL ----------------------------------------------------------------------------------- ‧ BACK PANEL ------------------------------------------------------------------------------------- Basic Operation Basic Operation ‧ START THIS UNIT -------------------------------------------------------------------------------- ‧... -
Page 4: What Do You Get
FEATURES DQR Features • Wavelet Compression Format replaces Time-Lapse VCR + Quad • 4 Audio inputs / 2 Audio outputs • On Screen Display and RTC (Real time clock) Function • Support from 1 channel to 4 channels video inputs •... -
Page 5: Before Operation
INSTALLATION GUIDE 1. Connect cameras and monitor with the DQR. 2. Shown below is one example for connecting the DQR to your existing Observation System. 3. Install HDD (The compatible HDD Brands are listed in the following table.) Please refer to page.18 Appendix #1 for installation instructions. The HDD must be installed before turning on the DQR. -
Page 6: Front Panel
FRONT PANEL 1. REMOVABLE HDD CARTRIDGE Please refer to page.18 Appendix #1. 2. MENU Press MENU to enter main menu. 3. ENTER Press ENTER for confirmation. 4. SEARCH Press SEARCH for searching recording video. 5. SLOW To slow down speed of play mode. 6. - Page 7 11. PAUSE / Up ‧Pause : Under DQR play mode, it can pause the action. ‧UP : Under setup mode, it works as Up button. 12. PLAY Press PLAY to playback recorded video. 13. LED LIGHT The LED Light is ON under following condition. ‧HDD Full : HDD is full ‧ALARM : If Alarm Enable sets as “YES”, while the alarm is triggered , the led will be flashing ‧TIMER : When Timer is set as Enabled...
-
Page 8: Back Panel
BACK PANEL MONITOR PO W E R V IDEO 1. POWER Please use the provided adaptor to connect power cord (Other adaptor is not suitable for this machine). 2. VIDEO INPUT (1-4) Connect to video source, such as camera 3. MONITOR Connect to Main monitor 4. -
Page 9: Basic Operation
START THIS UNIT Before using the DQR, please have a HDD installed ready. (refer to Appendix #1 for installation or removal of a HDD). Connect the AC Power Cord with Power Adapter and plug into an electrical outlet. The Red LED indicator light will be ON and the DQR is in Standby mode. - Page 10 PLAY Press “ PLAY ” button, the DQR will show the last recording. 1. FAST FORWARD (F.F. ) & FAST REWIND (F.R.) You can increase the speed of Fast Forward and Rewind on the DQR. In the Play mode, press ” ►► ” once to get 2X speed forward and press twice to get 4X speed,… and the maximum speed can reach 32X.
-
Page 11: Detailed Menu Setup
ACCESS MENU The Menu allows you to configure your DQR settings. Please follow below steps to access the Menu : Press the Menu button. The password screen will appear: The default Password is 0000. Simply press the Enter button to access the Menu. NOTE : To key-in the Password, press the “Right”... -
Page 12: Menu Options
MENU OPTIONS SYSTEM 1. AUDIO INPUT To choose one of 4 channels to record. ( 2. BUZZER While you set the BUZZER as “ON”, it will be triggered by event occurrence. 3. HDD OVERWRITE Select “YES” to overwrite previous recording video in HDD. NOTE : When the HDD is full under O/W Recording mode, previous recorded files may be overwritten without further warning notices. - Page 13 TIMER 1. DAY Select the day, or days of the week (Mon–Fri / Sat-Sun / Daily) that you wish to schedule the DQR to automatically record. NOTE : 1.Special Date could be changed by “Enter”, “Up” and “Down” buttons. 2. If you have selected the specific date and recording timer set from that specific day to a new day, then the Recording Timer Schedule will be set as whole week.
- Page 14 RECORD 1. RECORD IPS Select the images per second of recording. The options are as following : NTSC－60、30、15、8、4、2、 1 PAL－50、25、12、6、3、2、 1 2. RECORD QUALITY There are four quality settings : BEST, HIGH, NORMAL and BASIC. NOTE : The relationship of Record time, IPS and record quality, please refer to page.23 Recording Speed.
- Page 15 REMOTE 1. REMOTE MODE Select RS-232 or RS-485 interface for the remote computer connection Protocol. (Please refer to page.16 for RS-232 Remote Protocol) 2. BAUD RATE Set the speed of the remote computer’s Baud Rate – which is the rate of Data transmission.
-
Page 16: Advanced Operation
OPERATION OPTIONS VIDEO LOSS Screen will display if the video input is not connected properly. SEARCH 1. LAST RECORD Play the last recorded video. 2. FULL LIST Show a listing of all recorded video on the HDD which sorted by time. M : Manual Record time A : Alarm Record time T : Timer Record time... -
Page 17: Key Lock
KEY LOCK For added security, you can “Lock” all buttons on your DQR. Locking disables the buttons and prevents other people from using the system. Press ENTER and MENU at the same time to enable Key Lock. Press ENTER and MENU at the same time to disable Key Lock. RS-232 REMOTE PROTOCOL You can use the PC keyboard to simulate DQR keypad. -
Page 18: Specifications
SPECIFICATIONS Video format Hard disk storage Record mode Camera Input Signal Main Monitor Output Audio input Audio output Video Loss Detection Refresh Rate Recording Rate Dwell Time Key Lock Picture Zoom Camera Title Video Adjustable Alarm Input Alarm Output Remote Control Time Display Format Power Source Power Consumption... -
Page 19: Appendix #1 - Installing The Hdd
APPENDIX #1 – INSTALLING the HDD Please follow the steps carefully in order to ensure correct installation. The compartment located on the front panel of the DQR is the removable Cartridge Casing, in which you insert the HDD. The various parts of the Cartridge Casing are labeled for your reference. Remove the Cartridge Casing from the DQR Cartridge Casing 2. - Page 20 4. Secu re the HDD in the Casing (optional) Use the screws supplied to tighten them, place the HDD into correct position. 5.Slide the top Cover over the Cartridge Casing Slide the Cover forward over the Cartridge Case. Ensure it is secured in place over the release latch. 6.Reinsert the Cartridge Casing into the DQR Fully insert the Cartridge Case into the DQR.
-
Page 21: Appendix #2 - Pin Configurations
APPENDIX #2 – PIN CONFIGURATIONS 25 pin com port ‧ ‧ ‧ ‧ 9 pin com port ‧ ‧ ‧ ‧... - Page 22 PIN 1. RS232-TX : RS-232 DQR can be controlled remotely by an external device or control system, such as a control keyboard, using RS- 232 serial communications signals. PIN 2. RS232-RX : RS232 DQR can be controlled remotely by an external device or control system, such as a control keyboard, using RS- 232 serial communications signals.
-
Page 23: Appendix #3 - Rack Mount
APPENDIX #3 – RACK MOUNT Screws and brackets for rack mounting applications can be purchased as an optional accessory. Front Angle with Rock Mount Side View with Rack Mount... -
Page 24: Appendix #4 - Recording Speed
APPENDIX #4 – RECORDING SPEED The Record Time is different based on Record Speed and Record Quality. Please refer to following table. NTSC SYSTEM Best 12hr 24hr High Record 15hr 30hr Quality Normal 24hr 48hr Basic 40hr 80hr HDD Type PAL SYSTEM Best 12hr... - Page 25 Industrial Video Products, Inc. 9970 Glenoaks Blvd. Unit B Sun Valley, CA 91352 Phone: 888-VITEK-70 / 818-771-0300 Fax: 818-771-0400 WWW.VITEKCCTV.COM...
