LCD Specifications
Model
VTM-LCD561
Display Type
5.6" TFT LCD Panel
Input Signal
NTSC or PAL
Video: 1Vp-p/75 ohm
Audio: 1Vp-p/100k ohm
Display Frequency
NTSC: Fh=15.73KHz, fv=60HZ
PAL: Fh=15.63KHz, fv=50HZ
Display Resolution
960 x 234 dpi
Display Color
Full color
Input
Video Input x2
Audio input x2
Functions
Functions controlled by OSD (On screen display)
Audio Volume: Audio output power: 0.5 Watts
Video Control: Video 1 / Video 2 / Reverse Picture,
Contrast, Bright color, Up / Down (picture), Reset
Power Input
DC 12V+/- 15%
Operation Temp
-20 C ~ +70 C
Storage Temp
-30 C ~ +80 C
Humidity
10-90% RH
Dimensions
153 (H) x 134 (V) x 29.5 (D) mm
Viewing Angle
40 Degrees Horizontal / 90 Degrees Vertical

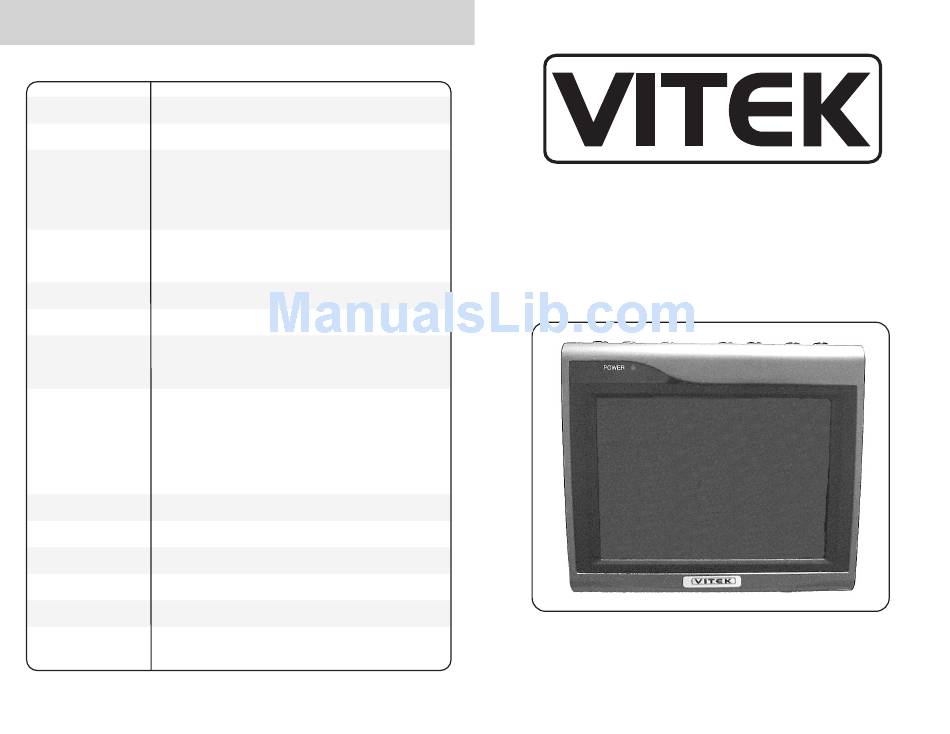

VTM-LCD561
5.6" TFT Color LCD Display Monitor
Product Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTM-LCD561
Summary of Contents for Vitek VTM-LCD561
-
Page 1: Lcd Specifications
LCD Specifications Model VTM-LCD561 Display Type 5.6" TFT LCD Panel Input Signal NTSC or PAL Video: 1Vp-p/75 ohm Audio: 1Vp-p/100k ohm Display Frequency NTSC: Fh=15.73KHz, fv=60HZ PAL: Fh=15.63KHz, fv=50HZ Display Resolution 960 x 234 dpi Display Color Full color Input... -
Page 2: Bracket Installation
Installation Bracket Installation Insert metal plate into Slot on back of unit. Adjust to comfortable viewing angle to complete. Wiring Diagram LCD Buttons Attach bracket to metal plate. Output device: (Recorder, Camera, Etc.) Top of LCD Unit Power Function Video In Volume SW1 : Power On / Off Powers the unit On or Off.
