Barometer (U4); Magnetometer (U7); Figure 28. 3D Accelerometer And 3D Gyroscope (U2) Pin 1 Location; Figure 29. Direction Of Detectable Magnetic Fields - ST STM32WL Series User Manual

6.7.3

Barometer (U4)

U4 is connected to the STM32WL5MOC module through the I
U4 is an ultracompact piezoresistive absolute pressure sensor that functions as a digital output barometer.
6.7.4

Magnetometer (U7)

U7 is connected to the STM32WL5MOC module through the I
U7 is a high‑accuracy, ultra‑low‑power 3‑axis digital magnetic sensor.
UM3127 - Rev 1

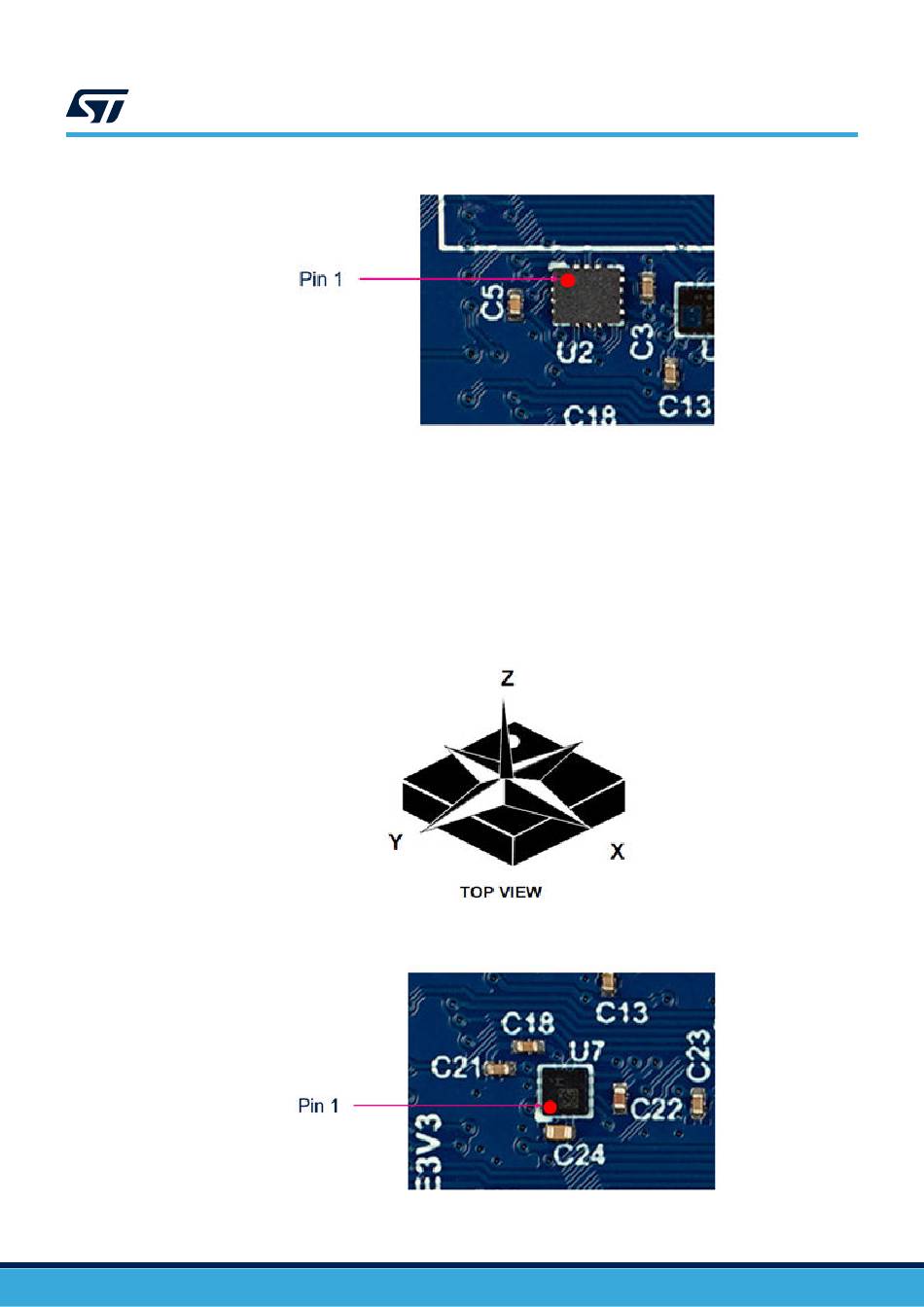

Figure 28. 3D accelerometer and 3D gyroscope (U2) pin 1 location
Figure 29. Direction of detectable magnetic fields
Figure 30. Magnetometer (U7) pin 1 location
