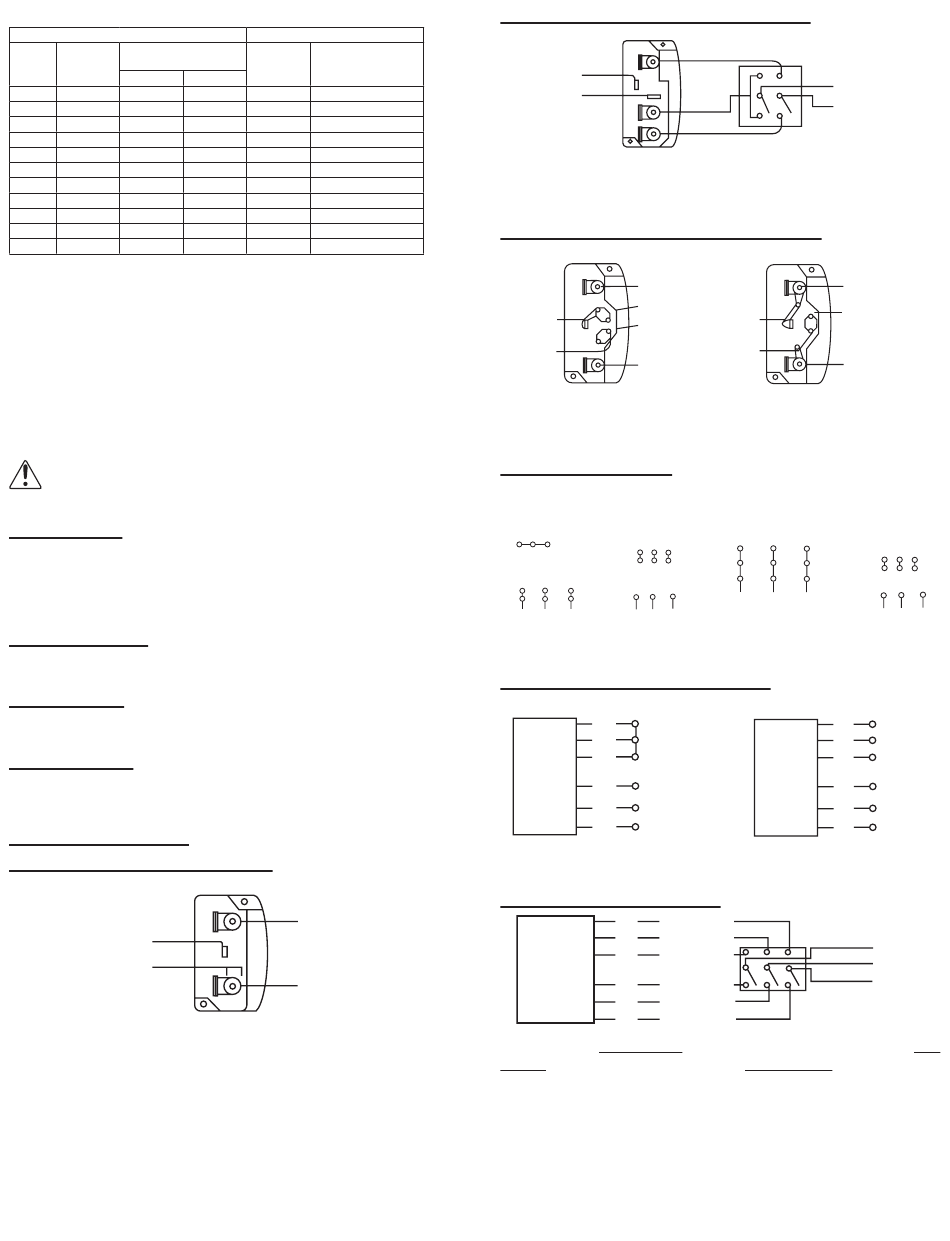

Wiring Diagrams - COOK JetStream Installation, Operation And Maintenance Manual

Recommended Torque for Setscrews/Bolts (IN-LB)
Setscrews
Recommended
Key Hex
Torque
Size Across
Flats
Min.
#8 5/64" 15
#10 3/32" 27
1/4 1/8" 70
5/16 5/32" 140
3/8 3/16" 250
7/16 7/32" 355
1/2 1/4" 560
5/8 5/16" 1120
3/4 3/8" 1680
7/8 1/2" 4200
1 9/16" 5600
Start-Up
Ensure free rotation of the prop. Turn on the fan. In variable
speed units, set fan to its lowest speed and inspect for the fol-
lowing:
• Direction of rotation
• Excessive vibration
• Unusual noise
• Bearing noise
• Improper motor amperage or voltage
NOTICE! If a problem is discovered, immediately shut
off the fan. Lock out all electrical power and check for
the cause of the trouble. Refer to Troubleshooting.
Inspection
Inspection of the fan should be conducted at the first 30
minute, 8 hour and 24 hour intervals of satisfactory opera-
tion. During the inspections, stop the fan and inspect as per
the following:
30 Minute Interval
Inspect bolts, setscrews and motor mounting bolts. Adjust
and tighten as necessary.
8 Hour Interval
Inspect bolts, setscrews and motor mounting bolts. Adjust
and tighten as necessary.
24 Hour Interval
Inspect bolts, setscrews and motor mounting bolts. Adjust
and tighten as necessary.

Wiring Diagrams

Single Speed, Single Phase Motor
T-1
T-4
Ground B
When ground is required, attach to ground A or B with No. 6 thread
forming screw. To reverse, interchange T-1 and T-4.
JET STREAM IO&M
Hold Down Bolts
Recommended
Size
Torque
Max.
21 3/8"-16 324
33 1/2"-13 780
80 5/8"-11 1440
160 3/4"-10 2400
290 7/8"-9 1920
405 1"-8 2700
640 1-1/8"-7 4200
1280 1-1/4"-7 6000
1920 - -
4800 - -
6400 - -
Ground A
L 1
Line
L 2
2 Speed, 2 Winding, Single Phase Motor
T-1
T-4
Ground B
When ground is required, attach to ground A or B with No. 6 thread
forming screw. To reverse, interchange T-1 and T-4 leads.
Single Speed, Single Phase, Dual Voltage
Ground A
L 1
Link A
T-5
Link B
J-10 Low Voltage
L 2
Ground B
When ground is required, attach to ground A or B with No. 6 thread
forming screw. To reverse, interchange T-5 and J-10 leads.
3 Phase, 9 Lead Motor
3 Phase, 9 Lead Motor
Y-Connection
Low Voltage High Voltage
208/230 Volts 460 Volts
4 5 6
4 5 6
7 8 9
1 2 3
1 2
7 8 9
L 1 L 2 L 3 L 1 L 2 L 3
To reverse, interchange any two line leads.
2 Speed, 1 Winding, 3 Phase Motor
High Speed
1
Together
2
3
Motor
L 1
4
L 2
5
6
L 3
To reverse, interchange any two line leads. Motors require magnetic
control.
2 Speed, 2 Winding, 3 Phase
T
3
T
2
T
1
Motor
T
11
T
12
T
13
To reverse,
High Speed: interchange leads T11 and T12; Low
Speed: interchange leads T1 and T2; Both Speeds: interchange any
two line leads.
3
Ground A
High Speed
L 1
L 2
Low Speed
Ground A
T-5
Line
J-10
Ground B
3 Phase, 9 Lead Motor
Delta-Connection
Low Voltage
208/230 Volts
8 9
7
6 4 5
2 3
1
3
L 1 L 2 L 3
Low Speed
1
2
3
Motor
4
Line 5
6
Low Speed
Low Speed
Low Speed
High Speed
High Speed
High Speed
Line
L 1
Link A
and B
Line
L 2
High Voltage
460 Volts
7 8 9
4 5 6
3
1 2
L 1 L 2 L 3
L 1
L 2
Line
L 3
Open
L
1
L
Line
2
L
3
P0000313-000
