COOK TCN Series Installation, Operation And Maintenance Manual

COOK TCN Series Installation, Operation And Maintenance Manual

Tubular centrifugal inline fans

Advertisement

®
This publication contains the installation, operation and
maintenance instructions for standard units of the TCN:
Inline Blowers.
• TCN-B
• TCNHS-B
• TCNHE-B
• TCNU-B
• TCNH-D
• TCNE-B
• TCNH-B
• TCNHU-B
Carefully read this publication and any
supplemental documents prior to any
installation or maintenance procedure.
Loren Cook catalog, TCN, provides additional informa-
tion describing the equipment, fan performance, available
accessories and specification data.
For additional safety information, refer to AMCA Publi-
cation 410-96, Safety Practices for Users and Installers of
Industrial and Commercial Fans.
All of the publications listed above can be obtained from:
• lorencook.com
• info@lorencook.com
• 417-869-6474 ext. 166
For information and instructions on special equipment,
contact Loren Cook Company at 417-869-6474.
Receiving and Inspection
Carefully inspect the fan and accessories for any dam-
age and shortage immediately upon receipt of the fan.
• Turn the wheel by hand to ensure it turns freely and does
not bind.
• Inspect dampers for free operation of all moving parts.
• Record on the Delivery Receipt any visible sign of damage.
Handling
Lift the fan by foot brackets.
NOTICE! Never lift by the shaft, motor or housing.

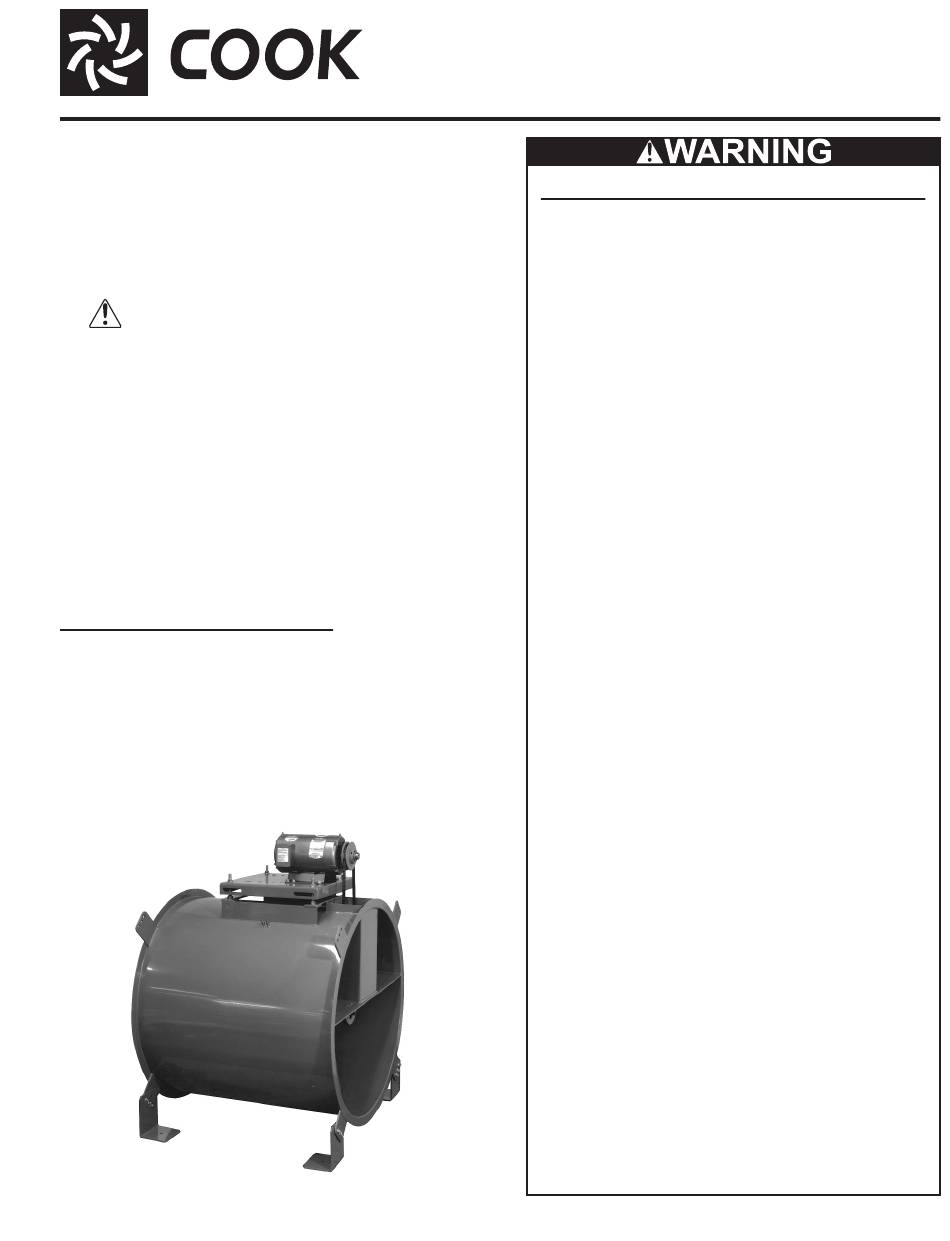

TCN-B
TCN IO&M
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
• TCNS-B
• TCN-D
1
Tubular Centrifugal Inline Fans
Rotating Parts & Electrical Shock Hazard:
Fans should be installed and serviced by qualified person-
nel only.
Disconnect electric power before working on unit (prior to
removal of guards or entry into access doors).
Follow proper lockout/tagout procedures to ensure the unit
cannot be energized while being installed or serviced.
A disconnect switch should be placed near the fan in order
that the power can be swiftly cut off, in case of an emer-
gency and in order that maintenance personnel are pro-
vided complete control of the power source.
Grounding is required. All field-installed wiring must be
completed by qualified personnel. All field installed wiring
must comply with National Electric Code (NFPA 70) and all
applicable local codes. Ensure the power supply (voltage,
frequency and current carrying capacity of wires) is in ac-
cordance with the motor nameplate.
Fans and blowers create pressure at the discharge and
vacuum at the inlet. This may cause objects to get pulled
into the unit and objects to be propelled rapidly from the
discharge. The discharge should always be directed in a
safe direction and inlets should not be left unguarded. Any
object pulled into the inlet will become a projectile capable
of causing serious injury or death.
When air is allowed to move through a non-powered fan,
the impeller can rotate, which is referred to as windmill-
ing. Windmilling will cause hazardous conditions due to
unexpected rotation of components. Impellers should be
blocked in position or air passages blocked to prevent draft
when working on fans.
Friction and power loss inside rotating components will
cause them to be a potential burn hazard. All components
should be approached with caution and/or allowed to cool
before contacting them for maintenance.
Under certain lighting conditions, rotating components
may appear stationary. Components should be verified to
be stationary in a safe manner, before they come into con-
tact with personnel, tools or clothing.
Failure to follow these instructions could result in death or
serious injury.
The attachment of roof mounted fans to the roof curb as
well as the attachment of roof curbs to the building struc-
ture must exceed the structural requirements based on the
environmental loading derived from the applicable build-
ing code for the site. The local code official may require
variations from the recognized code based on local data.
The licensed engineer of record will be responsible for pre-
scribing the correct attachment based on construction ma-
terials, code requirements and environmental effects spe-
cific to the installation.
TCN
B51143-003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCN Series and is the answer not in the manual?

Questions and answers

Summary of Contents for COOK TCN Series

  • Page 1 A disconnect switch should be placed near the fan in order Loren Cook catalog, TCN, provides additional informa- that the power can be swiftly cut off, in case of an emer- tion describing the equipment, fan performance, available gency and in order that maintenance personnel are pro- accessories and specification data.
  • Page 2: Duct Installation

    Storage 4. Remove blocks and allow fan to rest on floor. Isolators must be installed on a level surface (leveling should If the fan is stored for any length of time prior to installa- not be required). tion, completely fill the bearings with grease or moisture- 5.
  • Page 3: Pulley Alignment

    Belt and Pulley Installation Inlet Duct Turns For ducted inlets, allow at least three fan wheel diam- Belt tension is determined by the sound the belts make eters between duct turns or elbows and the fan inlet. when the fan is first started. The belts will produce a loud squeal, which dissipates after the fan is operating at full Correct capacity.
  • Page 4: Wiring Installation

    Drive (VFD) must be VFD compatible. Motors that 3 Phase, 9 Lead Motor 3 Phase, 9 Lead Motor are not supplied by Loren Cook Company should have the Y-Connection Delta-Connection recommendation of the motor manufacturer for use with a...
  • Page 5: Operation

    Inspection NOTICE! Follow the wiring diagram in the discon- nect switch and the wiring diagram provided with Inspection of the fan should be conducted at the first 30 the motor. Correctly label the circuit on the main minute, 8 hour and 24 hour intervals of satisfactory op- power box and always identify a closed switch to eration.
  • Page 6 Excessive pressure should be avoided to prevent Should the motor prove defective within a one-year pe- seal damage. riod, contact your local Loren Cook representative or your Exceptions to the greasing interval chart: nearest authorized electric motor service representative.
  • Page 7: Bearing Replacement

    Wheel Replacement for TCN & TCNH Maximum RPM Size Non-Reinforced Reinforced TCNH-B 3899 4231 1. Remove inlet cone by removing bolts around perim- 3942 4231 eter of the inlet plate. 3600 4231 3382 4231 2. Remove wheel by loosening setscrews and sliding off 2894 3404 shaft if wheel will slide easily;...
  • Page 8: Troubleshooting

    Troubleshooting Recommended Puller Lisle No. 45000 Steering Wheel Puller. This puller is Problem and Potential Cause available at most automotive parts retail outlets. Low Capacity or Pressure: • Incorrect direction of rotation. Make sure the fan rotates in same direction as the arrows on the motor or belt drive assembly •...
  • Page 9: Parts List

    Parts List TCN-B/TCNH-B Part No. Description Part No. Description Foot Outer Housing Wheel Motor Plate Foot Bracket Belt Tunnel Motor Bearing Plate Inlet Cone Bearing Cover Inspection Door Not Shown Rub Ring TCN-D/TCNH-D Part No. Description Part No. Description Foot Bracket TEFC Motor Inlet Cone Field Wiring Compartment...
  • Page 10 TCNE-B/TCNHE-B TCNS-B/TCNHS-B Part No. Description Part No. Description TCNE/S Curb Cap TCNE/S Top Cap Closed TCNE/S Top Cap Open TCNE/S Lifting Lug TCNE/S Top Cap Post (Bottom) Not Shown Birdscreen TCNE/S Top Cap Post (Top) See common parts listed on page 9. TCN IO&M B51143-003...
  • Page 11 TCNU-B/TCNHU-B Part No. Description Part No. Description TCNU Curb Cap TCNU Damper Stop TCNU Windband TCNU Lifting Lug TCNU Damper Assembly TCNU Nozzel See common parts listed on page 9. TCN IO&M B51143-003...
  • Page 12: Limited Warranty

    Cook Company, General Offices, 2015 East Dale Street, Springfield, Missouri 65803-4637, explaining in writing, in detail, your complaint and referring to the specific model and serial numbers of your fan. Upon receipt by Loren Cook Company of your written complaint, you will be notified, within thirty (30) days of our receipt of your complaint, in writing, as to the manner in which your claim will be handled.
