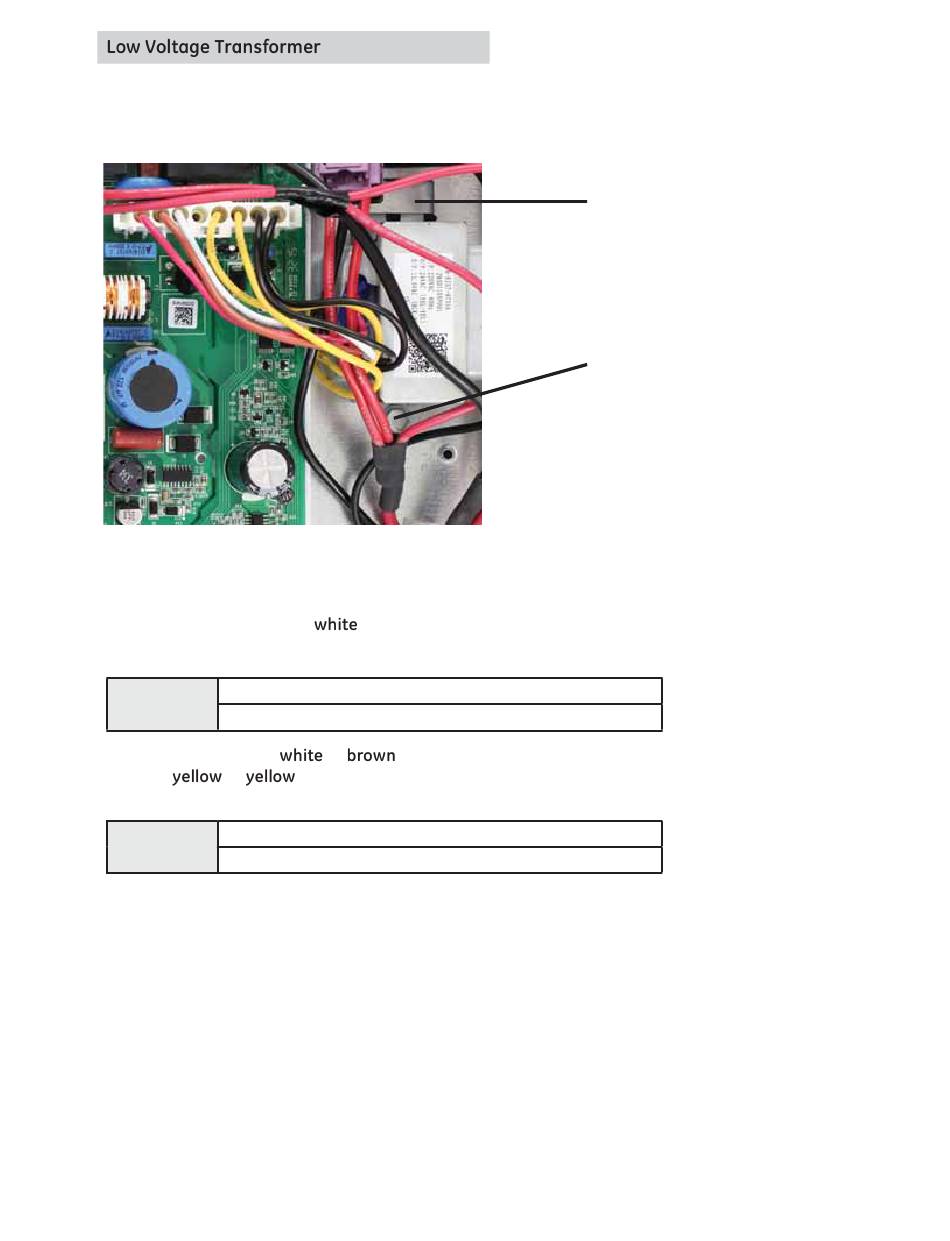

Low Voltage Transformer - GE AZ45E07EA Series Technical Service Manual

The low voltage transformer mounts to the control
console with one screw and tab. One harness
connector plugs into the main board.
The same transformer is used in all Zoneline models:
208/230 and 265 volt models.
The 208/230 volt models use
input and black to black for 24 VAC output.
WHITE to RED 125 ohms ± 15%
Resistance
BLACK to BLACK .71 ohms - .85 ohms MAX
The 265 volt models use
input and to
WHITE to BROWN 154 ohms ± 15%
Resistance
YELLOW to YELLOW 3.2 ohms - 3.85 ohms MAX
to red for line
to for line
for 24 VAC output.
– 47 –
Tab
Screw
