The USER interface is just a display board with tactile push button switches. There aren't any processors
contained on this board.
There is a ferrite bead that the harness connecting the boards wraps around to minimize Electro-Magnetic
Interference (EMI).

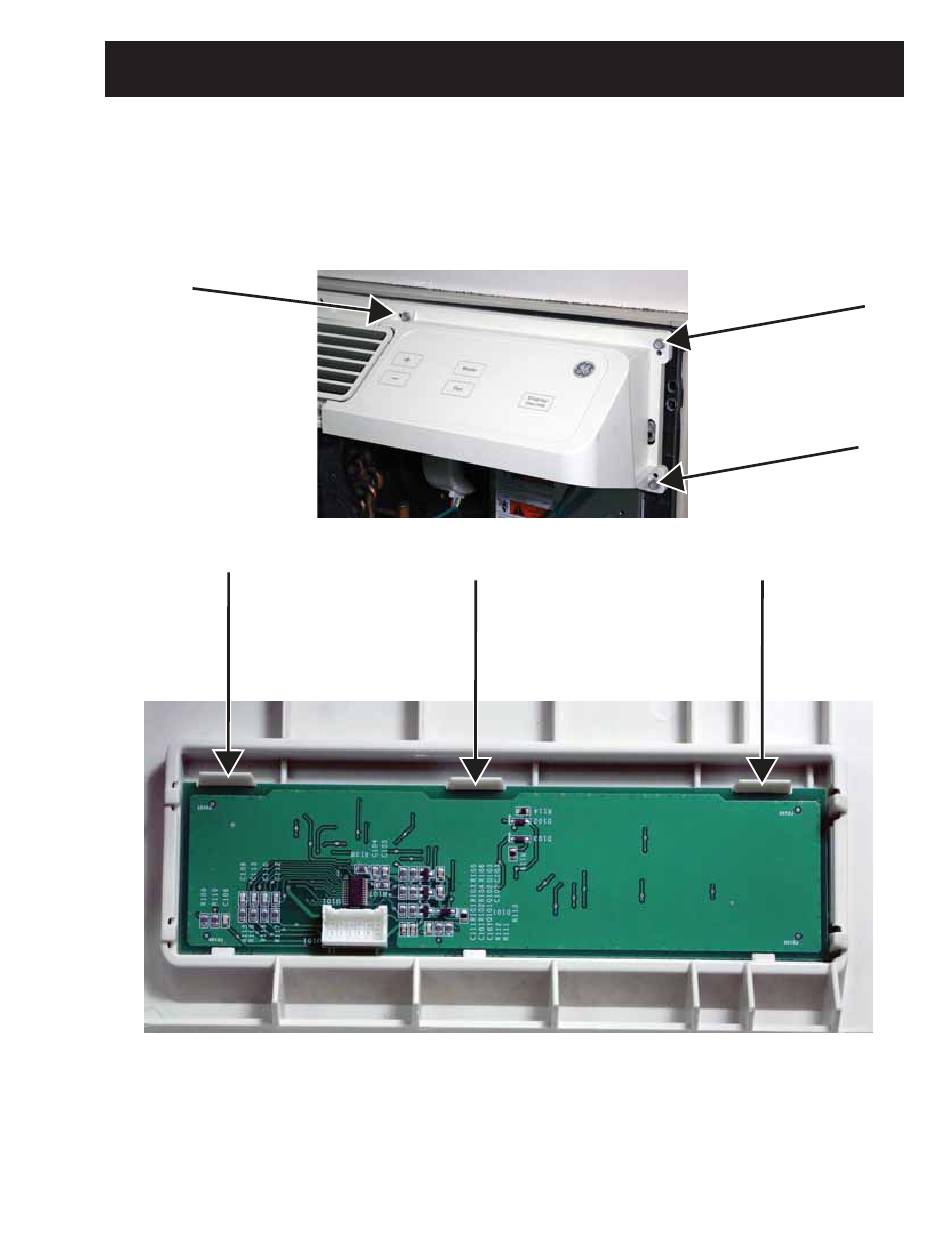

Three screws secure the User Interface/Control assembly to the chassis. Once removed, the control slides to
the right.
Three tabs secure the User Interface board to the control assembly.
User Interface
– 31 –
