Fan Cycle - Resistance Heating Mode
The indoor fan and heaters are turned ON at the same time. The indoor fan is turned OFF a short period of
time later, approximately 20 seconds, after the heaters are de-energized as shown in the graph below. In the
OFF mode, the indoor fan shall continue to operate for 6 seconds after the user has stopped the Zoneline, in
order to dissipate the heat inside the Zoneline.

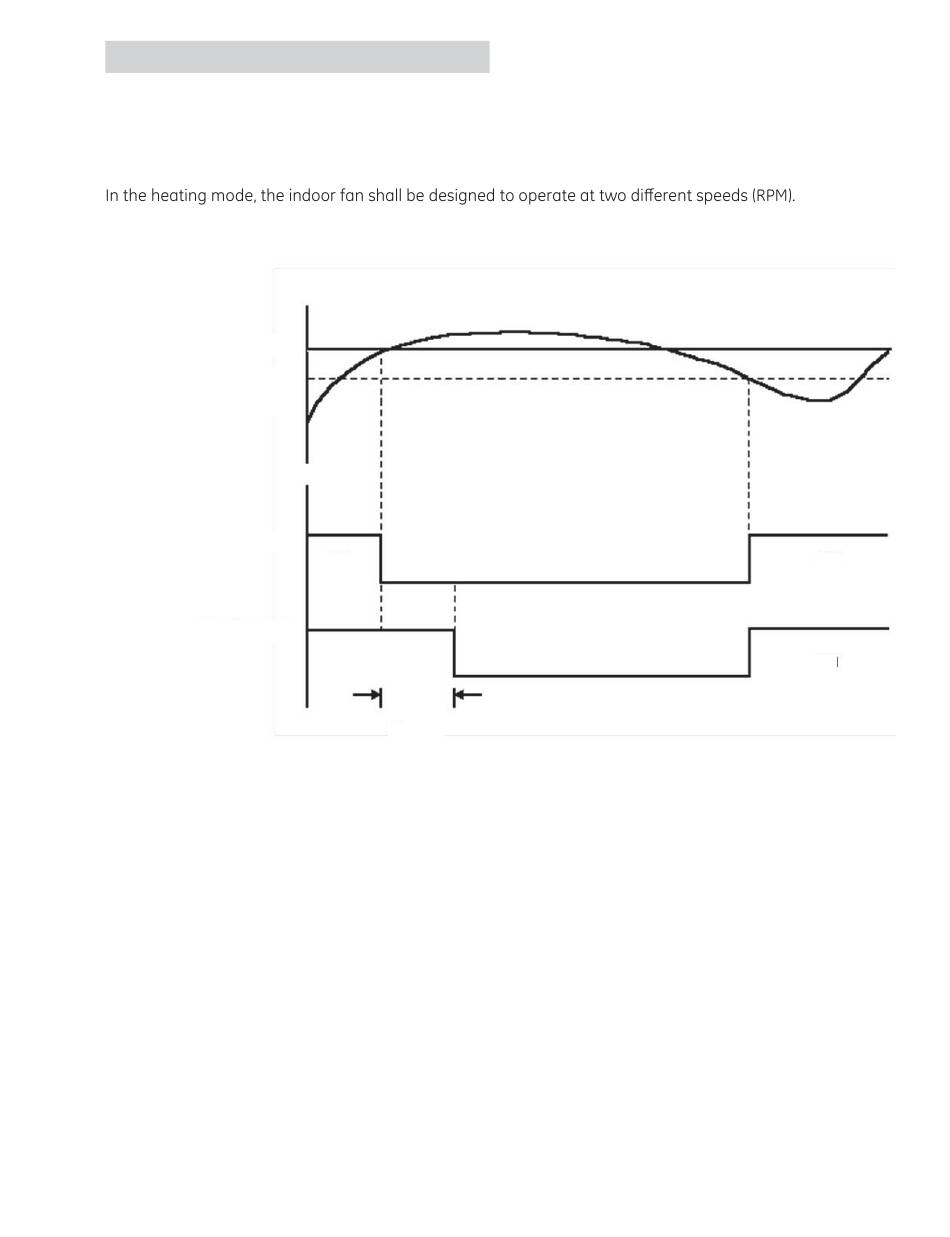

Fan Cycle - Resistance Heating Mode
Temperature
Temperature Setting
-1.8°F
Heater
ON
ON
INDOOR FAN
ON
20 sec
– 15 –
