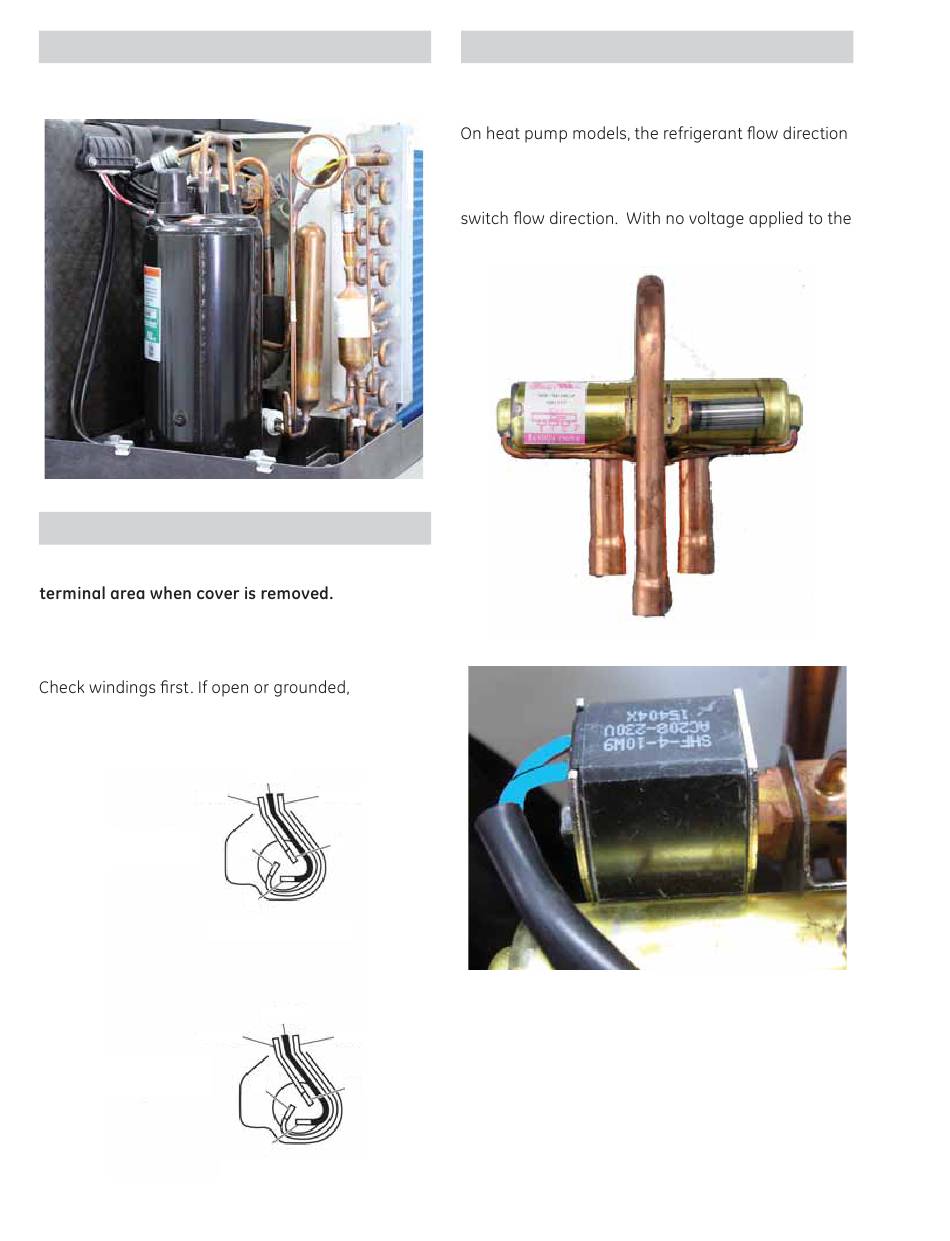

Sealed System Heat Pump

9,000 BTU heat pump model shown.

Compressor Check - Wiring

CAUTION: Risk of injury. Keep head clear of
Keep head clear of terminal area when cover is
removed.
apply power to the compressor terminals.
Red
Panasonic
Compressor
Compressor Wiring
White
RECHI
Compressor
DO NOT
Black
White
S R
C
Black
Red
R
S
C
Compressor Wiring

Sealed System Heat Pump Components

Reversing Valve
is controlled by the reversing valve assembly. In the
cooling mode, the main board supplies line voltage
to the solenoid coil, which causes the valve to
solenoid coil, the valve will be in the heating mode.
*Shown with solenoid removed.
The solenoid coil attaches to the valve body with a
5/16 in. hex head bolt. The 265 volt coil has blue
wires and measures approximately ~ 3.23k ohms
ohms.
– 44 –
(Continued next page)
