Lamona LAM2580 User Instructions And Installation

Lamona LAM2580 User Instructions And Installation

60cm/90cm touch control curved glass cooker hood

Advertisement

Quick Links

60cm/90cm
Touch Control Curved Glass Cooker Hood
User Instructions and Installation
www.howdens.com/appliance-registration
LAM2580
LAM2581
ISSUE v2 070722

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAM2580 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lamona LAM2580

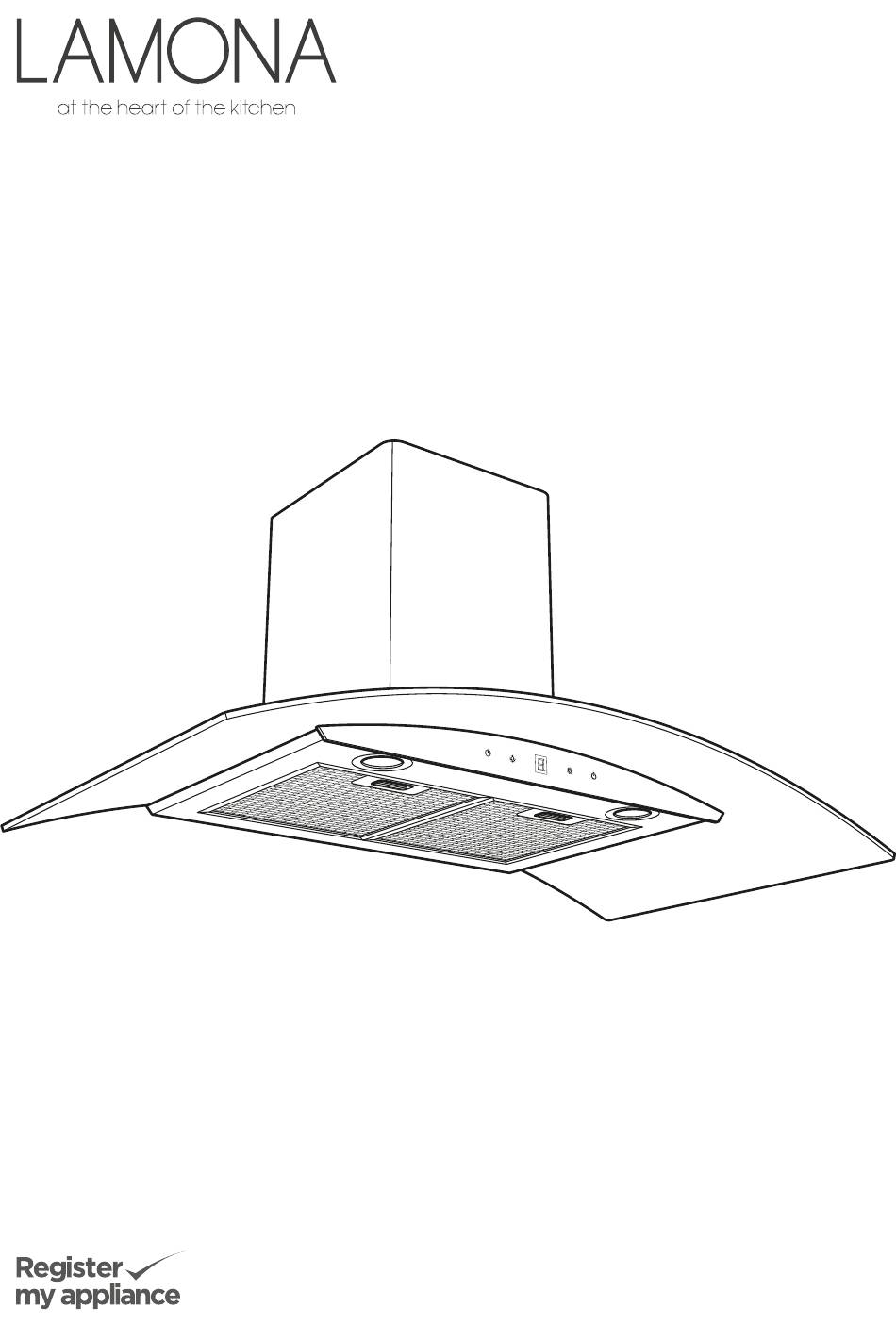

  • Page 1 60cm/90cm LAM2580 Touch Control Curved Glass Cooker Hood LAM2581 User Instructions and Installation ISSUE v2 070722 www.howdens.com/appliance-registration...
  • Page 2 www.howdens.com...
  • Page 3: Table Of Contents

    Welcome Dear Customer Congratulations on your choice of LAMONA Throughout this manual the domestic appliance. following symbols are used. • Please read these instructions before use to ensure safe and economical operation of Important the appliance. information or useful • Please keep these instructions in a safe hints and tips, place for your future reference.
  • Page 4: Warning And Safety Information

    Warning and Safety information Please read these instructions. The General safety manufacturer is not responsible if an incorrect installation and use causes injuries and/or This product is not intended to be used by damage. Always keep the instructions with the persons with physical, sensory or mental cooker hood for future reference.
  • Page 5: Children And General Safety

    Warning and Safety information Children and general safety Waste Electrical and Electronic Equipment (WEEE) Electrical products can be dangerous to children. Keep children away from the product This product bears classification when it is operating and do not allow them to symbol for waste electrical and play with or near the product.
  • Page 6: Cooker Hood Overview

    1. Cooker hood overview Recirculation vent Upper chimney section Lower chimney section Touch control panel Cooker hood glass Cooker hood body Grease filters Lights Touch control panel overview Timer Lamp Speed On/Off Display www.howdens.com...
  • Page 7: Installation

    2. Installation Methods of extraction The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. (Suitable ducting kits may be purchased from your local Howdens depot or online.) You do not need carbon filters when using the external ducting mode.
  • Page 8: Part Identification

    Part identification On opening the packaging, remove and identify each component part. Carefully place each part on a clean, scratch free surface. Do not scratch the finished surfaces of the component parts. Upper chimney Lower chimney Main hood body Hood glass Chimney brackets 4x Hood glass fixing Cable grid...
  • Page 9: Installing The Cooker Hood

    Installing the cooker hood This instruction must be strictly adhered to. Failure to comply could result in overheating and serious damage to your appliance. It is recommended that the installation is carried out by two people. Before drilling or chiselling the wall or For extraction via recirculation, fit the ceiling, check for pipes and power cables.
  • Page 10 Installing the cooker hood Position cooker hood centrally above the Minimum distance cooking area, mark and secure using the 4 above hob. holes for hanging the hood. 90 m m 90 m m 215mm Minimum distance 750mm - gas hobs 650mm - electric hobs 10 0m m 10 0m m 4x 30mm Round head screw...
  • Page 11 Installing the cooker hood Position chimney, mark the 4 holes for hanging the chimney. Position the top chimney bracket 10mm below ceiling height. Remove chimney - Secure lower chimney and drill and plug the wall. upper bracket to the wall. 10mm 4x Rawl plug 9 0 °...
  • Page 12: Electrical Connection

    Electrical connections IMPORTANT: Ensure that the electricity IMPORTANT: The wires in the mains lead are supply is switched off before connecting. coloured in accordance with the following code:- When fitting in recirculation mode (with Blue.....Neutral carbon filters) ensure the cable is shortened Brown....Live and securely held in place or a cable grid is Green/ Yellow..Earth...
  • Page 13: Operating The Cooker Hood

    3. Operating the cooker hood Touch control with LED display Timer Lamp Speed On/Off Display Timer; Touch the timer button and the hood will display 9 minutes. The display will count down 9, 8, 7, etc., the hood and lamp will automatically switch off.
  • Page 14: Care And Maintenance

    4. Care and Maintenance Before cleaning or attempting any type The manufacturer declines all liability in cases of maintenance, always make sure that the where the instructions for the appropriate electricity supply is disconnected. installation, maintenance and use of the cooker hood are not observed.
  • Page 15: Carbon Filters

    Carbon filter (supplied separately) Carbon filters are only required for recirculation mode. Before attempting to change or fit a carbon filter(s) ensure power to the cooker hood is switched off. Carbon filters have a limited life. We advise changing them when there is a noticeable drop in performance.
  • Page 16: Replacing Lamps

    Replacing lamps The lamps on this model are service fix only The lamp(s) on this appliance should only be and replacement should be carried out by an used during operation of the cooker hood. authorised service agent. They should not be left on permanently and used as a main lighting source.
  • Page 17: Technical Specification

    6 - Technical specifications TECHNICAL INFORMATION General Total power consumption 73 W Fuse 3 Amp Voltage / Frequency 220-240 V 50 Hz Cable type / section 3 core 0.75mm Cable length 1.5 Metres Lamps 2 x 1.5 W LED 6500 K Lighting efficiency class Carbon filter LAM2002...
  • Page 18: Guarantee

    Your full contact details. Call the Depot number on your Proof of Purchase Document supplied with the product/kitchen. Call the LAMONA Service Line on: Within UK 0344 460 0006 Within Republic of Ireland 01525 5703 • Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance.
  • Page 19 Exclusive to Howdens...
  • Page 20 Product serial number (Place sticker here) REPRISE À DÉPOSER À DÉPOSER À LA LIVRAISON EN MAGASIN EN DÉCHÈTERIE Cet appareil se recycle Points de collecte sur www.quefairedemesdechets.fr Privilégiez la répara�on ou le don de votre appareil! Howden Joinery Ltd. Thorpe Road, Howden, East Yorkshire. DN14 7PA Imported in EU by: Howdens Cuisines SAS.

This manual is also suitable for:

Lam2581
