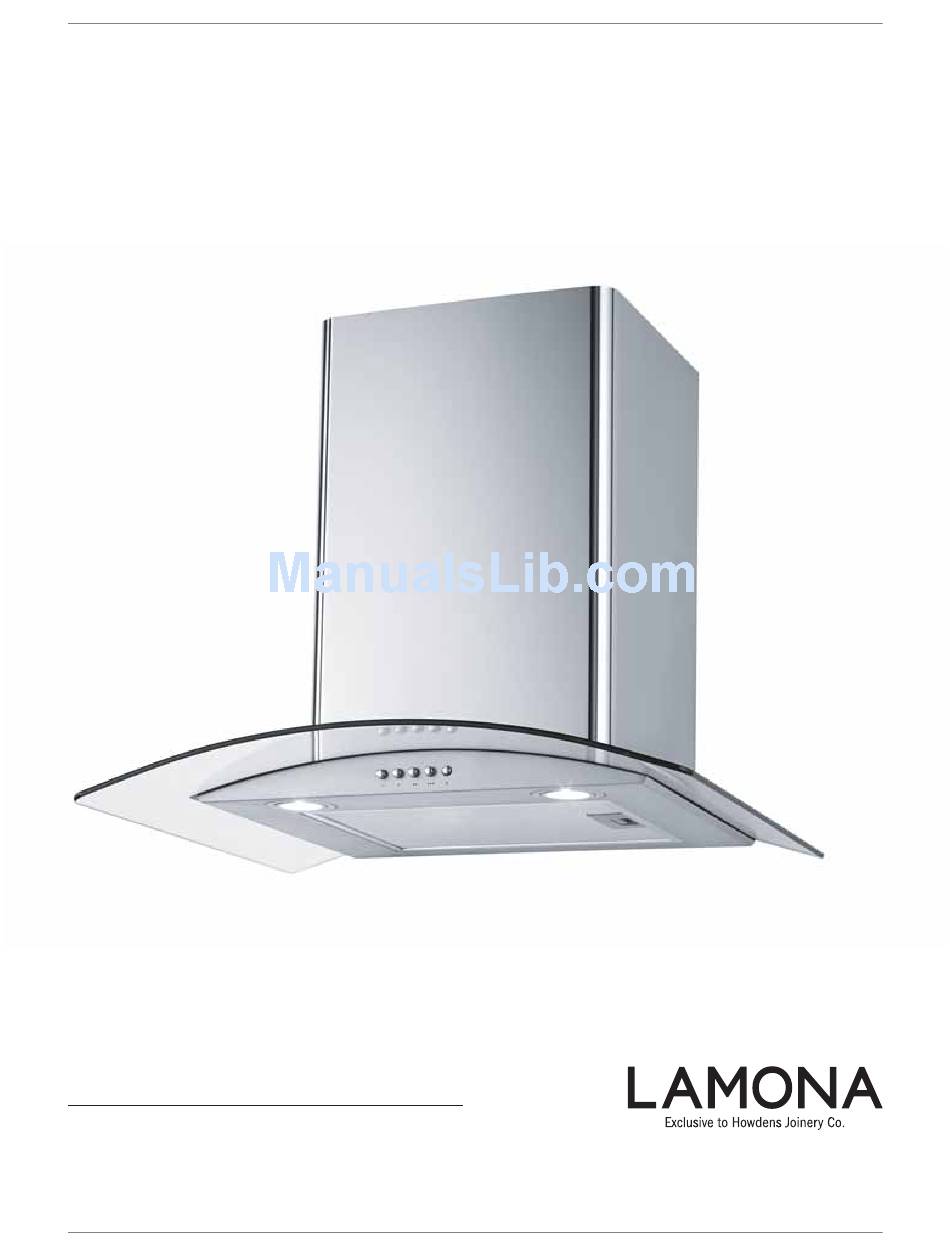

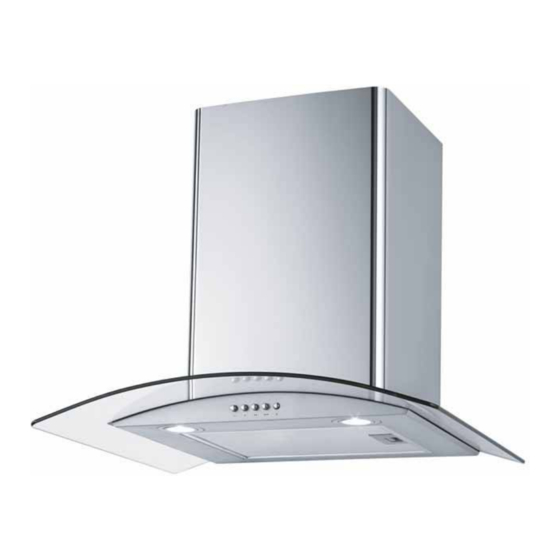

- Page 1 LAM2502 Curved Glass Stainless Steel LAM2503 Chimney Extractor User & Installation Guide...
- Page 2 LAMONA Appliances Dear Customer, Congratulations on your choice of a LAMONA domestic appliance which has been designed to give you excellent service. The user manual will help you use your product quickly and safely. Please read this user manual before installing and using the product.
-
Page 3: Table Of Contents
User manual LAM2502 LAM2503 Index Before Using The Extractor Safety General Safety for Children Safety When Working With Electricity General Information and Operation Extractor Layout Control Panel Layout Care and maintenance General Cleaning Grease Filters Carbon Filters Replacing the Lamps... -
Page 4: Before Using The Extractor
LAMONA Appliances Before Using the Extractor Make sure that you have removed all packaging, wrappings, stickers and from the Extractor It is recommended that you clean the extractor’s surface before using for the time. Safety Keep all ventilation slots clear of obstructions,... -
Page 5: General Information And Operation
User manual LAM2502 LAM2503 General Information & Operation Extractor layout Upper Chimney Section Recirculation Vent Lower Chimney Section Fan and Light Controls Extractor Body Grease Filters Light Glass Canopy Control Panel Layout Extractor Power Off Extractor Power Level 1 Extractor Power Level 2... -
Page 6: Care And Maintenance
LAMONA Appliances Care and Maintenance Before cleaning or attempting any type of maintenance, always make sure that the electricity supply is disconnected. The manufacturer declines all liability in cases where the instructions for the appropriate installation, maintenance and use of the extractor hood are not observed. -
Page 7: Carbon Filters
User manual LAM2502 LAM2503 The Carbon Filters Carbon have a limited life. We advise you to change them when there is a noticeable drop in performance. The intervals between changing the will depend entirely upon the amount of cooking you do, but on average they will last about 6 months. -
Page 8: Installation
LAMONA Appliances Installation Methods of Extraction The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. (Suitable ducting kits may be purchased from the depot where you bought the extractor.) You do not need charcoal... -
Page 9: Parts Identification
User manual LAM2502 LAM2503 PARTS IDENTIFICATION On opening your box you will the extractor body, a two-piece telescopic decorative chimney, a bag of wall and screws, two brackets, a ducting connector and reducer. Main Extractor Body Extractor Body Bracket Lower Chimney... -
Page 10: Hanging Your Extractor
LAMONA Appliances Hanging Your Extractor This instruction must be strictly adhered to. Failure to comply could result in overheating and serious damage to your appliance. It is recommended that the installation is carried out by two people. Before drilling or chiselling the ceiling or wall, check for pipes and power cables. -
Page 11: Decorative Chimney Fitting
User manual LAM2502 LAM2503 Decorative Chimney Fitting Connect the extractor to the electricity supply (see electrical connections page). We recommend an isolation switch that is accessible after installation. The outlet reducer ‘7’ maybe required depending on your ducting kit (supplied separately). -
Page 12: Electrical Connections
LAMONA Appliances Electrical Connections with at least 3mm contact separation, The isolation switch must be accessible after installation. (See technical data for fuse rating). The terminology DOUBLE POLE -/+ means that both the live and neutral supplies are switched and disconnected at the same time. -
Page 13: Technical Specification
User manual LAM2502 LAM2503 Troubleshooting TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions Lamps fail to operate? A replacement lamp is probably Disconnect the mains electricity supply before adjusting necessary, but check that the or replacing the lamps. lamp is correctly into its holder. -
Page 14: Your Guarantee
LAMONA Appliances Your Guarantee Product Guarantee Details (UK only) breakdown repairs. (Details of which are shown on your Proof of Purchase Document). Any claim during the period of the guarantee (MUST BE ACCOMPANIED BY THE PROOF OF PURCHASE) The product must be correctly installed and operated in accordance with the manufacturer’s instructions and used for normal domestic purposes. -
Page 15: Exclusive To Howdens Joinery.co Page
User manual LAM2502 LAM2503 Exclusive to Howdens Joinery.co Page _ 15... - Page 16 Issue: 12/2014 If supplied, please stick your self adhesive product rating plate here, or make a note of the product serial number below in the box below for future reference. Serial Number : ...................
Need help?
Do you have a question about the LAM2502 and is the answer not in the manual?
Questions and answers
I **** familiar with changing the carbon filters from a unit previously used. The 2502 we have now does not appear to have removable filters. It is about 8 years old. Would that be right that they cannot be changed??
The carbon filters in a Lamona LAM2502 can be changed. The manual states that carbon filters have a limited life and should be replaced when performance drops, usually around every six months. It also provides a part reference number (HJA2911) for reordering.
