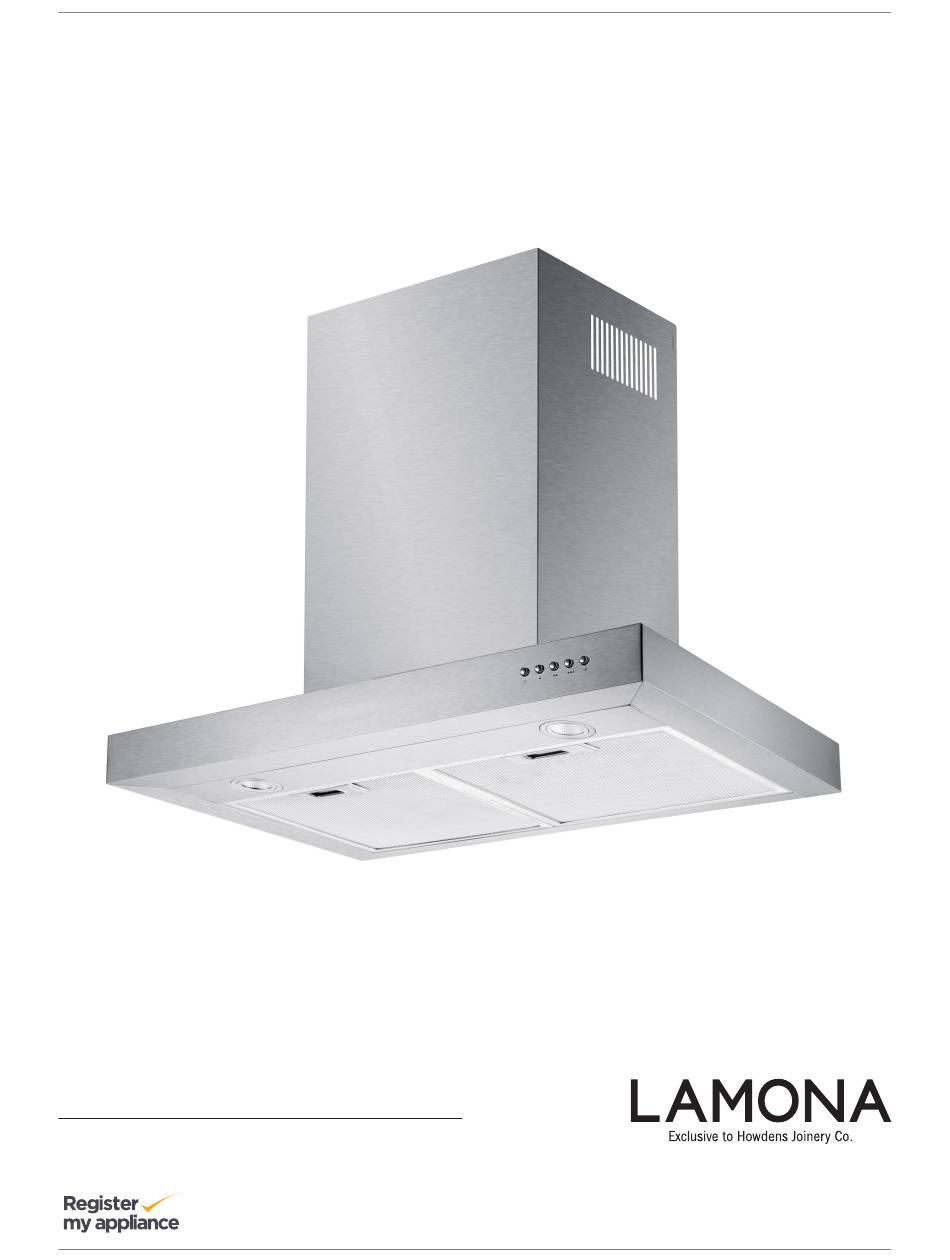

- Page 1 LAM2801 Stainless Steel T-Box LAM2802 Extractor User & Installation Guide www.howdens.com/appliance-registration...
- Page 2 See back page for product serial number...
- Page 3 LAMONA Appliances Dear Customer, Congratulations on your choice of a LAMONA domestic appliance which has been designed to give you excellent service. The user manual will help you use your product quickly and safely. • Please read this user manual before installing and using the product.
- Page 4 User manual LAM2801 LAM2802 Index Before using the extractor Safety General Safety for children Safety when working with electricity General information and operation Extractor layout Control panel layout Care and maintenance General Cleaning Grease Filters Carbon Filters Replacing the Lamps...
-
Page 5: Before Using The Extractor
LAMONA Appliances Before using the Extractor • Make sure that you have removed all packaging, wrappings, stickers and films from the Extractor Safety This appliance is for domestic extraction purposes only. It must not be used for other purposes. Commercial use will void the guarantee. -
Page 6: Safety For Children
User manual LAM2801 LAM2802 Safety for children Electrical products can be dangerous to children. Keep children away from the product when it is operating and do not allow them to play with or near the product. The packaging materials will be dangerous for children. Keep the packaging materials away from children. -
Page 7: General Information & Operation
LAMONA Appliances General Information & Operation Extractor layout Upper chimney section Lower chimney section Fan and light controls Extractor body Light Control panel layout Extractor Power Off Extractor Power Level 1 Extractor Power Level 2 Extractor Power Level 3 Extractor Light On/Off Page _ 6 Exclusive to Howdens Joinery.co... -
Page 8: Care And Maintenance
User manual LAM2801 LAM2802 Care and maintenance Before cleaning or attempting any type of maintenance, always make sure that the electricity supply is disconnected. To avoid the possibility of fire, adhere strictly to all of the recommendations included in this booklet, paying particular attention to the grease filters to ensure grease deposits do not build up. -
Page 9: The Carbon Filters
LAMONA Appliances 1 Press latch towards side of extractor 2 Lower to remove. The Carbon Filters Carbon have a limited life. We advise you to change them when there is a noticeable drop in performance. The intervals between changing will depend entirely upon the amount of cooking you do, but on average they will last about 6 months. -
Page 10: Installation
User manual LAM2801 LAM2802 Installation Methods of Extraction The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. (Suitable ducting kits using the external ducting mode. - Page 11 LAMONA Appliances PARTS IDENTIFICATION [01] [02] [03] [04] [05] 60cm model x2 [06] 90cm model x3 [08] [09](ST4 x 30mm) [07] [10] (ST4 x 8mm) [11] [12] Reduction Main Extractor Body Rawl Plugs Chimney 30 mm screws Lower chimney bracket...
-
Page 12: Hanging Your Extractor
User manual LAM2801 LAM2802 Hanging Your Extractor This instruction must be strictly adhered to. Failure to comply could result in overheating and serious damage to your appliance. It is recommended that the installation is carried out by two people. Before drilling or chiselling the ceiling or wall, check for pipes and power cables. - Page 13 LAMONA Appliances Fig 3. Fig 4. Note: It is recommended that the installation is carriedout by two people. Page _ 12 www.howdens.com...
-
Page 14: Decorative Chimney Fitting
User manual LAM2801 LAM2802 Decorative Chimney Fitting Connec extract ctricit connec For recirculation installations, fit cable grid - part [06] to Fan motor outlet. Secure the lower chimney bracket to the wall using the screws provided. racket rovided Fig 5. -
Page 15: Electrical Connections
LAMONA Appliances Electrical Connections IMPORTANT: Ensure that the electricity supply is switched off before connecting. When fitting in recirculation mode (with carbon filters) ensure the cable is shortened or securely held in place to prevent the loose cable from falling back into the motor. -
Page 16: Troubleshooting Guide
User manual LAM2801 LAM2802 Troubleshooting TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions Lamps fail to operate? • A replacement lamp is probably Disconnect the mains electricity supply before adjusting or replacing the lamps. The extractor lamps may become hot; therefore ensure (Remember that the lamps are not covered by the guarantee.) -
Page 17: Your Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0344 460 0006 Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. - Page 18 Product serial number (Place sticker here) ISSUE v2 190118...
