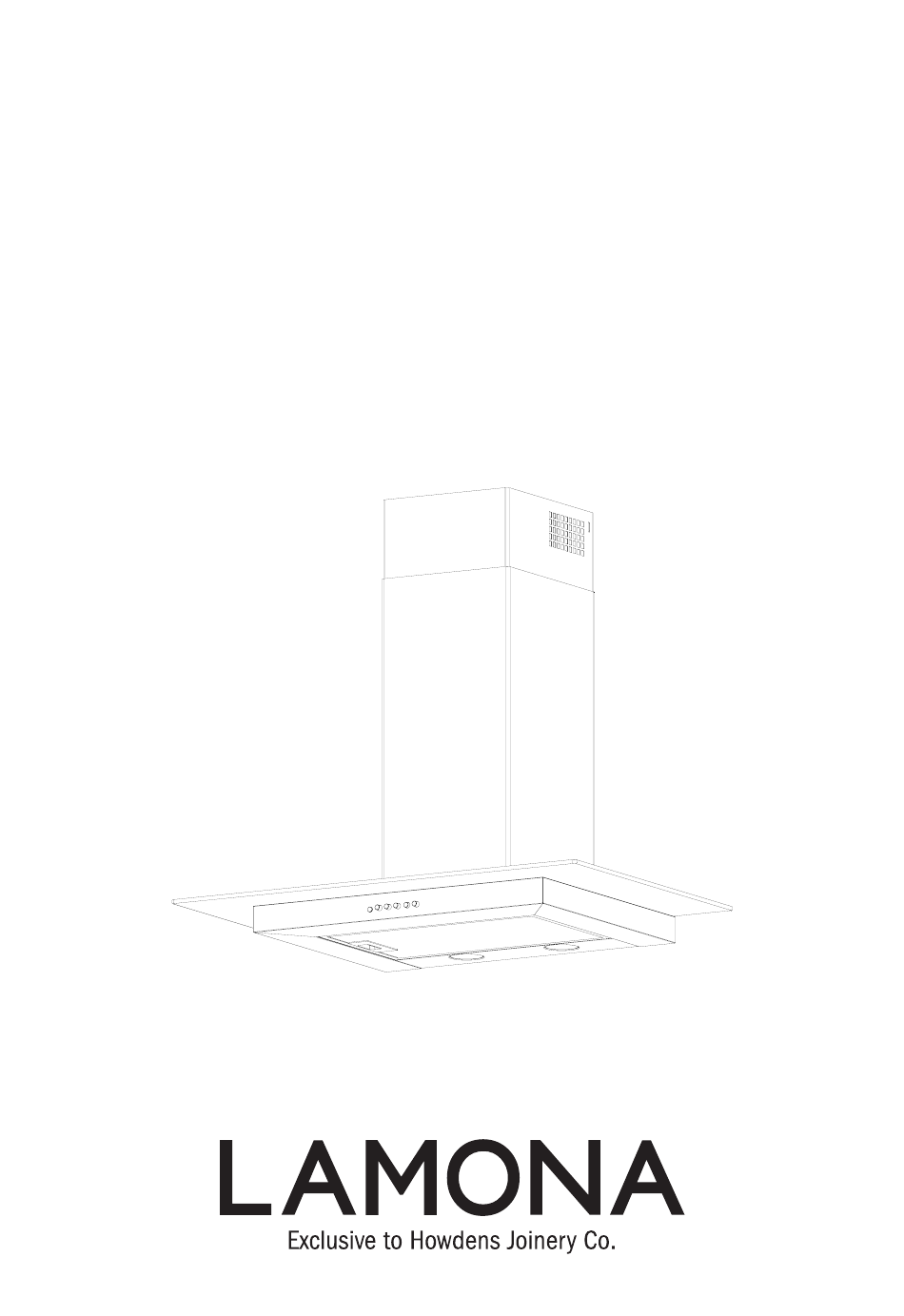

- Page 1 Stainless Steel Flat Glass Extractor LAM2500 + ACS2560 (60cm) + ACS2570 (70cm) + ACS2590 (90cm) User Instructions issue1 Feb 2012...
-
Page 2: Table Of Contents
CONTENTS Environmental Note Product information Parts Identification Parts List Methods of Extraction Installation Hanging Your Extractor Extraction Via Ducting Extraction Via Recirculation Decorative Chimney Fitting Electrical Connections Operating Your Extractor Extractor Controls Maintenance General Cleaning The Grease Filter The Carbon Filters Replacing The Light Bulbs Troubleshooting Your Guarantee... -
Page 3: Environmental Note
For more detailed information about treatment, recovery and recycling of this product, please contact your local household waste disposal service. • The packaging materials that Lamona uses are environmentally friendly and can be recycled • Please discard all packaging material with due regard for the environment. -
Page 4: Product Information
PRODUCT INFORMATION Keep this book in a handy place for reference as it contains important details on the safe and proper use of your appliance. Should you sell the extractor please remember to pass the instruction book on to the new owner. The extractor is designed to give you the option to extract air by ducting to the outside and away (via an exterior wall), or to re-circulate through charcoal filters to minimise odours, steam and condensation. -
Page 5: Methods Of Extraction
METHODS OF EXTRACTION The best method of cleaning the kitchen of unwanted odours is by connecting the appliance to an exhaust duct and venting to the outside atmosphere. Suitable ducting kits may be purchased from the depot where you bought your extractor. You do not need a charcoal filter when using the ducting mode. Ducting mode Recirculating mode (No charcoal filter required... -
Page 6: Installation
INSTALLATION HANGING YOUR EXTRACTOR IMPORTANT: This instruction must be strictly adhered to. Failure to comply could result in over- heating and serious damage to your appliance. max 855 Fixing Height Above Worktop Recommended = 750mm Minimum = 700mm Fig 1. Fig 2. -
Page 7: Extraction Via Ducting
• From inside the hood, fit the two remaining securing screws into the holes previously drilled. • Using the screws and washers provided, carefully attach the glass canopy to the extractor body. • Connect the ducting connector to the top of the hood using the screws supplied. EXTRACTION VIA DUCTING Never use the hood in areas where devices with exhaust pipes connected to the outside are already operating unless perfect ventilation can be guaranteed. -
Page 8: Decorative Chimney Fitting
DECORATIVE CHIMNEY FITTING • Connect the extractor to the electricity supply (see electrical connections page). • Slide the upper chimney section inside the lower chimney section and fit into recess on the top of the hood. • Secure the upper chimney bracket to the wall, against the ceiling. •... -
Page 9: Electrical Connections
ELECTRICAL CONNECTIONS IMPORTANT: Ensure that the electricity supply is switched off before connecting. Your appliance must be connected to fixed wiring via the use of a double pole switched fused spur outlet with at least 3mm contact separation, The isolation switch must be accessible after installation. (See technical data for fuse rating). -
Page 10: Operating Your Extractor
OPERATING YOUR EXTRACTOR EXTRACTOR CONTROLS Motor on lamp. Light switch. Motor Off switch. Selects motor speed 1. Selects motor speed 2. Selects motor speed 3. www.howdens.com Page 10... -
Page 11: Maintenance
MAINTENANCE IMPORTANT: Before cleaning or attempting any type of maintenance, always make sure that the electric supply is disconnected. To avoid the possibility of fire, adhere strictly to all of the recommendations included in this booklet, paying particular attention to the grease filters to ensure grease deposits do not build up. NOTE: The manufacturer declines all liability in cases where the instructions for the appropriate installation, maintenance and use of the extractor hood are not observed. -
Page 12: Troubleshooting
TROUBLE SHOOTING Before you assume the worst, check this simple fault-finding guide to get to the root of the problem: Lamps fail to operate? • A replacement is probably necessary, but first check that the lamp is correctly fitted into its holder. Remember that the light bulbs are not covered by our guarantee. -
Page 13: Your Guarantee
What to do if you need to report a problem- Please ensure you have ready: - The product’s model & serial numbers - Howdens Proof of Purchase document - Your full contact details. Call the Lamona Service Line on 0845 00 60 006 Page 13 www.howdens.com... -
Page 14: Contact Details
CONTACT DETAILS Lamona Customer Care Telephone number (0845) 006 0006. Lamona operates a policy of continuous improvement and reserves the right to adjust and modify its products without prior notification. www.howdens.com Page 14...
