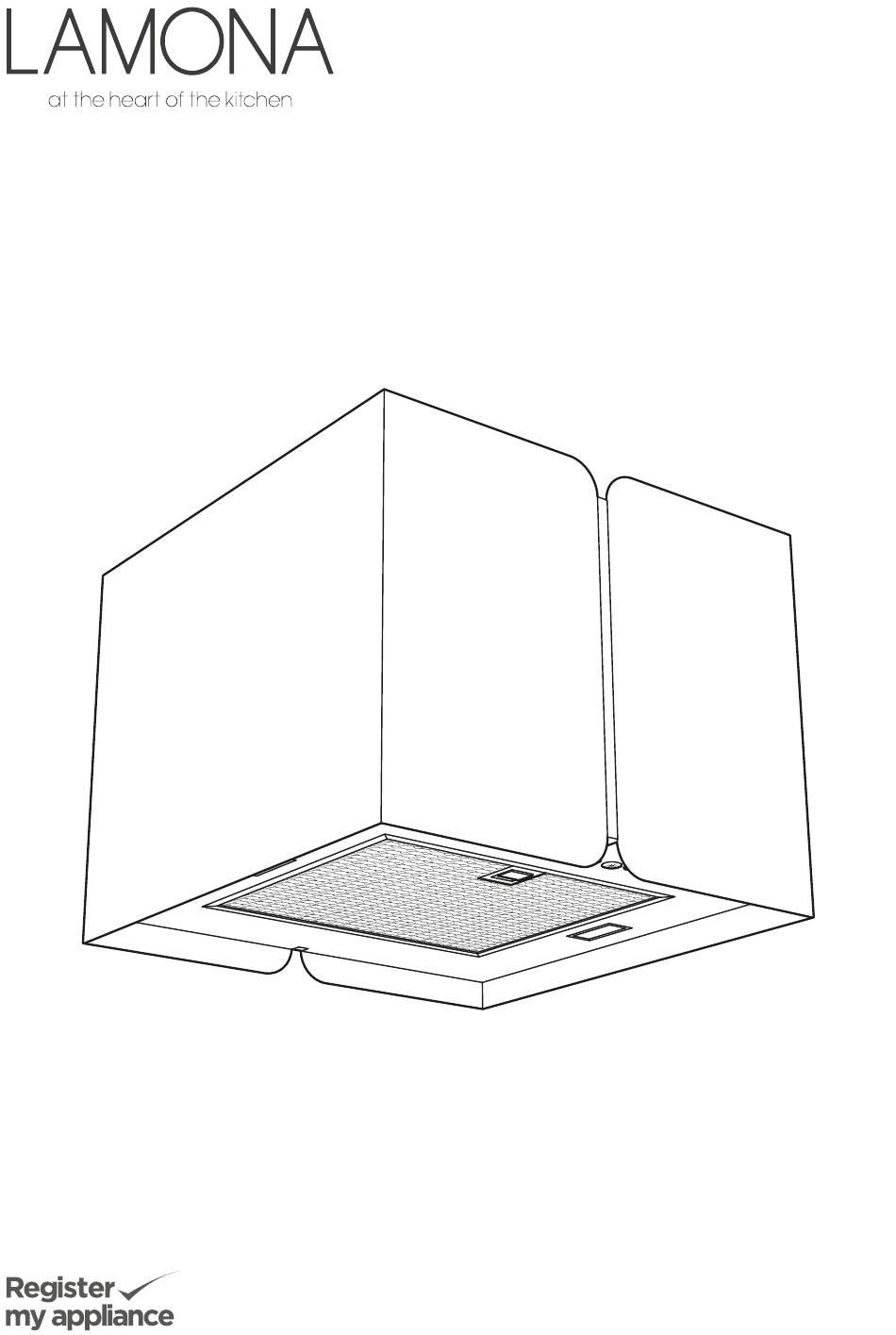

- Page 1 Pendant Cooker Hood LAM2853 User Instructions and Installation ISSUE v2 120422 www.howdens.com/appliance-registration...
-
Page 3: Table Of Contents
Welcome Dear Customer Congratulations on your choice of LAMONA Throughout this manual the domestic appliance. following symbols are used. • Please read these instructions before use to ensure safe and economical operation of Important the appliance. information or useful • Please keep these instructions in a safe hints and tips, place for your future reference. -
Page 4: Warning And Safety Information
Warning and Safety information Please read these instructions. The General safety manufacturer is not responsible if an incorrect installation and use causes injuries and/or This product is not intended to be used by damage. Always keep the instructions with the persons with physical, sensory or mental cooker hood for future reference. -
Page 5: Children And General Safety
Warning and Safety information Children and general safety Waste Electrical and Electronic Equipment (WEEE) Electrical products can be dangerous to children. Keep children away from the product when it is operating and do not allow them to symbol for waste electrical and play with or near the product. -
Page 6: Cooker Hood Overview
1. Cooker hood overview Cooker hood body Control panel Light Light Control panel overview Speed 2 Speed 3 Power Lamp indicator Speed 1 www.howdens.com... -
Page 7: Installation
2. Installation Methods of extraction The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an exhaust duct and venting to the outside atmosphere via the ceiling or an Extraction via exhaust ducting Extraction via recirculation (vented outside) (vented internally) - Page 8 On opening the packaging, remove and identify each component part. Carefully place each part on a clean, scratch free surface. Do not component parts. F R O Electric cable hole F R O www.howdens.com...
-
Page 9: Installing The Cooker Hood
Installing the cooker hood These instructions must be strictly Before drilling or chiselling the wall or adhered to. Failure to comply could result ceiling, check for pipes and power cables. in overheating and serious damage to your appliance. It is recommended that the installation is carried out by two people. - Page 10 Installing the cooker hood Mark the centre of the ceiling bracket directly above the hob. bracket. 9 0 ° Secure two screws, leaving 5mm Locate ceiling bracket and rotate. between screw head and ceiling. www.howdens.com...
- Page 11 Installing the cooker hood Secure two additional screws and Use a non-metallic object to place the tighten all screws x4. cooker hood on, at least 650mm above the hob surface, eg. the packaging box. Ensure the hob is disconnected from the mains electric.
- Page 12 Installing the cooker hood Thread the support wires into the ceiling bracket, x4. 10a. Thread from the inside of the ceiling bracket. 10b. Thread back into the inside of the ceiling bracket. Adjust the support wires to achieve the required height from the hob and for levelling the cooker hood.
- Page 13 Installing the cooker hood Secure the support wires. 12a. Fit screws to secure. Connect electric cable. Position the ceiling bracket cover. The electric cable should be connected Do not trim the support wires. DO NOT: Exclusive to Howdens...
-
Page 14: Electrical Connection
Electrical connections IMPORTANT: Ensure that the electricity IMPORTANT: The wires in the mains lead are supply is switched off before connecting. coloured in accordance with the following code:- Blue.....Neutral Brown....Live and securely held in place or a cable grid is Green/Yellow..Earth back into the motor cavity. -
Page 15: Operating The Cooker Hood
3. Operating the cooker hood Control panel Power Speed 2 Speed 3 Lamp indicator Speed 1 LED indicator Power, Speed 1; Press button to switch cooker hood On/Off. LED shows green. Speed 2; Press button to activate speed 2. LED shows red. Speed 3;... -
Page 16: Care And Maintenance
4. Care and Maintenance Before cleaning or attempting any type The manufacturer declines all liability in cases of maintenance, always make sure that the where the instructions for the appropriate electricity supply is disconnected. installation, maintenance and use of the cooker hood are not observed. -
Page 17: Replacing Lamps
power to the cooker hood is switched off. changing them when there is a noticeable drop in performance. The intervals between the amount of cooking done, but on average will last about 3 months. from your local Howdens depot or online. Part No. -
Page 18: Problem Solving
5 - Problem solving PROBLEM SOLVING Symptoms Possible cause Solutions • Switch off the cooker hood and allow it to cool down and the fuse will auto reset. Light functions but • Motor temperature has exceeded and the fan does not. thermal fuse has tripped. -
Page 19: Guarantee
• Your full contact details. Call the Depot number on your Proof of Purchase Document supplied with the product/kitchen. Call the LAMONA Service Line on: Within UK 0344 460 0006 Within Republic of Ireland 01525 5703 * Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. - Page 20 Product serial number REPRISE À DÉPOSER À DÉPOSER À LA LIVRAISON EN MAGASIN EN DÉCHÈTERIE Cet appareil se recycle Points de collecte sur www.quefairedemesdechets.fr Privilégiez la répara�on ou le don de votre appareil! Howden Joinery Ltd. Thorpe Road, Howden, East Yorkshire. DN14 7PA Imported in EU by: Howdens Cuisines SAS.
