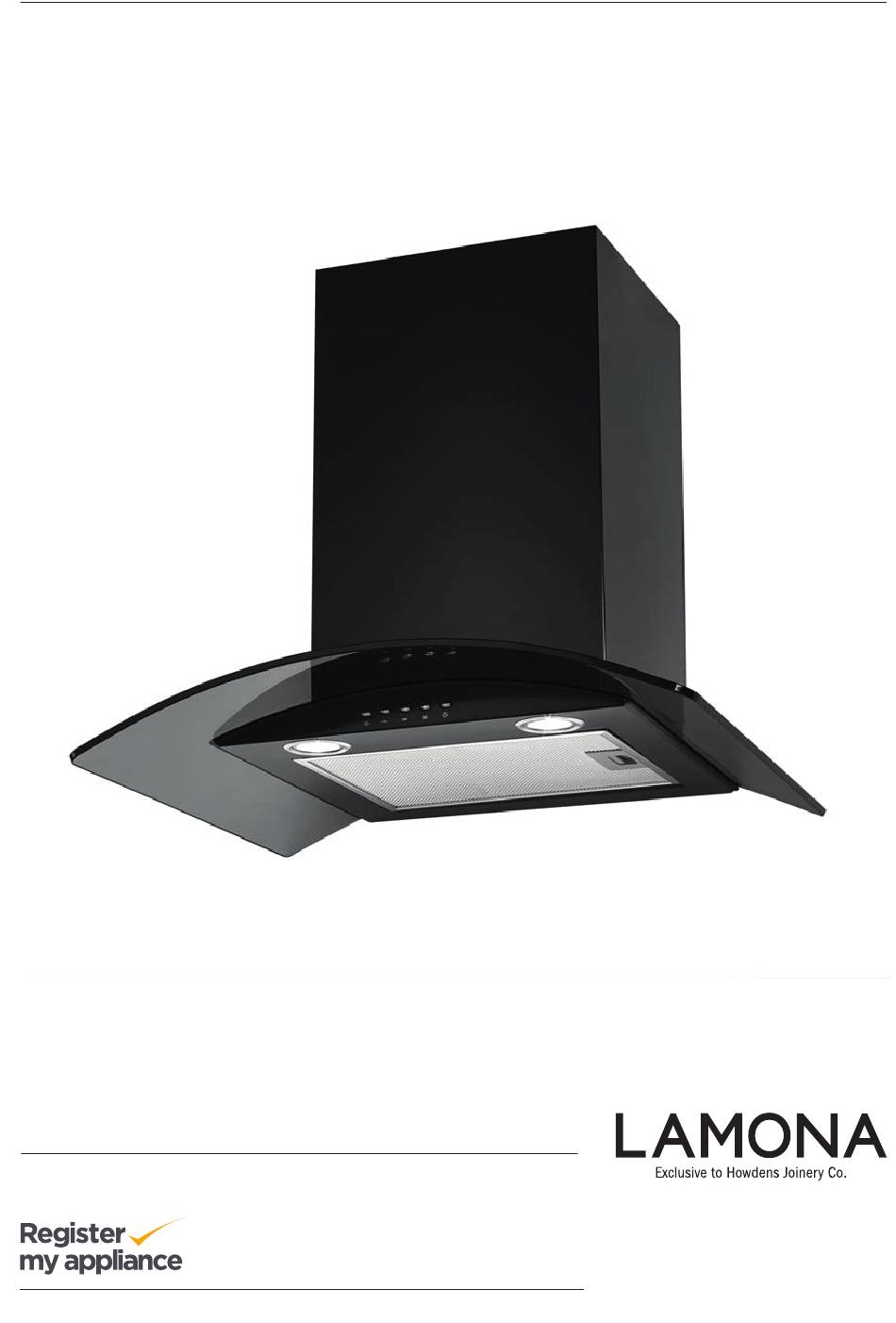

- Page 1 Black Curved Glass LAM2504 Chimney Extractor Instructions and Installation www.howdens.com/appliance-registration...
- Page 2 See back page for product serial number...
- Page 3 LAMONA Appliances Dear Customer, Congratulations on your choice of a LAMONA domestic appliance. The user manual will help you use your product quickly and safely. • Please read this user manual before installing and using the product. • Always follow the safety instructions.
-
Page 4: Table Of Contents
User Manual LAM2504 Index Before Using The Extractor Safety General Safety for Children Safety When Working With Electricity General Information and Operation Extractor Layout Control Panel Layout Care and maintenance General Cleaning Grease Filters Carbon Filters Replacing the Lamps Installation... -
Page 5: Before Using The Extractor
LAMONA Appliances Before Using the Extractor • Make sure that you have removed all packaging, wrappings, stickers and from the Extractor • It is recommended that you clean the extractor’s surface before using for the time. Safety Product must be disconnected from the •... -
Page 6: Safety For Children
User manual LAM2504 Fire Safety Do not set your cooker hood less than 700mm above your cooker When installing the hood, ensure that • When installed between adjoining the following recommended distances wall cabinets, the cabinets must not are observed between the heighest overhang the hob. -
Page 7: General Information And Operation
User manual LAM2504 General Information & Operation Extractor layout Upper Chimney Section Recirculation Vent Lower Chimney Section Fan and Light Controls Extractor Body Grease Filters Light Glass Canopy Control Panel Layout Extractor Power Off Extractor Power Level 1 Extractor Power Level 2... -
Page 8: Care And Maintenance
LAMONA Appliances Care and Maintenance Before cleaning or attempting any type of maintenance, always make sure that the electricity supply is disconnected. The manufacturer declines all liability in cases where the instructions for the appropriate installation, maintenance and use of the extractor hood are not observed. -
Page 9: Carbon Filters
User Manual LAM2504 The Carbon Filters Carbon have a limited life. We advise you to change them when there is a noticeable drop in performance. The intervals between changing the will depend entirely upon the amount of cooking you do, but on average they will last about 3 - 6 months. Please quote the part reference number HJA2906 (pack of 2) when re-ordering. -
Page 10: Installation
LAMONA Appliances We recommend you turn the extractor on Installation 5-10 minutes before cooking for maximum efficiency of operation. Methods of Extraction The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. -
Page 11: Parts Identification
User manual LAM2504 PARTS IDENTIFICATION On opening your box you will the extractor body, a two-piece telescopic decorative chimney, a bag of wall and screws, two brackets, a ducting connector and reducer. Outlet Reducer Main Extractor Body Rawl Plug Lower Chimney... -
Page 12: Hanging Your Extractor
LAMONA Appliances Hanging Your Extractor This instruction must be strictly adhered to. Failure to comply could result in overheating and serious damage to your appliance. It is recommended that the installation is carried out by two people. Before drilling or chiselling the ceiling or wall, check for pipes and power cables. -
Page 13: Decorative Chimney Fitting
User Manual LAM2504 Decorative Chimney Fitting Connect the extractor to the electricity supply (see electrical connections page). We recommend an isolation switch that is accessible after installation. The outlet reducer maybe required depending on your ducting kit (supplied separately). Fit the appropriate ducting kit if venting externally. -
Page 14: Electrical Connections
LAMONA Appliances Electrical Connections IMPORTANT: Ensure that the electricity supply is switched off before connecting. Your appliance must be connected to wiring via the use of a double pole switched fused spur outlet with at least 3mm contact separation, The isolation switch must be accessible after installation. (See technical data for fuse rating). -
Page 15: Technical Specification
User manual LAM2504 Troubleshooting TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions Lamps fail to operate? • A replacement lamp is probably Disconnect the mains electricity supply before adjusting necessary, but check that the or replacing the lamps. lamp is correctly into its holder. -
Page 16: Your Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0344 460 0006 *Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. - Page 17 User manual LAM2504 LAM2504 61.5 kWh/a 6.60% 100.4 283.8 m /h 77 Pa 445.2 m /h 92.5 W 1.0 W 64 lux 56 dB In order to reduce the environmental impact (e.g. energy use) of the cooking process, please be sure that your product is installed according to the user manual. Ensure adequate ventilation and keep any duct work as short and as direct as possible.
