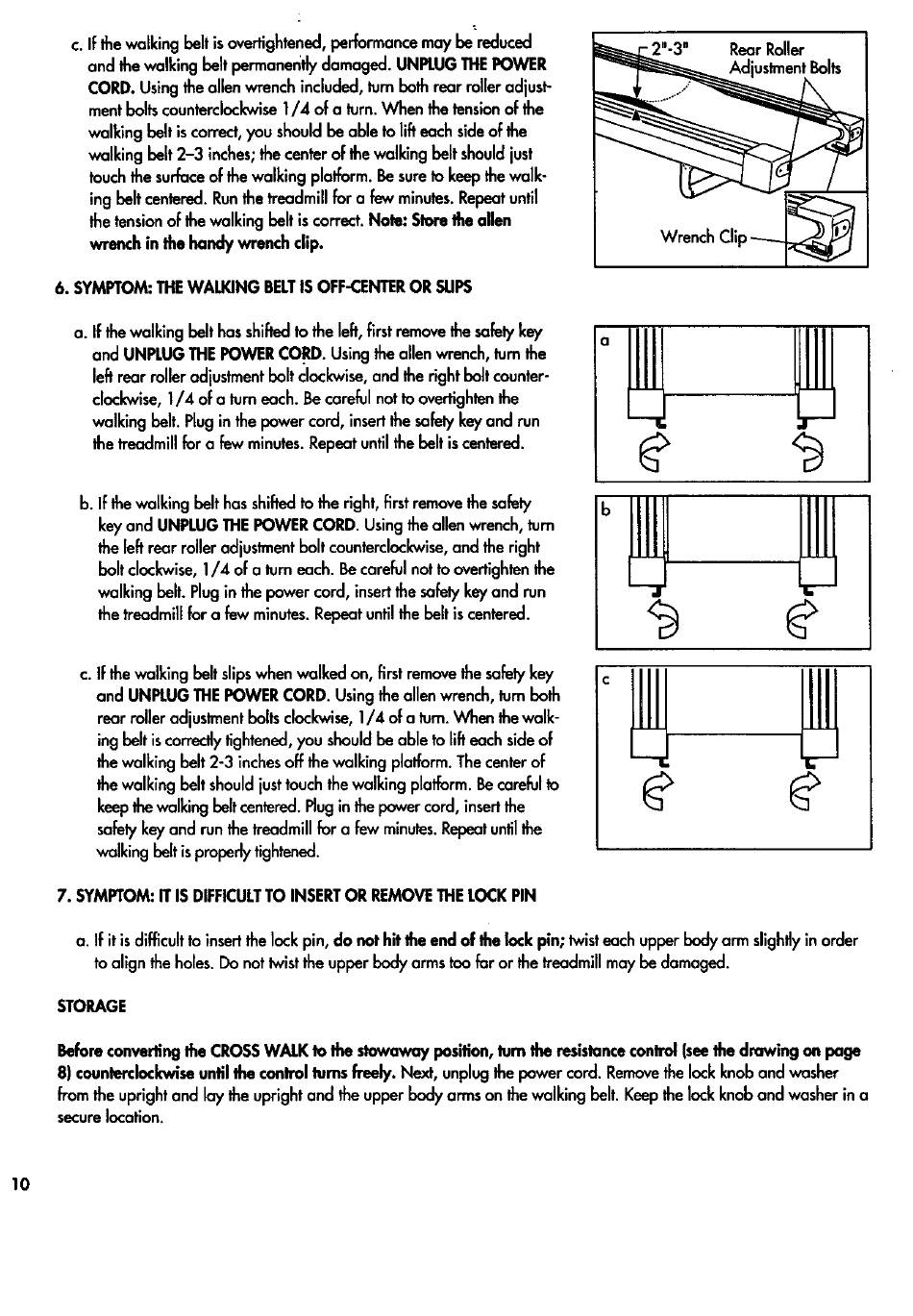

Sears Pro-Form CROSS WALK Owner's Manual page 10

C.
If the walking belt is overtightened, performance may be_reduced
and the walking belt permanently damaged. UNPLUG THE POWER
CORD. Using the allen wrench included, rum beth rear roller adjust-
ment belts counterclockwise 1/4 of a turn. When the tension of the
walking belt is correct, you should be able to lift each side of the
walking belt 2-3 inches;the center of the walking belt shouldjust
touch the surface of the walking platform. Be sure to keep the walk-
ing belt centered. Runthe treadmill for a few minutes.Repeat until
the tension of the walking belt is correct. Note: Store the allen
wrench in the handy wrench clip.
6. SYMPTOM: THEWALKING BELTIS OFF-CENTEROR SUPS
- 2"-3" RearRoller
Adjustment Bolts
o. If the walking belt has shiftedto the left, first remove the safety key
and UNPLUG THE POWER CORD. Using the allen wrench, turn the
left rear roller adjustment bolt clockwise, and the right belt counter-
clockwise, 1/4 of a turn each. Be careful not to overtighten the
walking belt. Plug in the power cord, insertthe safety key and run
the treadmill for a few minutes. Repeat until the belt is centered.
b. If the walking belt has shifted to the right, first remove the safety
key and UNPLUG THE POWER CORD. Using the allen wrench, turn
the left rear roller adjustment bolt counterclockwise, and the right
bolt clockwise, 1/4 of a turn each. Be careful not to overtighten the
walking belt. Plugin the power cord, insertthe safety key and run
the treadmill for a few minutes. Repeat until the belt is centered.
C.
If the walking belt slipswhen walked on, first remove the safety key
and UNPLUG THE POWER CORD. Using the allen wrench, turn both
rear roller adjustmentbolts clockwise, 1/4 of a turn. When the walk-
ing belt is correclty tightened, you shouldbe able to lift each side of
the walking belt 2-3 inchesoff the walking platform. The center of
the walking belt should just touch the walking platform. Be careful to
keep the walking beltcentered. Plugin the power cord, insertthe
safety key and run the treadmill for a few minutes.Repeatuntilthe
walking belt isproperly tightened.
7. SYMPTOM: IT IS DIFFICULTTO INSERT OR REMOVE THE LOCK PIN
a. If it is difficultto insertthe lock pin, do not hit the end of the lock pin; twisteach upper body arm slighttyin order
to align the holes. Do not twist the upper body arms too far or the treadmill may be damaged.
STORAGE
Before converting the CROSS WALK to the stowaway position, rum the resistoncecontrol (see the drawing on page
8) counterclockwiseuntil the conlrol rums freely. Next, unplug the power cord. Removethe lock knob and washer
from the upright and lay the upright and the upper body arms on the walking belt. Keep the lock knob and washer in a
securelocation.
