Sawo TH2-30NS Installation Diagram

TOWER ROUND HEATER-
Classic 2.0 Classic SST
POWER
CONTROLLER
Circuit Breaker/Fuse
POWER
SUPPLY
CONTACTOR
UNIT
Circuit Breaker/Fuse
NOTE!
Additional contactor unit needs to be used when
heater is more than 15kW. Please refer to the
control unit manual for maximum power rating.
NS Ni Ni2 NB

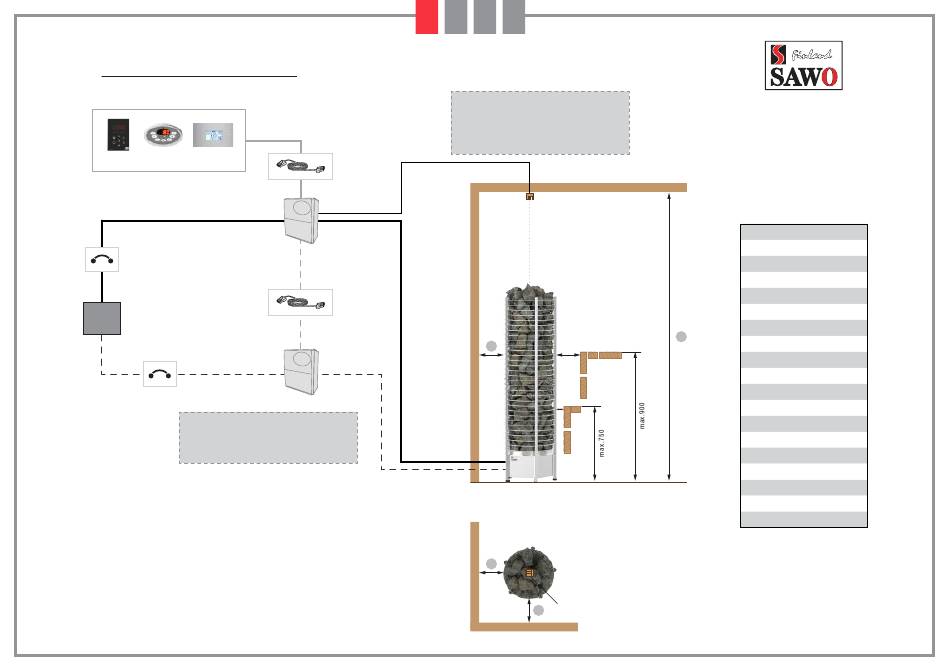

Installation Diagram for Separate Control (NS)
NOTE!
Do not place the sensors too near to air
ventilation (not under 1000mm) or not under
500mm from air ventilation, which is directed
RJ12
away from sensors.
4m
RJ12
1m
Sensor
A
100
Min.
20mm
HEATER
FRONT VIEW
A
Sensor
A
TOP VIEW
Minimum Safety Distances
Heater
A B
Model
TH2-30NS 100 1900
TH3-35NS 100 1900
TH3-45NS 100 1900
TH3-60NS 150 1900
TH4-60NS 150 1900
TH5-80NS 150 1900
TH5-90NS 200 1900
B
TH6-80NS 100 1900
TH6-90NS 100 1900
TH6-105NS 150 1900
TH6-120NS 200 2100
TH9-105NS 150 2100
TH9-120NS 150
2100
TH9-150NS 200
2100
TH9-180NS 200 2100
TH12-150NS 200 2300
TH12-180NS 200 2300
TH12-210NS 200 2300
TH12-240NS 200 2300
