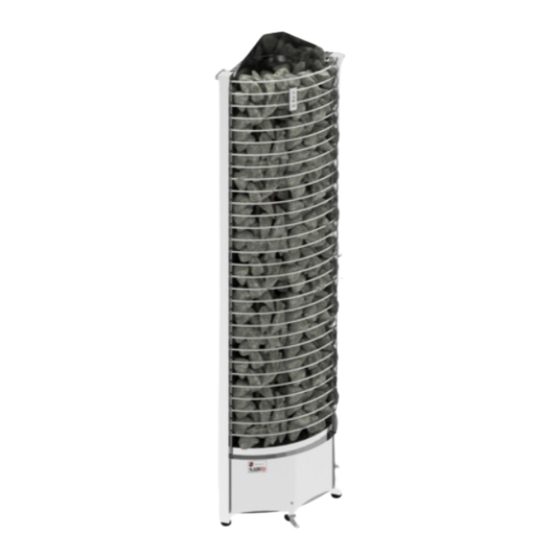

TOWER CORNER HEATER-
Classic 2.0
Classic
SST
POWER
CONTROLLER
Circuit Breaker/Fuse
POWER
SUPPLY
NS
NS Ni Ni Ni2 NB
NS Ni2 NB

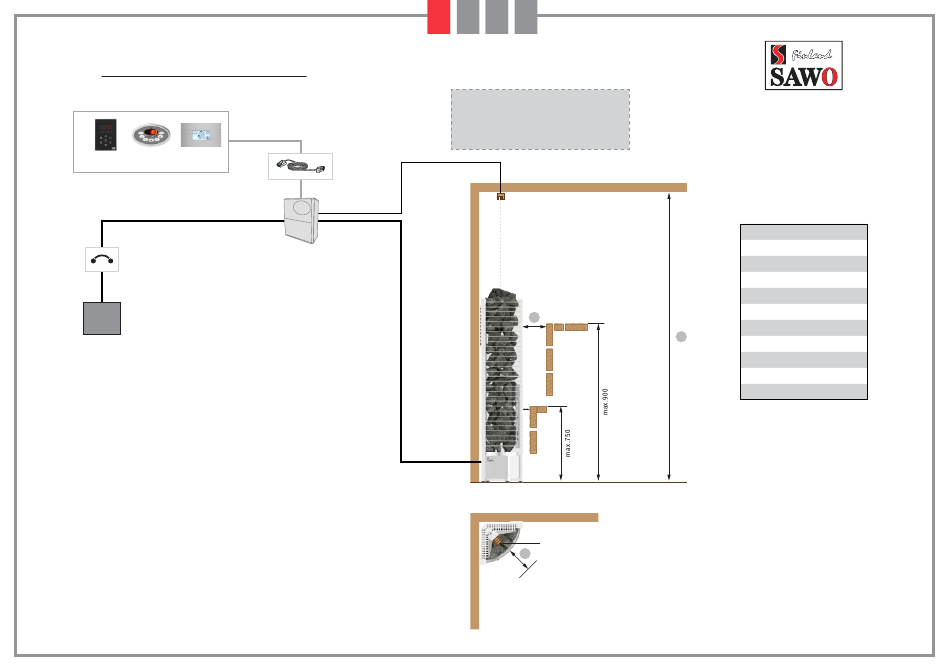

Installation Diagram for Separate Control (NS)
NOTE!
Do not place the sensors too near to air
ventilation (not under 1000mm) or not under
500mm from air ventilation, which is directed
RJ12
away from sensors.
4m
Sensor
A
Min.
20mm
HEATER
FRONT VIEW
Sensor
A
TOP VIEW
Minimum Safety Distances
Heater
A
B
Model
TH2-30NS-CNR
100
1900
TH3-35NS-CNR
100
1900
TH3-45NS-CNR
100
1900
TH3-60NS-CNR
100
1900
TH4-60NS-CNR
100
1900
TH5-80NS-CNR
100
1900
TH5-90NS-CNR
100
1900
B
TH6-80NS-CNR
100
1900
TH6-90NS-CNR
100
1900
TH6-105NS-CNR
100
1900
TH6-120NS-CNR
100
2100
Advertisement
Table of Contents
Related Manuals for Sawo TH2-30NS-CNR
Summary of Contents for Sawo TH2-30NS-CNR
- Page 1 (not under 1000mm) or not under 500mm from air ventilation, which is directed RJ12 away from sensors. Classic 2.0 Classic Minimum Safety Distances Heater POWER Sensor CONTROLLER Model TH2-30NS-CNR 1900 TH3-35NS-CNR 1900 Circuit Breaker/Fuse TH3-45NS-CNR 1900 TH3-60NS-CNR 1900 TH4-60NS-CNR 1900 TH5-80NS-CNR...
- Page 2 NS Ni2 NB NS Ni Ni Ni2 NB TOWER CORNER HEATER- Installation Diagram for Innova Separate Control (Ni) NOTE! Do not place the sensors too near to air ventilation (not under 1000mm) or not under 500mm from air ventilation, which is directed RJ12 away from sensors.
- Page 3 NS Ni2 NB NS Ni Ni Ni2 NB TOWER CORNER HEATER- Installation Diagram for Saunova 2.0 Control (Ni2) NOTE! Do not place the sensors too near to air ventilation (not under 1000mm) or not under 500mm from air ventilation, which is directed away from sensors.
- Page 4 NS Ni2 NB NS Ni Ni Ni2 NB TOWER CORNER HEATER- Installation Diagram for Built-in Control (NB) Minimum Safety Distances Heater Model TH2-30NB-CNR 1900 TH3-35NB-CNR 1900 TH3-45NB-CNR 1900 TH3-60NB-CNR 1900 TH4-60NB-CNR 1900 TH5-80NB-CNR 1900 POWER SUPPLY TH6-80NB-CNR 1900 TH6-90NB-CNR 1900 Circuit Breaker/Fuse Min.
