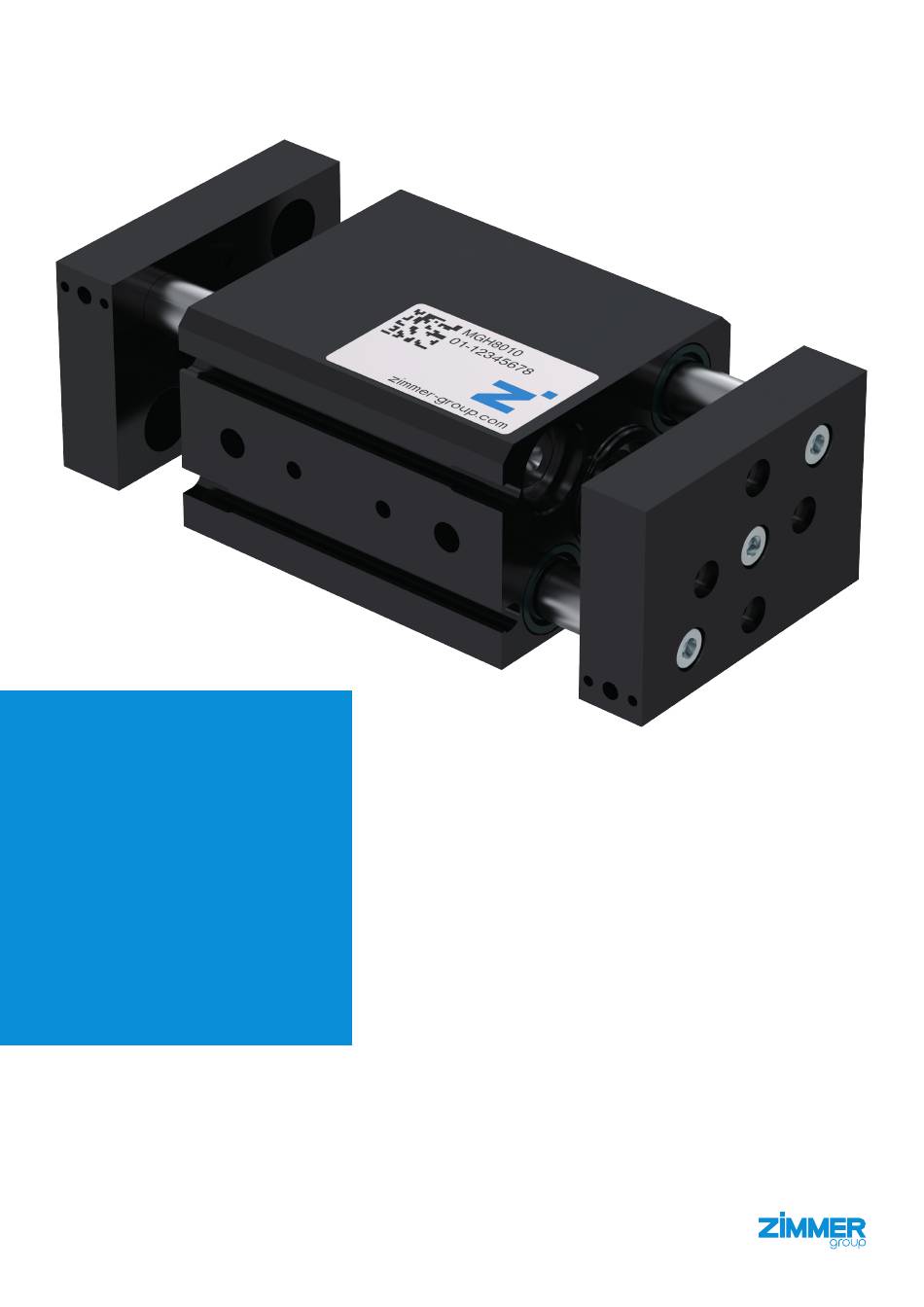

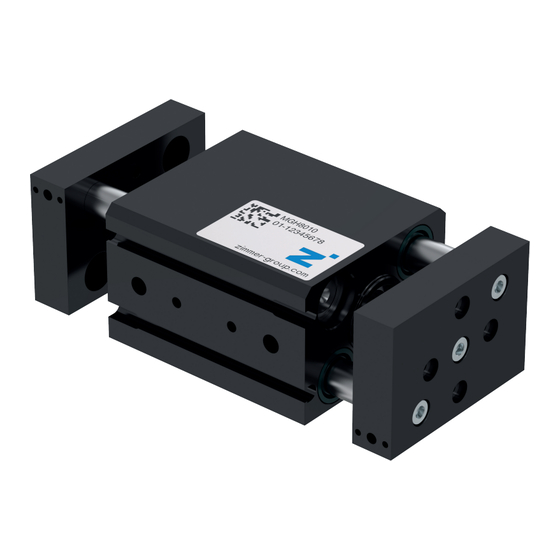

- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS 2-jaw parallel gripper with long stroke, pneumatic MGH8000 DDOC00279 THE KNOW-HOW FACTORY www.zimmer-group.com...
-
Page 3: Table Of Contents
10.3 Installing the sensors .........................................10 10.3.1 Setting the inductive sensors .....................................10 10.3.2 Adjusting the magnetic field sensors .................................10 10.4 Installing accessories ........................................10 11 Maintenance ....................................11 12 Decommissioning/disposal ..............................11 13 Declaration of Incorporation ..............................12 Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 4: Supporting Documents
Ö The warning symbols are assigned according to the type of danger. INFORMATION This category contains useful tips for handling the product efficiently. Failure to observe these tips will not result in damage to the product. This information does not include any information relevant to health or workplace safety. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 5: Safety Notices
• Use of the product under extreme conditions, such as aggressive fluids or abrasive dusts • Additional drilled holes or threads Ö Zimmer GmbH shall accept no liability for any damage caused by improper use. The operator bears sole responsibility. ► Make sure that the power supply is disconnected before you mount, adjust, modify, maintain or repair the product. -
Page 6: Personnel Qualification
5 Product description 5.1 Type plate A type plate is attached to the housing of the product. The article number and the confirmation number are shown on the type XX-XXXXXX plate. Article number Confirmation number Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 7: Functional Description
8 Accessories/scope of delivery INFORMATION If any accessories not sold or authorized by Zimmer GmbH are used, the function of the product cannot be guaranteed. Zimmer GmbH accessories are specifically tailored to the individual products. ► For optional accessories and those included in the scope of delivery, refer to our website. -
Page 8: Installation
• The mounting screws are not included in the scope of delivery. ► Install the product on an appropriate mounting surface in accordance with the flatness specifications. ► Make sure that the mounting piece is sufficiently rigid. ► Please note the permitted tightening torques of the mounting screws at www.zimmer-group.com/de/td. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 9: Installing The Product
► The authorized connections that are available can be found in the accessories list on our website. The necessary ordering information can also be found there. ► Use compressed air in accordance with DIN ISO 8573-1 [4:4:4]. ► Mount the screw fittings in the provided connections. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 10: Installing The Sensors
► Before installing an accessory, make sure it is suitable for use with the selected variant. ► You can find information on our website. ► Please contact Customer Service if you have any questions. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 11: Maintenance
► Have maintenance work that requires disassembly of the product performed by customer service if possible. Ö Dismantling and reassembling the product without authorization may result in complications, as special installation equipment is required in some cases. Zimmer GmbH accepts no liability for any resulting malfunctions or damage. 12 Decommissioning/disposal INFORMATION When the product reaches the end of its operational phase, it can be completely disassembled and disposed of. -
Page 12: Declaration Of Incorporation
Machinery and an EC Declaration of Conformity has been drawn up in accordance with Annex II 1 A. Kurt Ross Rheinau, Germany, 2015-05-04 Authorized representative for the (Place and date of issuance) Martin Zimmer compilation of relevant technical (Legally binding signature) documents Managing Partner Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com...
