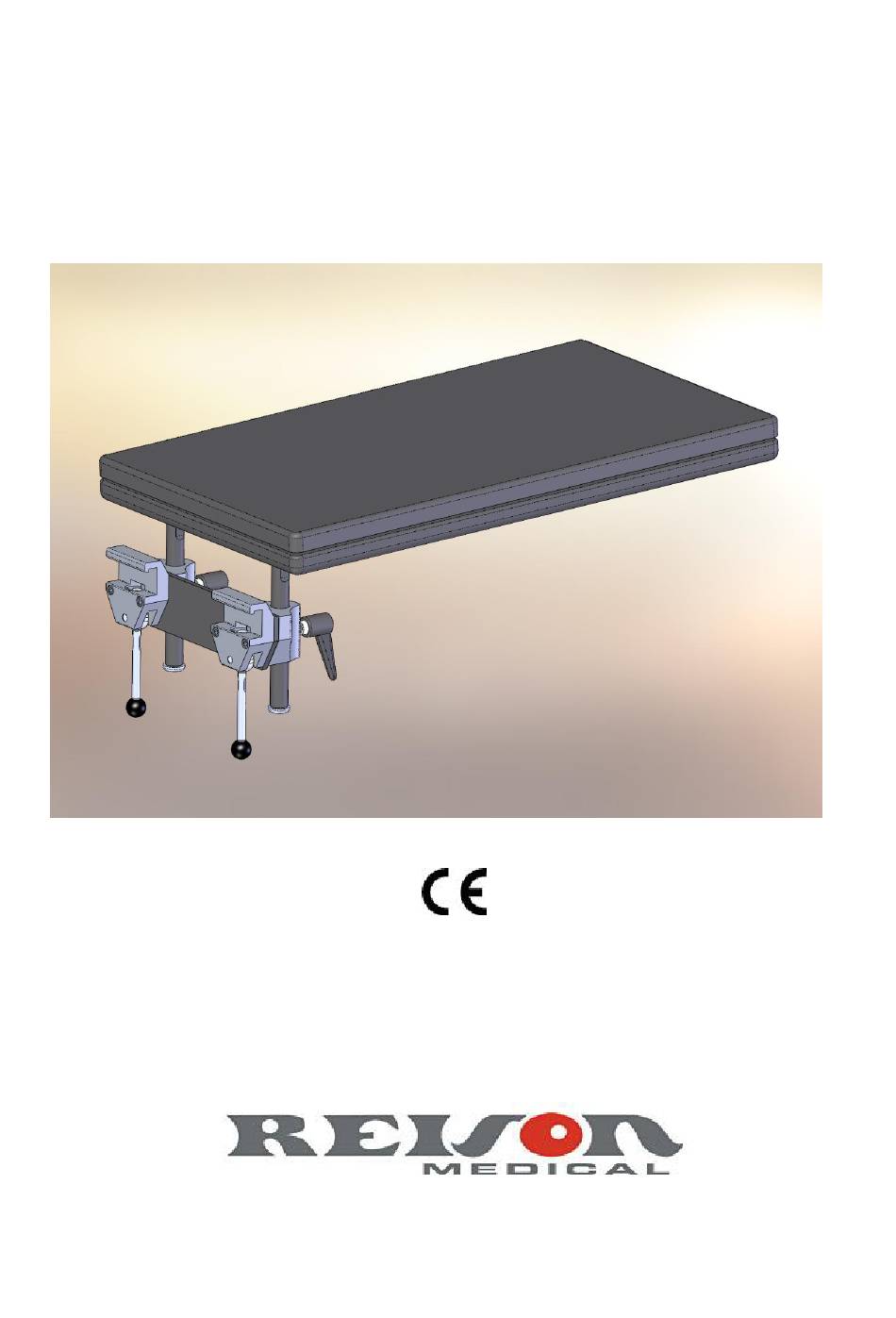

- Page 1 USER´S MANUAL ARM & HAND OP.TABLE 10-396-K GMDN 62599 PID 129047 10-396-K Edit.3 Page 1( 5...
- Page 2 200kg. ❖ During moving of mobile operating tables, the arm operating table must be removed to avoid collision with other equipment. ❖ A function control must always be done before every use of the equipment. 10-396-K Edit.3 Page 2( 5...
- Page 3 Adjustment of the height is made by turning the two lock levers for height adjustment one turn anticlockwise, set desired height and then lock by turning the levers clockwise. 10-396-K Edit.3 Page 3( 5...
- Page 4 11. Shaft 10009 2pcs. 12. Spring 10013 2pcs. 13. Pin 10012 2pcs. 14. Plunger 10711 1pc. 15. Eccentric 11165 2pcs. 16. Lock lever 10014 2pcs. 17. Ball K20 M8 S 2pcs. 18. Pad fixation 11364 4pcs. 10-396-K Edit.3 Page 4( 5...
- Page 5 34cm Height 22cm Height adjustment 9,5cm Weight 4,2kg Safe Working Load 15kg Max patient weight 200kg Box 240 Eriksbergsvägen 32A 734 25 Hallstahammar Sweden Phone: +46 220 43399 Fax: +46 220 29016 E-mail: info@reison.se www.reison.se 10-396-K Edit.3 Page 5( 5...
