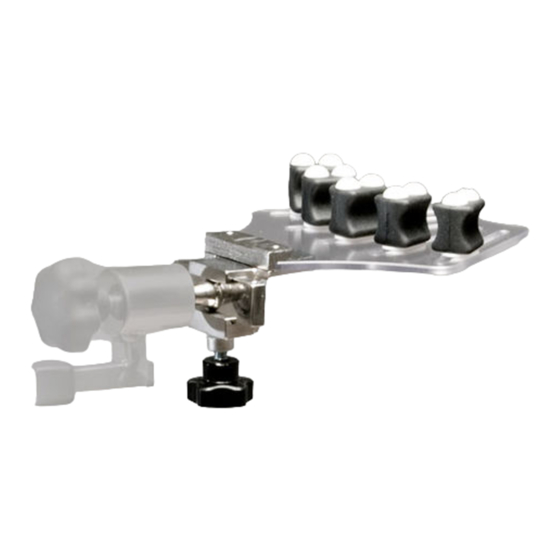

Hand fixation 10-393
Warning! This symbol indicates important information related to safety. Follow these
instructions carefully.
Read User Manual before use! It is important to fully understand the content of the user
manual before attempting to use the equipment.
2020-10-30
Document number: M10-393EN rev.01
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10-393 and is the answer not in the manual?

Questions and answers

Related Manuals for Reison 10-393

Summary of Contents for Reison 10-393

  • Page 1 Hand fixation 10-393 Warning! This symbol indicates important information related to safety. Follow these instructions carefully. Read User Manual before use! It is important to fully understand the content of the user manual before attempting to use the equipment. 2020-10-30...
  • Page 2 Intended use Hand fixation intended to fixate the patient hand when the arm is stretched during surgery. The product is to be used by medical professionals within a medical facility. Safety regulation Before use, ensure correct function! Service and preventive maintenance shall be performed by authorized personnel. User instruction Installation Hand positioning...
  • Page 3 Cleaning Clean with antiseptic detergent with pH 6 – 8 and warm water. Wipe dry with soft cloth. Do not use strong acidic or alkaline detergent. Control Check the function and that there are no loose parts or damage to any part Annual Service Once a year the hand fixation shall be carefully cleaned, threading’s shall be lubricated, the locking function shall be tested.
  • Page 4 Spare parts Description Article no. Clamp 11568 Hand plate 11572 Rail 11577 Washer 11573 Screw MF6S M5x16 A2 Knob VCT.43-pM8x16 soft Shaft 11575 Rubber stud 11576 Washer 11574 Technical specification Weight 0,7 kg Dimension (H x W x L) 115 x 190 x 220 mm Material Hand fixation Polykarbonate Stainless steel...
  • Page 5 Reison Medical AB Eriksbergsvägen 32A 734 92 Hallstahammar SWEDEN +46 (0)220 433 99 order@reison.se info@reison.se...
