TDK-Lambda ZWS10C Series Instruction Manual page 9

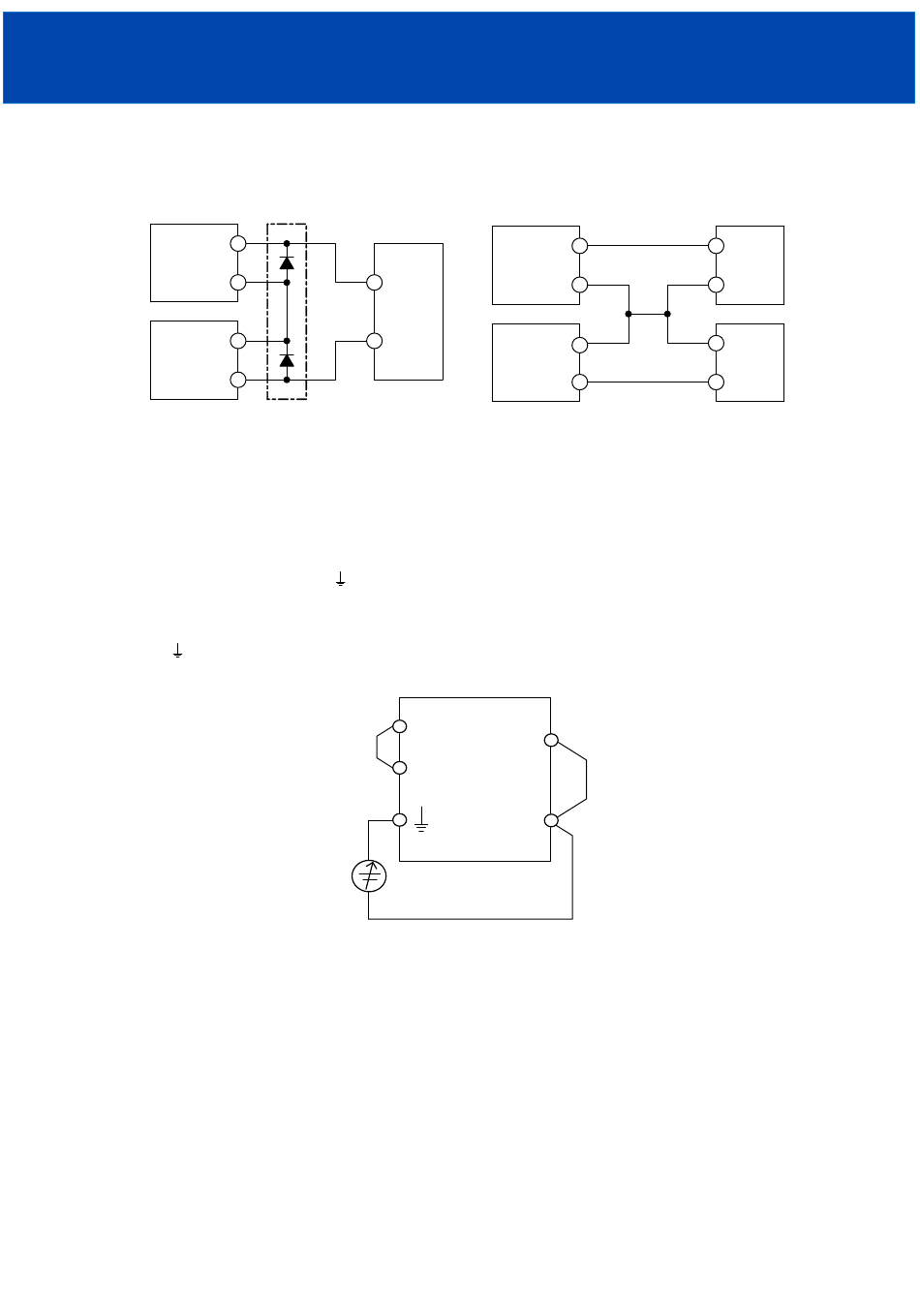

6-6. Series Operation
For series operation, either method (A) or (B) is possible.
Method (A)
+
V
Power
Supply
-
V
+
V
Power
Supply
-
V
Note : Ensure that all units must be in operation. (Never use in condition that one of the units is not operated.)
Please select a bypass diode with maximum forward current rating more than output load current.
And maximum reveres voltage must withstand each power supply output voltage.
6-7. Isolation Test
Isolation resistance between Output - terminal is more than 100MΩ at 500VDC.
For safety operation, voltage setting of DC isolation tester must be done before the test.
Ensure that the unit is fully discharged after the test.
Output - terminal : 500VDC More than 100MΩ
Isolation Tester
Method (B)
＋
Load
－
Bypass diodes
AC (L)
AC (N)
<Page> 9/20
TDK-Lambda
ZWS10C - 50C Series
INSTRUCTION MANUAL
+
V
Power
Supply
-
V
+
V
Power
Supply
-
V
+ V
- V
＋
Load
－
＋
Load
－
