TDK-Lambda ZWS10C Series Instruction Manual page 17

7-4-2. Mounting method for /A type, /L type
/A type is optional model with metal chassis and cover.
/L type is optional model with metal chassis.
The mounting holes on the bottom(A) or on the side(B) of the chassis are for power supply fixing.
The maximum allowable penetration for screw into chassis is 4mm. Consider the incomplete threads when installing.
Recommended torque for mounting screw : M3 screw, 0.59N·m (6.0 kgf · cm).
Refer to the /A type and /L type outline drawings for the detailed dimensions.

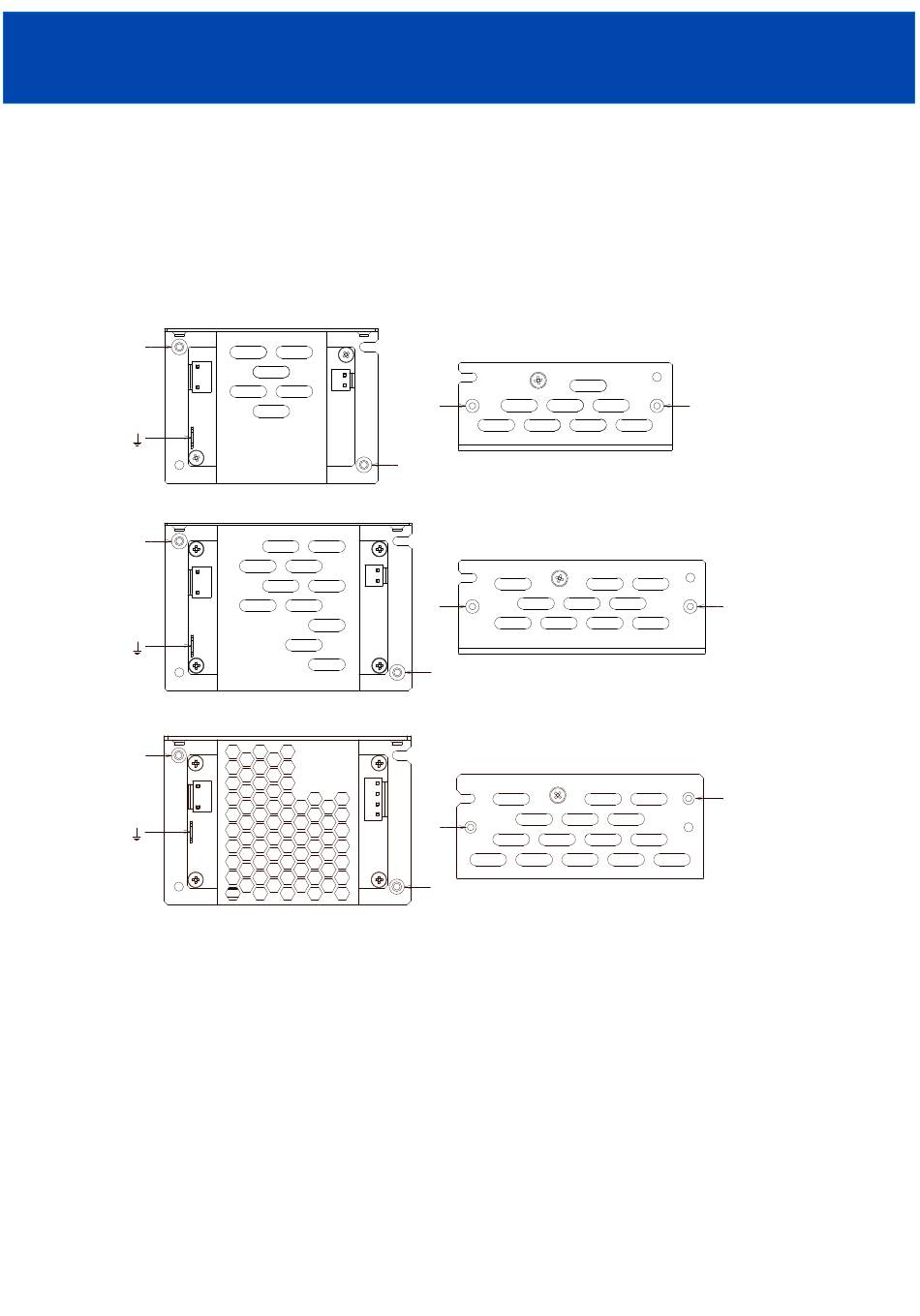

■ /A type
ZWS10C/ZWS15C
(A)
CN1
3
1
CN2
Terminal
ZWS30C
(A)
CN1
3
1
CN2
Terminal
ZWS50C
(A)
CN1
3
1
Terminal
CN2
1
2
CN51
(B)
(A)
1
2
CN51
(B)
(A)
1
2
3
4
CN51
(B)
(A)
<Page> 17/20
TDK-Lambda
ZWS10C - 50C Series
INSTRUCTION MANUAL
(B)
(B)
(B)
