Summary of Contents for Pickering 40-618A
- Page 1 User Manual Source Switching Module (Model No. 40-618A) Issue 1.0 March 2019 pickeringtest.com pickering SOURCE SWITCHING MODULE 40-618A Page (1)
- Page 2 © COPYRIGHT (2019) PICKERING INTERFACES. ALL RIGHTS RESERVED. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
- Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.
-
Page 4: Product Safety
If this product is heavy reference should be made to the safety instructions for provisions of lifting and moving. STATIC SENSITIVE To indicate that static sensitive devices are present and handling precautions should be followed. REED RELAY MODULE 40-110/115/120/125 SOURCE SWITCHING MODULE 40-618A Page (IV) Page (IV) -
Page 5: Table Of Contents
Pre Operation Checks ............3.1 Hardware Installation ............3.2 Software Installation .............3.2 Testing Operation ..............3.3 Section 4 Programming Guide ..............4.1 Programming Options For Pickering PXI Modules ....4.1 Module Architecture ..............4.2 Sub-unit Cross Reference ............4.3 Programming The Module ............4.4 Section 5 Connector Information ..............5.1 Section 6 Trouble Shooting .................6.1... - Page 6 THIS PAGE INTENTIONALLY BLANK SOURCE SWITCHING MODULE 40-618A Page (VI)
-
Page 7: Warnings And Cautions
Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale. This module must not be used for the switching of Mains Circuits. For the switching of voltages up to the module’s full specification, Secondary Circuit power supplies and the Device Under Test must... - Page 8 • For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on the front of the unit. SOURCE SWITCHING MODULE 40-618A Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579...
-
Page 9: Technical Specification

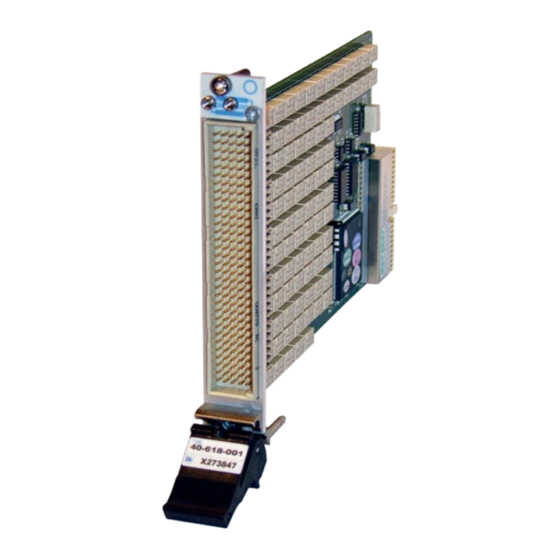

• Supported by PXI or LXI Chassis • 3 Year Warranty The 40-618A Source Switching Module consists of 12 separate 4-channel multiplexers and 44 uncommitted SPST relay contacts in a single width PXI module. Typical applications include signal routing for avionics test systems that conform to the ARINC 608A specification. - Page 10 Signals via front panel 160-pin male DIN 41612 connector, for pin Covered Bifurcated outs please refer to the operating manual. Max Hot Switch Voltage: 300VDC/250VAC* The connector includes a strain relief fixing for use with Pickering’s Breakdown Voltage: >500V cables. Max Power: 62.5VA, 60W from 30V to...
- Page 11 For further assistance, please contact your local Pickering sales office. Product Customization Pickering PXI modules are designed and manufactured on our own Mating Connectors & Cabling flexible manufacturing lines, giving complete product control and For connection accessories for the 40-618A module please refer enabling simple customization to meet very specific requirements.
- Page 12 We provide a full range of supporting cable and connector solutions for all our switching products—20 connector families with 1200+ products. We offer everything from simple mating connectors to complex cables assemblies and terminal blocks. All assemblies are manufactured by Pickering and are guaranteed to mechanically and electrically mate to our modules. Connectors & Backshells...
- Page 13 Source Switching Module – 40-618A Programming Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os...
- Page 14 SECTION 1 - TECHNICAL SPECIFICATION pickering THIS PAGE INTENTIONALLY BLANK SOURCE SWITCHING MODULE 40-618A Page 1.6...
-
Page 15: Functional Description
BANK 1 BANK 2 BANK 12 SPST UNCOMMITTED RELAY CONTACTS A1 C1 A3 C3 A4 C4 A5 C5 A43 C43 A44 C44 A2 C2 Figure 2.1 - Source Switching Module 40-618A: Functional Block Diagram SOURCE SWITCHING MODULE 40-618A Page 2.1... - Page 16 SECTION 2 - TECHNICAL DESCRIPTION pickering THIS PAGE INTENTIONALLY BLANK SOURCE SWITCHING MODULE 40-618A Page 2.2...
-
Page 17: Installation
Modular products require installation in a suitable PXI/LXI chassis. The module is designed for indoor use only. PREOPERATION CHECKS (UNPACKING) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident. -
Page 18: Hardware Installation
For a system comprising more than one chassis, turn ON the last chassis in the system followed by the penultimate, etc, and finally turn ON the external controller or chassis containing the system controller. 9. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up sequence. -
Page 19: Testing Operation
Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card. - Page 20 SECTION 3 - INSTALLATION pickering THIS PAGE INTENTIONALLY BLANK SOURCE SWITCHING MODULE 40-618A Page 3.4...
-
Page 21: Programming Guide
SECTION 4 - PROGRAMMING GUIDE PROGRAMMING OPTIONS FOR PICKERING INTERFACES PXI MODULES For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: https://www.pickeringtest.com/support/software-drivers-and-downloads... -
Page 22: Module Architecture
MODULE ARCHITECTURE 40-618A: SOURCE SWITCHING MODULE The 40-618A-021 Source Switching Module utilises an array of 92 changeover relays (Type 2 Form C) as single pole relays. Effectively in the default state all relays are open circuit. Energising a particular relay creates a signal path between the common terminal and the corresponding channel terminal(s). - Page 23 SECTION 4 - PROGRAMMING GUIDE pickering TABLE 4.1 - Multiplexer Module 40-618A: Sub-Units 40-618A Sub-Unit Cross Reference Bank Bank Function Function RL25 SPST RL49 SPST RL71 RL26 SPST RL50 SPST RL72 RL27 SPST RL51 SPST RL73 RL28 SPST RL52 SPST...
-
Page 24: Programming The Module
SECTION 4 - PROGRAMMING GUIDE pickering PROGRAMMING THE MODULE 40-618A Here are some simple examples of using the drivers with the 40-618A Multiplexer module. Using PILPXI To operate a relay the user could use the simple OpBit command or the WriteSub commands OpBit DWORD sub_unit = 1;... - Page 25 Com9 10.3 10.4 Com10 10.1 10.2 11.4 Com11 11.1 11.2 11.3 Com12 12.1 12.2 12.3 12.4 Figure 5.1 - Source Switching Module 40-618A-001: Pinout (160-pin DIN 41612 male connector viewed from front of module) SOURCE SWITCHING MODULE 40-618A Page 5.1...
- Page 26 SECTION 5 - CONNECTOR INFORMATION pickering THIS PAGE INTENTIONALLY BLANK SOURCE SWITCHING MODULE 40-618A Page 5.2...
-
Page 27: Trouble Shooting
PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible... - Page 28 SECTION 6 - TROUBLE SHOOTING pickering THIS PAGE INTENTIONALLY BLANK SOURCE SWITCHING MODULE 40-618A Page 6.2...
-
Page 29: Maintenance Information
For PXI modules which are supported in one of Pickering Interfaces’ Modular LXI Chassis (such as the 60-102B and 60-103B) no module software update is required. If the module was introduced after the LXI chassis was manufactured the module may not be recognized, in this case the chassis firmware may need upgrading. - Page 30 SECTION 7 - MAINTENANCE INFORMATION pickering TABLE 7.1 - Source Switching Module 40-618A: Relay Numbering 40-618A Switch Function/Relay Cross Reference Bank Bank Function Function RL25 SPST RL49 SPST RL71 RL26 SPST RL50 SPST RL72 RL27 SPST RL51 SPST RL73 RL28...
- Page 31 RL67 RL68 RL69 RL70 RL71 RL72 RL73 RL74 RL75 RL76 RL77 RL78 RL79 RL80 RL81 RL82 RL83 RL84 RL85 RL86 RL87 RL88 RL89 RL90 RL91 RL92 Figure 7.1 - Source Switching Module: Component Layout SOURCE SWITCHING MODULE 40-618A Page 7.3...
- Page 32 SECTION 7 - MAINTENANCE INFORMATION pickering THIS PAGE INTENTIONALLY BLANK SOURCE SWITCHING MODULE 40-618A Page 7.4...
