  • Page 1 40-262 User Manual PXI RTD Simulator Module pickeringtest.com Issue 4.5 January 2020...
  • Page 2 © COPYRIGHT (2020) PICKERING INTERFACES. ALL RIGHTS RESERVED. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
  • Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

  • Page 4: Product Safety

    If this product is heavy reference should be made to the safety instructions for provisions of lifting and moving. STATIC SENSITIVE To indicate that static sensitive devices are present and handling precautions should be followed. REED RELAY MODULE 40-110/115/120/125 RTD SIMULATOR MODULE 40-262 Page (IV) Page (IV)

  • Page 5: Table Of Contents

    Pre Operation Checks ............3.1 Hardware Installation ............3.2 Software Installation .............3.2 Testing Operation ..............3.3 Section 4 Programming Guide ..............4.1 Programming Options For Pickering PXI Modules ....4.1 Module Architecture ..............4.2 Programming The Module ............4.2 Using The Soft Front Panel ..........4.6 Section 5 Connector Information ..............5.1 Section 6 Trouble Shooting .................6.1...
  • Page 6 THIS PAGE INTENTIONALLY BLANK RTD SIMULATOR MODULE 40-262 Page (VI)

  • Page 7: Warnings And Cautions

    Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale. This module must not be used for the switching of Mains Circuits. For the switching of voltages up to the module’s full specification, Secondary Circuit power supplies and the Device Under Test must...
  • Page 8 • For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on the front of the unit. RTD SIMULATOR MODULE 40-262 Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579...

  • Page 9: Technical Specification

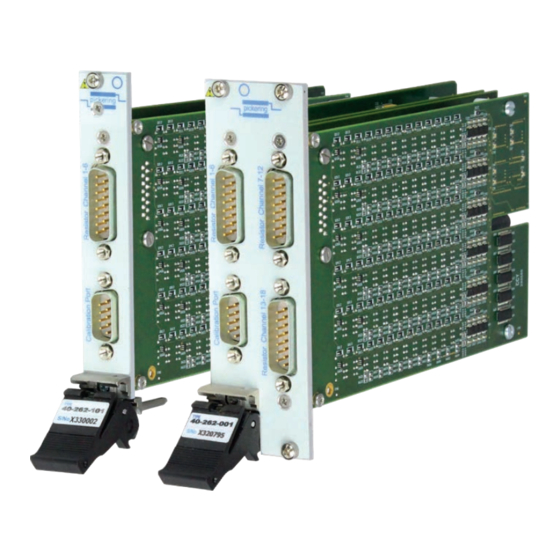

    • Supported by PXI or LXI Chassis • 3 Year Warranty The 40-262 is a PXI module with 6, 12 or 18 channels providing a. cost effective method of simulating PT100 or PT1000 RTDs. The channels also have a short and open circuit setting to simulate faulty wiring to a sensor.
  • Page 10 D-Type connector. For pin outs refer to the operating manual. mains supply and safety earth. The 40-262 uses innovative techniques which are the subject † The total operate time when setting a resistance may vary of protected Pickering Interfaces intellectual property rights.
  • Page 11 (calibration leads capable of supporting a greater number of contact your local sales office to discuss. modules are available, please contact sales office) Mating Connectors & Cabling For connection accessories for the 40-262 please refer to the 90-010D 15-pin D-Type and 90-003D...
  • Page 12 We provide a full range of supporting cable and connector solutions for all our switching products—20 connector families with 1200+ products. We offer everything from simple mating connectors to complex cables assemblies and terminal blocks. All assemblies are manufactured by Pickering and are guaranteed to mechanically and electrically mate to our modules. Connectors & Backshells...
  • Page 13 RTD Simulator Module – 40-262 Programming Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os...
  • Page 14 SECTION 1 - TECHNICAL SPECIFICATION pickering THIS PAGE INTENTIONALLY BLANK RTD SIMULATOR MODULE 40-262 Page 1.6...

  • Page 15: Technical Description

    & Control Drivers Logic U21 & U1 to U20 U57 to U60 & U51, U52 Chan +3.3V Chan 6, 12 or 18 Channel RTD Simulator Figure 2.1 - RTD Simulator Module 40-262: Functional Block Diagram RTD SIMULATOR MODULE 40-262 Page 2.1...

  • Page 16: Guidance On Using The Module

    The 40-262 responds directly to a request for a particular value of resistance and is therefore very easy to use in a system. Applications programs are easily generated to convert, for example, temperature requests to resistance values for different types of RTD that are to be emulated.
  • Page 17 The calibration port is designed so that it can be daisy chained with other resistor modules (for example multiple modules of 40-262). A cable assembly can be purchased as an accessory for this purpose or the user can make their own as shown in Figure 2.3.
  • Page 18 SECTION 2 - TECHNICAL DESCRIPTION pickering THIS PAGE INTENTIONALLY BLANK RTD SIMULATOR MODULE 40-262 Page 2.4...

  • Page 19: Installation

    Modular products require installation in a suitable PXI/LXI chassis. The module is designed for indoor use only. PREOPERATION CHECKS (UNPACKING) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident.

  • Page 20: Hardware Installation

    For a system comprising more than one chassis, turn ON the last chassis in the system followed by the penultimate, etc, and finally turn ON the external controller or chassis containing the system controller. 9. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up sequence.

  • Page 21: Testing Operation

    Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card.
  • Page 22 SECTION 3 - INSTALLATION pickering THIS PAGE INTENTIONALLY BLANK RTD SIMULATOR MODULE 40-262 Page 3.4...

  • Page 23: Programming Guide

    SECTION 4 - PROGRAMMING GUIDE PROGRAMMING OPTIONS FOR PICKERING INTERFACES PXI MODULES For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: https://www.pickeringtest.com/support/software-drivers-and-downloads...

  • Page 24: Module Architecture

    Fine Control 10 Digital Fine Control 11 Digital Fine Control 12 Digital Fine Control 13 Digital Fine Control 14 Digital Fine Control 15 Digital Fine Control 16 Digital Fine Control 17 Digital Fine Control 18 RTD SIMULATOR MODULE 40-262 Page 4.2...
  • Page 25 Fine Control 4 Digital Fine Control 5 Digital Fine Control 6 Digital Fine Control 7 Digital Fine Control 8 Digital Fine Control 9 Digital Fine Control 10 Digital Fine Control 11 Digital Fine Control 12 RTD SIMULATOR MODULE 40-262 Page 4.3...
  • Page 26 Resistor 4 Resistor Resistor 5 Resistor Resistor 6 Ground Reference Monitor Digital Fine Control 1 Digital Fine Control 2 Digital Fine Control 3 Digital Fine Control 4 Digital Fine Control 5 Digital Fine Control 6 RTD SIMULATOR MODULE 40-262 Page 4.4...

  • Page 27: Programming The Module

    SECTION 4 - PROGRAMMING GUIDE pickering PROGRAMMING THE MODULE Resistance Control For the 40-262, resistance is controlled not by the normal sub-units but by using the SetResistance() functions in the driver. In pilpxi: DWORD PIL_ResSetResistance(DWORD card, DWORD channel, DWORD Mode, double...
  • Page 28 Bit 3 – monitor fine section So, to monitor a resistor, the user should set the following bits: Resistor Entire Resistor Coarse Section Fine Section All Modules 40-262-001, 40-262-002, 40-262-201 & 40-262-202, 40-262-001 & 40-262-002 only RTD SIMULATOR MODULE 40-262 Page 4.6...

  • Page 29: Using The Soft Front Panel

    You can select the appropriate device from the table and click the “OK“ button, or simply double- click on the device you want to use. You can also refresh the table by clicking the “Discover“ button at the bottom of the window. RTD SIMULATOR MODULE 40-262 Page 4.7...
  • Page 30 At the bottom of the control window, there are two addition buttons: Information and Status. Click on “Information“ to obtain information about the card currently being controlled. Next to the Status button is a display of the current status of the card, click on “Status“ to update this display. RTD SIMULATOR MODULE 40-262 Page 4.8...
  • Page 31 “About“. The About window displays the cards supported by the Soft Front Panel and also the required assemblies. You can also get System information by clicking on the “System Info” button. Alternately, F1 displays the help file, for more help please contact support@pickeringtest.com. RTD SIMULATOR MODULE 40-262 Page 4.9...
  • Page 32 SECTION 4 - PROGRAMMING GUIDE pickering THIS PAGE INTENTIONALLY BLANK RTD SIMULATOR MODULE 40-262 Page 4.10...

  • Page 33: Connector Information

    SECTION 5 - CONNECTOR INFORMATION pickering SECTION 5 - CONNECTOR INFORMATION pickering pickering pickering 40-262-101, 40-262-201, 40-262-001, 40-262-102 40-262-202 40-262-002 Figure 5.1 - RTD Simulator Module 40-262 - 6, 12 and 18 channel versions: Connector Positions RTD SIMULATOR MODULE 40-262 Page 5.1...
  • Page 34 V,Ω+, Source+ V,Ω+, Source+ I+, Sense+ I+, Sense+ V,Ω-, Source- V,Ω-, Source- I-, Sense- I-, Sense- Do Not Connect Figure 5.3 - Calibration Port Connector Pinouts (9-pin male D-type connector viewed from front of module) RTD SIMULATOR MODULE 40-262 Page 5.2...
  • Page 35 Pin No. Signal Name FP_GND CH18_OUT CH18_IN CH17_OUT CH17_IN CH16_OUT CH16_IN CH15_OUT CH15_IN CH14_OUT CH14_IN CH13_OUT CH13_IN Figure 5.5 - Resistor Channel 13-18 Connector Pinouts (15-pin male D-type connector viewed from front of module) RTD SIMULATOR MODULE 40-262 Page 5.3...
  • Page 36 SECTION 5 - CONNECTOR INFORMATION pickering THIS PAGE INTENTIONALLY BLANK RTD SIMULATOR MODULE 40-262 Page 5.4...

  • Page 37: Trouble Shooting

    PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible...
  • Page 38 SECTION 6 - TROUBLE SHOOTING pickering THIS PAGE INTENTIONALLY BLANK RTD SIMULATOR MODULE 40-262 Page 6.2...

  • Page 39: Maintenance Information

    For PXI modules which are supported in one of Pickering Interfaces’ Modular LXI Chassis (such as the 60-102B and 60-103B) no module software update is required. If the module was introduced after the LXI chassis was manufactured the module may not be recognized, in this case the chassis firmware may need upgrading.

  • Page 40: Verification & Adjustment Procedure

    SECTION 7 - MAINTENANCE INFORMATION pickering VERIFICATION & ADJUSTMENT PROCEDURE This section provides a procedure for verifying that the 40-262 is performing to specification and guidance on adjustment. In normal use the 40-262 does not require regular adjustment. Where procedures require regular verification checks of instrumentation in a system Pickering Interfaces recommend a 1 year interval between tests.
  • Page 41 Agilent 34410A or 34411A • A cable assembly to connect the DMM to the 40-262. This can be constructed by the user or the user can purchase a ready made cable from Pickering Interfaces suitable for connecting to the Calibration Port connector.
  • Page 42 V and I leads of the 4 terminal measurement system are joined as close to the mating 15-pin connector as possible. In the case of the 12 or 18-channel 40-262, each bank of 6 channels would be...

  • Page 43: Verification Test Results

    In the unlikely event that adjustment of the 40-262 is required we recommend returning it to Pickering Interfaces. Adjustment of the 40-262 requires the use of a high performance DMM and an automated program in order to maintain its accuracy in the event of an adjustment being required to improve performance.
  • Page 44 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.2 - Calibration Test Results For 40-262-001, 40-262-101 & 40-262-201 Serial Number: Channel Number: Date of Test: Operator’s Name: Test Equipment Used: Resistance Result (delete Measured Value Maximum Minimum Setting as appropriate) Short (0Ω) 0.2Ω...
  • Page 45 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.3 - Calibration Test Results For 40-262-002, 40-262-102 & 40-262-202 Serial Number: Channel Number: Date of Test: Operator’s Name: Test Equipment Used: Resistance Result (delete Measured Value Maximum Minimum Setting as appropriate) Short (0Ω) 0.2Ω...
  • Page 46 SECTION 7 - MAINTENANCE INFORMATION pickering THIS PAGE INTENTIONALLY BLANK RTD SIMULATOR MODULE 40-262 Page 7.8...

This manual is also suitable for:
