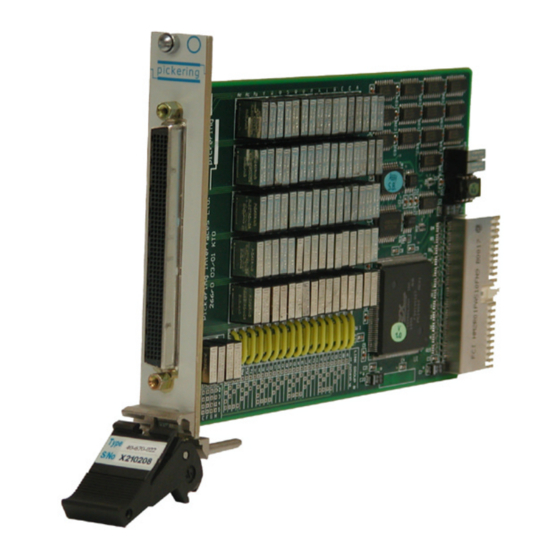

Very high density multiplexer module
Hide thumbs Also See for 40-670:

Advertisement

Quick Links

sales@artisantg.com
artisantg.com
(217) 352-9330 |
|
Click HERE
Find the Pickering 40-670A-022-198/1 at our website:

Advertisement

loading
Need help?

Need help?

Do you have a question about the 40-670 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pickering 40-670

Summary of Contents for Pickering 40-670

  • Page 1 (217) 352-9330 | Click HERE Find the Pickering 40-670A-022-198/1 at our website:...
  • Page 2 +49 7841 66 49 10 Tel: +46 340-69 06 69 Fax: +44 (0)1255-475058 Fax: 541 471 8828 Fax: +49 7841 66 49 12 Fax: +46 340-69 06 68 E-Mail: sales@pickeringswitch.com E-Mail: ussales@pickeringswitch.com E-Mail: desales@pickeringswitch.com E-Mail: ndsales@pickeringswitch.com VERY HIGH DENSITY MULTIPLEXER MODULE 40-670 Page 1...
  • Page 3 © COPYRIGHT (2001) PICKERING INTERFACES. ALL RIGHTS RESERVED. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
  • Page 4 Warranty is on a return to factory basis, however, for most systems, the module may be replaced on a module exchange basis. A module will be delivered to the user and the faulty part returned to Pickering Interfaces on receipt.
  • Page 5 THIS PAGE INTENTIONALLY BLANK VERY HIGH DENSITY MULTIPLEXER MODULE 40-670 Page iv...

  • Page 6: Table Of Contents

    Connector Pin Outs............2.1 Section 3 Programming ..............3.1 Section 4 Fault Diagnosis..............4.1 Section 5 Technical Specication............5.1 Section 6 Parts List ................6.1 Section 7 Warnings and Cautions ............. 7.1 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670 Page v...
  • Page 7 THIS PAGE INTENTIONALLY BLANK VERY HIGH DENSITY MULTIPLEXER MODULE 40-670 Page vi...

  • Page 8: Introduction

    SECTION 1 - INTRODUCTION GENERAL The 40-670 range of Very High Density Multiplexer Modules which form part of the System 40 PXI Programmable Switching system feature a wide range of switching congurations. Typical applications include signal routing in ATE and data acquisition systems.
  • Page 9 Isolation Switch 40-670-022 198 Channel 1 Pole Multiplexer Isolation Switches 99.1 99.2 40-670-022 99 Channel 2 Pole Multiplexer 40-670-022 5 Channel 32 Pole Multiplexer Figure 1.1 - Multiplexer Module (40-670): Schematic Diagrams Page 1.2 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670...
  • Page 10 COMPACT PCI REGISTERS U8 TO U20 CONNECTOR PCI BRIDGE TERMINATING MODULE RESISTORS CONFIGURATION R4 TO R15 U5, U6 AND U7 PCI BRIDGE CONFIGURATION Figure 1.2 - Multiplexer Module (40-670): Functional Block Diagram Page 1.3 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670...
  • Page 11 SECTION 1 - INTRODUCTION pickering THIS PAGE INTENTIONALLY BLANK Page 1.4 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670...

  • Page 12: Connector Pin Outs

    SECTION 2 - PIN OUTS pickering SECTION 2 - CONNECTOR PIN OUTS Figures 2.1 to 2.6 provide pin outs for the Multiplexer Modules in the 40-670 model range. 10.2 10.1 11.2 11.1 12.2 12.1 13.2 13.1 14.2 14.1 15.2 15.1 16.2...
  • Page 13 10.2 10.1 5.10 10.4 10.3 5.12 5.11 10.6 10.5 5.14 5.13 10.8 10.7 5.16 5.15 10 CHANNEL 8 POLE 5 CHANNEL 16 POLE 40-670-021-10/8 40-670-021-5/16 Figure 2.2 - Multiplexer Module: Pin Outs Page 2.2 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670...
  • Page 14 98.2 98.1 97.2 97.1 49.4 49.3 49.2 49.1 99.2 99.1 198 CHANNEL 1 POLE 99 CHANNEL 2 POLE 49 CHANNEL 4 POLE 40-670-022-198/1 40-670-022-99/2 40-670-022-49/4 Figure 2.3 - Multiplexer Module: Pin Outs Page 2.3 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670...
  • Page 15 23.6 23.5 24.4 24.3 24.2 24.1 24.8 24.7 24.6 24.5 24 CHANNEL 8 POLE 5 CHANNEL 32 POLE 10 CHANNEL 16 POLE 40-670-022-24/8 40-670-022-10/16 40-670-022-5/32 Figure 2.4 - Multiplexer Module: Pin Outs Page 2.4 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670...
  • Page 16 47.1 24.4 24.3 48.2 48.1 49.2 49.1 99 CHANNEL 1 POLE 49 CHANNEL 2 POLE 24 CHANNEL 4 POLE SCREENED SCREENED SCREENED 40-670-021-S-99/1 40-670-021-S-49/2 40-670-021-S-24/4 Figure 2.5 - Multiplexer Module: Pin Outs Page 2.5 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670...
  • Page 17 5.10 10.4 10.3 5.12 5.11 10.6 10.5 5.14 5.13 10.8 10.7 5.16 5.15 5 CHANNEL 16 POLE 10 CHANNEL 8 POLE SCREENED SCREENED 40-670-021-S-5/16 40-670-021-S-10/8 Figure 2.6 - Multiplexer Module: Pin Outs Page 2.6 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670...

  • Page 18: Programming

    SECTION 3 - PROGRAMMING pickering SECTION 3 - PROGRAMMING Please refer to the PXI Software manual for programming information. This manual is available on the Pickering Interfaces website at www.pickeringswitch.com. Page 3.1 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670...
  • Page 19 SECTION 3 - PROGRAMMING pickering THIS PAGE INTENTIONALLY BLANK Page 3.2 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670...
  • Page 20 SECTION 4 - FAILURE DIAGNOSIS There is no self-test facility provided on the 40-670 series Multiplexer Modules. Failure diagnosis is limited to identication of faulty relays. Relay Look-Up Tables will be provided at a later date. VERY HIGH DENSITY MULTIPLEXER MODULE 40-670...
  • Page 21 SECTION 4 - FAILURE DIAGNOSIS pickering THIS PAGE INTENTIONALLY BLANK Page 4.2 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670...
  • Page 22 Noise Level (0 to 1MHz in 50Ω System): < - 80dBm Operate Time: < 0.5ms Release Time: < 0.5ms Expected Life (Operations) Low power load: > 10 Full power load: > 10 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670 Page 5.1...
  • Page 23 SECTION 5 - SPECIFICATION pickering THIS PAGE INTENTIONALLY BLANK VERY HIGH DENSITY MULTIPLEXER MODULE 40-670 Page 5.2...

  • Page 24: Parts List

    SECTION 6 - PARTS LIST pickering SECTION 6 - PARTS LIST The following pages provide parts lists and a component layout diagram for the 40-670 Multiplexer Module. Page 6.1 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670...
  • Page 25 SECTION 6 - PARTS LIST pickering Table 6.1 provides a parts list and Figure 6.1 a component layout diagram for the 40-670 Multiplexer Module. TABLE 6.1 - Multiplexer Module Parts List y t i Page 6.2 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670...
  • Page 26 SECTION 6 - PARTS LIST pickering RL101 RL102 LINK AREA LINK AREA (FACTORY SET) (FACTORY SET) Figure 6.1 - Multiplexer Module: Component Layout Page 6.3 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670...
  • Page 27 SECTION 6 - PARTS LIST pickering THIS PAGE INTENTIONALLY BLANK Page 6.4 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670...

  • Page 28: Warnings And Cautions

    Outer clothing worn must be unable to generate static charges. Printed Circuit Boards (PCBs) fitted with these devices must be stored and transported in anti-static bags. Page 7.1 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670...
  • Page 29 NORMAL BREATHING Keep casualty at rest. Remove on a stretcher. Watch closely, particularly for difficulty in breathing. Lightly cover with blankets or other materials. MEDICAL ASSISTANCE MAY BE OBTAINED ON / AT....... Page 7.2 VERY HIGH DENSITY MULTIPLEXER MODULE 40-670...
