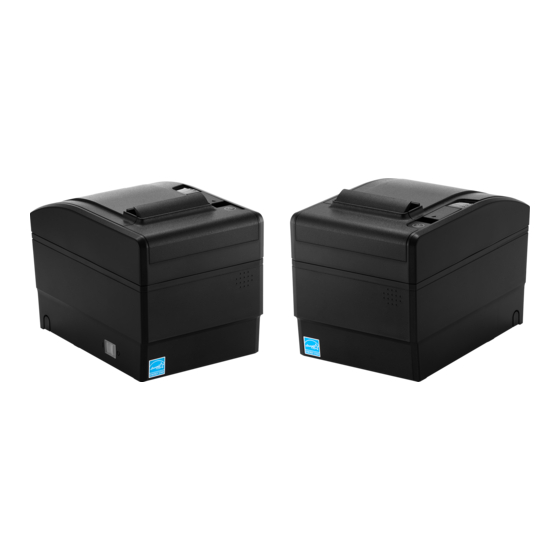

- Page 1 User’s Manual SRP-S320 THERMAL RECEIPT PRINTER Ver. 1.00 http://www.bixolon.com...
- Page 2 SRP-S320 Introduction SRP-S320 printers have been designed to be connected to various types of electronic devices such as POS (Point Of Sales), and computer peripheral devices. ※ The main features of the printer are as follows 1. THERMAL RECEIPT PRINTER 2.
- Page 3 SRP-S320 Safety Information Warning: Warnings must be heeded carefully in order to prevent serious physical harm. Caution: Cautions must be heeded in order to prevent minor injuries, equipment damage, or data loss. Symbol Information DC (Direct current) Error, Warning Paper Feeding...
-
Page 4: Table Of Contents
SRP-S320 Table of Contents 1. Installing Printer and Getting Started ................. 5 1-1 Unpacking ......................... 5 1-2 Interface ..........................6 1-2-1 USB Built-in ......................6 1-2-2 Ethernet Built-in..................... 7 1-2-3 Single Serial Interface Card(RS-232C) ..............8 1-2-4 Dual Serial Interface Card(RS-232C) ..............9 1-2-5 Wireless LAN Dual Interface Card .............. -
Page 5: Installing Printer And Getting Started
SRP-S320 1. Installing Printer and Getting Started 1-1 Unpacking • Check the following contents list, and contact your dealer for assistance if any item is missing or incorrect. - Product SRP-S320 - Standard Components Power Cord Installation Guide Partition 2ea - 5 - Ver. -
Page 6: Interface
SRP-S320 1-2 Interface • Connect the printer to the host computer using the right interface cable that complies with the specifications of the interface 1-2-1 USB Built-in Model: SRP-S320K USB Port Pin No. Signal Name Designation (Color) Function Shell... -
Page 7: Ethernet Built-In
SRP-S320 1-2-2 Ethernet Built-in Model: SRP-S320K Ethernet Port Pin No. Signal Name Designation (Color) Function WHITE ORANGE Transmit + ORANGE Transmit - WHITE GREEN Center tap BLUE WHITE BLUE GREEN WHITE BROWN Receive + BROWN Receive - - Information such as IP and Mac can be found by operating the function key. -
Page 8: Single Serial Interface Card(Rs-232C)
SRP-S320 1-2-3 Single Serial Interface Card(RS-232C) Model: SRP-S320SK Serial Port Pin No. Signal Name Direction Function Frame Ground Output Transmit Data Input Receive Data Output Ready To Send Input Clear To Send Signal Ground Output Data Terminal Ready After turning off the power switch of printer, connect and disconnect Caution the communication cable. -
Page 9: Dual Serial Interface Card(Rs-232C)
SRP-S320 1-2-4 Dual Serial Interface Card(RS-232C) Model: SRP-S320SDK RJ45 Serial Port Serial Port *Printer side DSUB 9pin RJ45 Signal Name Direction Function Pin No. Pin No. Output Transmit Data Input Receive Data Signal Ground Output Data Terminal Ready Input... -
Page 10: Wireless Lan Dual Interface Card
SRP-S320 1-2-5 Wireless LAN Dual Interface Card Model: SRP-S320WDK Wireless LAN Interface Card 1) Wireless LAN Communication Specifications Item Specifications Frequency 2.4GHz / 5GHz Protocol 802.11 a/b/g/n 2) Connecting Wireless LAN Printer can be connected to terminal devices with wireless LAN communication capability (PDA, PC, smartphone, tablet PC, etc.). -
Page 11: Bluetooth Interface Card
SRP-S320 1-2-6 Bluetooth Interface Card Model: SRP-S320B5K Bluetooth Interface Card 1) Bluetooth Communication Specifications Item Specifications Frequency 2.402~2.480 GHz Version 2) Bluetooth Connection Printer can be connected to terminal devices with Bluetooth communication capability (PDA, PC, smartphone, tablet PC, etc.) -
Page 12: B-Gate Interface Card
SRP-S320 1-2-7 B-GATE Interface Card Model: SRP-S320HiK USB A type: ①②③④ Pin No. Signal Name Designation (Color) Function Shell Shield Drain Cable Frame Ground VBUS Host Power WHITE Data Line (D-) GREEN Data Line (D+) BLACK Signal Ground Ethernet: ⓑ... - Page 13 SRP-S320 USB A connectors ①② can be used to connect the printer to supp orted peripheral devices. USB A connector ③ and USB Mini-B connector cannot be used at the same time. Please use only one of them. USB A connector ④ can be used to connect the printer to supporte d peripheral devices and supports battery charging.
-
Page 14: Connecting Power Supply
SRP-S320 1-3 Connecting Power Supply 1) Make sure the product is turned off before connecting the power supply. 2) Connect the power cable with the flat side pointing to the outside of the printer, as shown in the diagram below. -
Page 15: Reconfiguration Of Printer
SRP-S320 - Only use a power supply provided by Bixolon. Bixolon shall bear no responsibility for damage caused by using a third-party power supply. - Check the power supply’s label to check its electronic specs. - When removing the power supply, make sure you have a firm... -
Page 16: Installing & Replacing Paper
SRP-S320 1-5 Installing & Replacing Paper 1) Open the paper roll cover by Pulling the Cover-Open Lever. Do not open the print cover while the printer is operating, Caution otherwise the printer may be damaged. - 16 - Ver. 1.00... - Page 17 SRP-S320 2) Remove the empty paper roll and replace with a new one as shown in the image. Check the orientation of the roll paper when inserting it into the printer. Caution - 17 - Ver. 1.00...
- Page 18 SRP-S320 3) Pull out a small amount of paper as shown in the picture, and close the cover. - When closing the cover, hold down the center of printer cover firmly so that paper roll is loaded correctly. Caution - Make sure to use the specified paper only.
-
Page 19: Recommended Papers
SRP-S320 1-6 Recommended Papers - Iconex Sticky Media(USA): Classic: 9023-1253, 9023-1232(80mm), 9023-1823, 9023-1397(58mm), 9023-1233, 9023-1818(40mm) Classic High Tack: 9023-1254(80mm), 9023-1500(58mm), 9023-1258(40mm) Classic High Temp: 9023-1267, 9023-1463 (80mm), 9023-1269(40mm) Ultralite: 9023-1866(80mm), 9023-1410(58mm), 9023-1865(40mm) Classic High Tack Plus: 9023-1846(80mm) - Iconex Linerless Label(USA) Linerless Extreme: 9023-1873, 9023-1708(40mm) - MAX International Converters, Inc. -
Page 20: Using Printer Functions
SRP-S320 1-7 Using Printer Functions 1) Control Panel ○ FEED Button Press the FEED button once to advance paper one line. You can also hold down the FEED button to feed paper continuously. ○ PAPER LED This light indicates the near end of the paper roll. Install a new paper roll and the printer will continue printing. - Page 21 SRP-S320 2) Mounting Partition(40,58,62mm) Position the partition on the front and back grooves and press the center part to fix it as shown in the picture. The position to secure the partition varies depending on the type of paper. (Refer to the picture below.) 1.
-
Page 22: Setting Volume
SRP-S320 1-8 Setting Volume • Use a cross-head screwdriver to adjust the volume. To mute the volume, turn it counter-clockwise all the way. Caution 1-9 Taken Sensor Function • When it comes to Taken Sensor, it will detect the paper not to feed next paper before user detach it. -
Page 23: Removing Paper Jam
SRP-S320 1-10 Removing Paper Jam 1) When a paper jam occurs, turn the printer OFF and then back ON, open the cover, and remove the jammed paper. ※ In case of a minor jam, it may be possible that the operating blade returns to the original position and cover can be opened simply by turning the printer OFF and then back ON. -
Page 24: Self-Test
SRP-S320 2. Self-Test The self-test checks whether the printer has any problems. If the printer does not function properly, contact your dealer. The self-test procedure is as follows: 1) Make sure paper roll has been installed properly. 2) Turn on the power while holding down the FEED button and the self-test begins. - Page 25 SRP-S320 • If “VMSM Selection” is selected (1) The following lines will be printed when the VMSM opens. ** VMSM Selection ** 0 : Exit and reboot printer 1 : Print current settings 2 : Set Print Density 3 : Set Print Speed...
-
Page 26: Hexadecimal Dumping
SRP-S320 3. Hexadecimal Dumping This function allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you turn on the hexadecimal dump function, the printer prints all commands and data in hexadecimal format along with a guide section to help you find specific commands. -
Page 27: Cleaning Printer
SRP-S320 4. Cleaning Printer Paper dust inside the printer may lower the print quality. In this case clean the printer as follows. 1) Open the printer cover and remove the paper currently in use. 2) Residue or contamination of printer head should be wiped out by alcohol for medical. -
Page 28: Specifications
SRP-S320 5. Specifications Printing Method Thermal printing Dot Density 203 dpi (8dots/mm) 80mm 72mm 62mm 60mm Paper Width / Printing Width 58mm 48mm 40mm 32mm 79.5 ±0.5mm, 61.5 ±0.5mm, Paper Width 57.5 ±0.5mm, 39.5 ±0.5mm 48(Font A), 64(Font B), 64(Font C) No. - Page 29 BIXOLON Co., Ltd. The information contained herein is designed only for use with this BIXOLON product. BIXOLON is not responsible for any direct or indirect damages, arising from or related to use of this information.
- Page 30 SRP-S320 Compliance information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 31 SRP-S320 Revision history Ver. Date Page Description 1.00 21.10.20 - 31 - Ver. 1.00...
