Pickering 42-860A User Manual

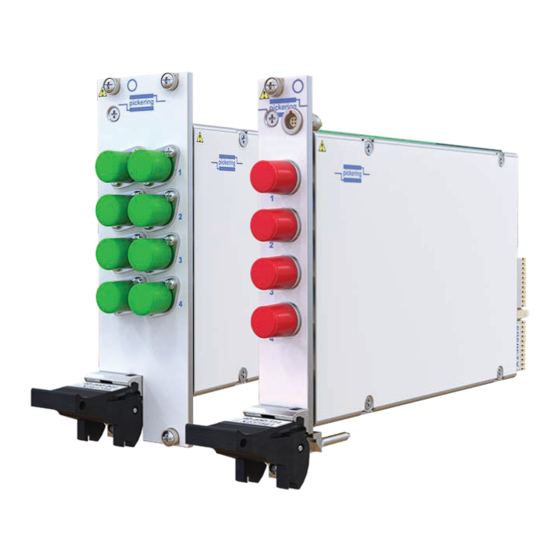

Pxi/pxie mems fiber optic insert/bypass switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
40/42-860A User Manual
PXI/PXIe MEMS Fiber Optic Insert/Bypass Switch
pickeringtest.com
Issue 1.3 November 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 42-860A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pickering 42-860A

Summary of Contents for Pickering 42-860A

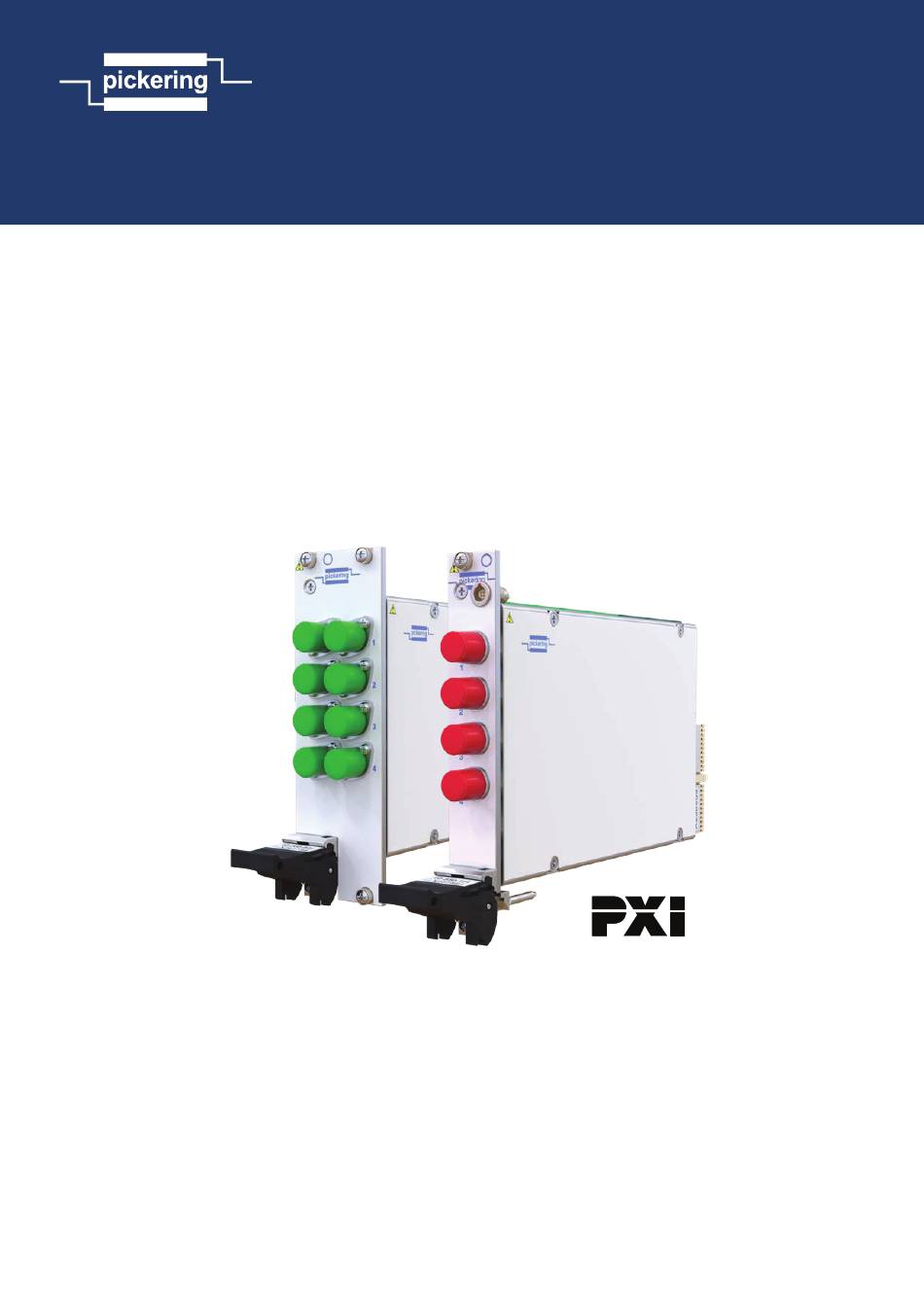

  • Page 1 40/42-860A User Manual PXI/PXIe MEMS Fiber Optic Insert/Bypass Switch pickeringtest.com Issue 1.3 November 2022...
  • Page 2 © COPYRIGHT (2022) PICKERING INTERFACES. ALL RIGHTS RESERVED. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
  • Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

  • Page 4: Product Safety

    LASER PRODUCT This product is capable of switching laser optical signals. STATIC SENSITIVE To indicate that static sensitive devices are present and handling precautions should be followed. REED RELAY MODULE 40-110/115/120/125 MEMS FIBER OPTIC INSERT/BYPASS SWITCH 40/42-860A Page (IV) Page (IV)

  • Page 5: Table Of Contents

    Pre Operation Checks ............3.1 Hardware Installation ............3.2 Software Installation .............3.2 Testing Operation ..............3.3 Section 4 Programming Guide ..............4.1 Programming Options For Pickering PXI/PXIe Modules ...4.1 Module Architecture ..............4.2 Programming The Module ............4.3 Section 5 Connector Information ..............5.1 Section 6 Trouble Shooting .................6.1 Section 7 Maintenance Information ............7.1...
  • Page 6 THIS PAGE INTENTIONALLY BLANK MEMS FIBER OPTIC INSERT/BYPASS SWITCH 40/42-860A Page (VI)

  • Page 7: Warnings And Cautions

    Unused slots in the PXI/LXI chassis are populated with blanking plates to prevent access to user I/O signals that may be present. Blanking panels are available to order from Pickering in a variety of slot widths. If the product is not used in this manner for example by using an extender card then additional care must be taken to avoid contact with exposed signals.
  • Page 8 I/O ports. • For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on the front of the unit. MEMS FIBER OPTIC INSERT/BYPASS SWITCH 40/42-860A REED RELAY MODULE 40-110/115/120/125 Page (VIII)
  • Page 9 Hardware Interlock Option y 3 Year Warranty The 40-860A (PXI) and 42-860A (PXIe) are 2x2 insert/bypass Pickering can construct custom optical systems to MEMS fiber optic switches available in single, dual, triple or customers precise requirements. We have a large range...
  • Page 10 0.05 dB Max 40-860A - 3 U PXI (CompactPCI card). Single or dual slot as indicated in Product Order Codes. Power Requirements - 40-860A 42-860A - 3 U PXIe, compatible with PXIe hybrid slot. Single +3.3 V +5 V +12 V -12 V or dual slot as indicated in Product Order Codes.
  • Page 11 Triple 2 40-860A-432 ─ Channel ─ 42-860A-332 MU (mini SC) PXIe ─ 42-860A-432 ─ MU (mini SC) 40-860A-342 Quad 2 40-860A-442 ─ Channel 42-860A-342 ─ MU (mini SC) PXIe ─ 42-860A-442 pickeringtest.com MEMS FIBER OPTIC INSERT/BYPASS SWITCH 40/42-860A Page 1.3...
  • Page 12 PXIe MU (mini SC) Product Customization Support Products Interlock Connectors Pickering modules are designed and manufactured on our own flexible manufacturing lines, giving complete product For modules with the hardware interlock option control and enabling simple customization to meet very (40/42-860A-xx2-HI) spare/replacement connectors can specific requirements.
  • Page 13 We provide a full range of supporting cable and connector solutions for all our switching products—20 connector families with 1200+ products. We offer everything from simple mating connectors to complex cables assemblies and terminal blocks. All assemblies are manufactured by Pickering and are guaranteed to mechanically and electrically mate to our modules. Connectors & Backshells...
  • Page 14 MEMS Fiber Insert/Bypass Switch, 40/42-860A Programming Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os...

  • Page 15: Technical Description

    The drivers are addressed by PCI bridge U1, to output the required signal. Module configuration and setup information for the PCI bridge is stored in Serial EPROM devices. PXI/PXIe Fiber Optic Insert/Bypass Switch Module 40/42-860A Memory U9-10 Configuration...

  • Page 16: Hardware Interlock

    HARDWARE INTERLOCK The 40/42-860A-xxx-HI modules have an interlock feature that can be used to return the optical switches (assuming they are fully functional) to their default unpowered state if the interlock connector is not in place or if the connection between the two interlock pins is open-circuit.
  • Page 17 Status Status Status PXI Gnd PXI Gnd PXI Gnd To Other Modules With Hardware Interlock Modules’ Enables Daisy-Chained From a Master Figure 2.2 - 40/42-860A-xxx-HI Modules - Use of Hardware Interlock Option MEMS FIBER OPTIC INSERT/BYPASS SWITCH 40/42-860A Page 2.3...
  • Page 18 SECTION 2 - TECHNICAL DESCRIPTION pickering THIS PAGE INTENTIONALLY BLANK MEMS FIBER OPTIC INSERT/BYPASS SWITCH 40/42-860A Page 2.4...

  • Page 19: Installation

    Modular products require installation in a suitable PXI/PXIe/LXI chassis. The module is for indoor use only. PREOPERATION CHECKS (UNPACKING) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident.

  • Page 20: Hardware Installation

    For a system comprising more than one chassis, turn ON the last chassis in the system followed by the penultimate, etc, and finally turn ON the external controller or chassis containing the system controller. 9. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up sequence.

  • Page 21: Testing Operation

    Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card.
  • Page 22 SECTION 3 - INSTALLATION pickering THIS PAGE INTENTIONALLY BLANK MEMS FIBER OPTIC INSERT/BYPASS SWITCH 40/42-860A Page 3.4...

  • Page 23: Programming Guide

    SECTION 4 - PROGRAMMING GUIDE PROGRAMMING OPTIONS FOR PICKERING INTERFACES PXI/PXIe MODULES For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: https://www.pickeringtest.com/support/software-drivers-and-downloads...

  • Page 24: Module Architecture

    MODULE ARCHITECTURE The 40/42-860A is an insert/bypass optical switch module with one, two, three or four separate banks using MEMS switches. In the default unpowered state, the 1 to 3 and 2 to 4 signal paths are selected. Energising a particular MEMS switch breaks the 1 to 3 and 2 to 4 signal paths and creates paths between 1 to 4 and 2 to 3.

  • Page 25: Programming The Module

    PROGRAMMING THE MODULE Here are examples of using the drivers with the 40/42-860A-x22 (dual insert/bypass switch) module. The “default state” is with signal paths between 1 to 3 and 2 to 4 and the “energised state” is with signal paths between 1 to 4 and 2 to 3.
  • Page 26 SECTION 4 - PROGRAMMING GUIDE pickering THIS PAGE INTENTIONALLY BLANK MEMS FIBER OPTIC INSERT/BYPASS SWITCH 40/42-860A Page 4.4...

  • Page 27: Connector Information

    Single Insert/Bypass Fiber Optic Switch pickering pickering pickering pickering pickering 40/42-860A-012 40/42-860A-212 40/42-860A-312 40/42-860A-412 40/42-860A-512 (FC/APC) (SC/PC) (MU) (LC) (ST) 40/42-860A-112 40/42-860A-212-M (FC/PC) (SC) Figure 5.1 - Single Insert/Bypass Fiber Optic Switch Module 40/42-860A: Connector Positions MEMS FIBER OPTIC INSERT/BYPASS SWITCH 40/42-860A Page 5.1...
  • Page 28 Dual Insert/Bypass Fiber Optic Switch pickering pickering pickering pickering pickering 40/42-860A-022 40/42-860A-222 40/42-860A-322 40/42-860A-422 40/42-860A-522 (FC/APC) (SC/PC) (MU) (LC) (ST) 40/42-860A-122 40/42-860A-222-M (FC/PC) (SC) Figure 5.2 - Dual Insert/Bypass Fiber Optic Switch Module 40/42-860A: Connector Positions MEMS FIBER OPTIC INSERT/BYPASS SWITCH 40/42-860A Page 5.2...
  • Page 29 Figure 5.3 - Pinout: Hardware Interlock Connector Applicable to 40/42-860A-xxx-HI Modules With Hardware Interlock Option (4-pin 00 Series Female Connector Viewed From Front of Module) Note: the maximum conductor size for the interlock connector is 30AWG.
  • Page 30 SECTION 5 - CONNECTOR INFORMATION pickering THIS PAGE INTENTIONALLY BLANK MEMS FIBER OPTIC INSERT/BYPASS SWITCH 40/42-860A Page 5.4...

  • Page 31: Trouble Shooting

    PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible...
  • Page 32 SECTION 6 - TROUBLE SHOOTING pickering THIS PAGE INTENTIONALLY BLANK MEMS FIBER OPTIC INSERT/BYPASS SWITCH 40/42-860A Page 6.2...

  • Page 33: Maintenance Information

    For PXI modules which are supported in one of Pickering Interfaces’ Modular LXI Chassis (such as the 60-102B and 60-103B) no module software update is required. If the module was introduced after the LXI chassis was manufactured the module may not be recognized, in this case the chassis firmware may need upgrading.
  • Page 34 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.1 - Fiber Optic Insert/Bypass Switch Module 40/42-860A: Switch Numbering Switch No. Switch No. Signal Path 40/42-860A-x12 40/42-860A-x22 1 to 3 & 2 to 4 (default) 1 to 4 & 2 to 3 1 to 3 &...
